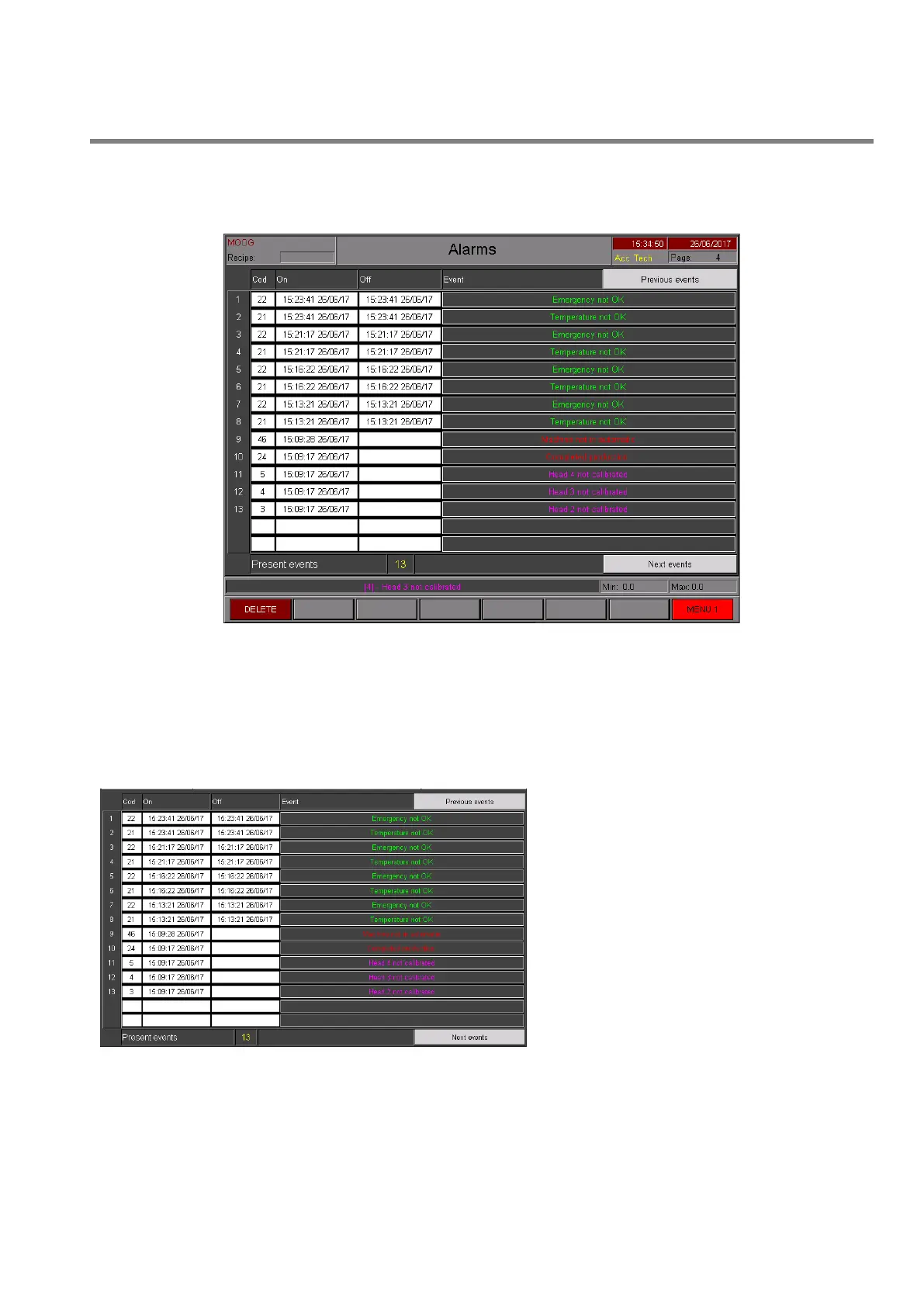

4.18 Alarms.
Figure 114
Alarms: Alarms page.
Access: From Main Manu 1 with key F7.
Use: Display alarms from PLC and from system.
4.18.1 Definitions alarms parameters.
Figure 115
Colours: There are two types of colours that
differentiate the importance of the alarms. (red
used for important errors and purple used for less
important errors)
Cod: Number code alarm.
On: Alarm activation Time.
Off: Alarm deactivation Time.
Event: Alarm description displayed in selected
language.
Present events: Number of the present events.
Previous events: it indicates that there are some previous alarms in the list
Next events: it indicates that there are some following alarms in the list
