4.14.2 Digital Output.

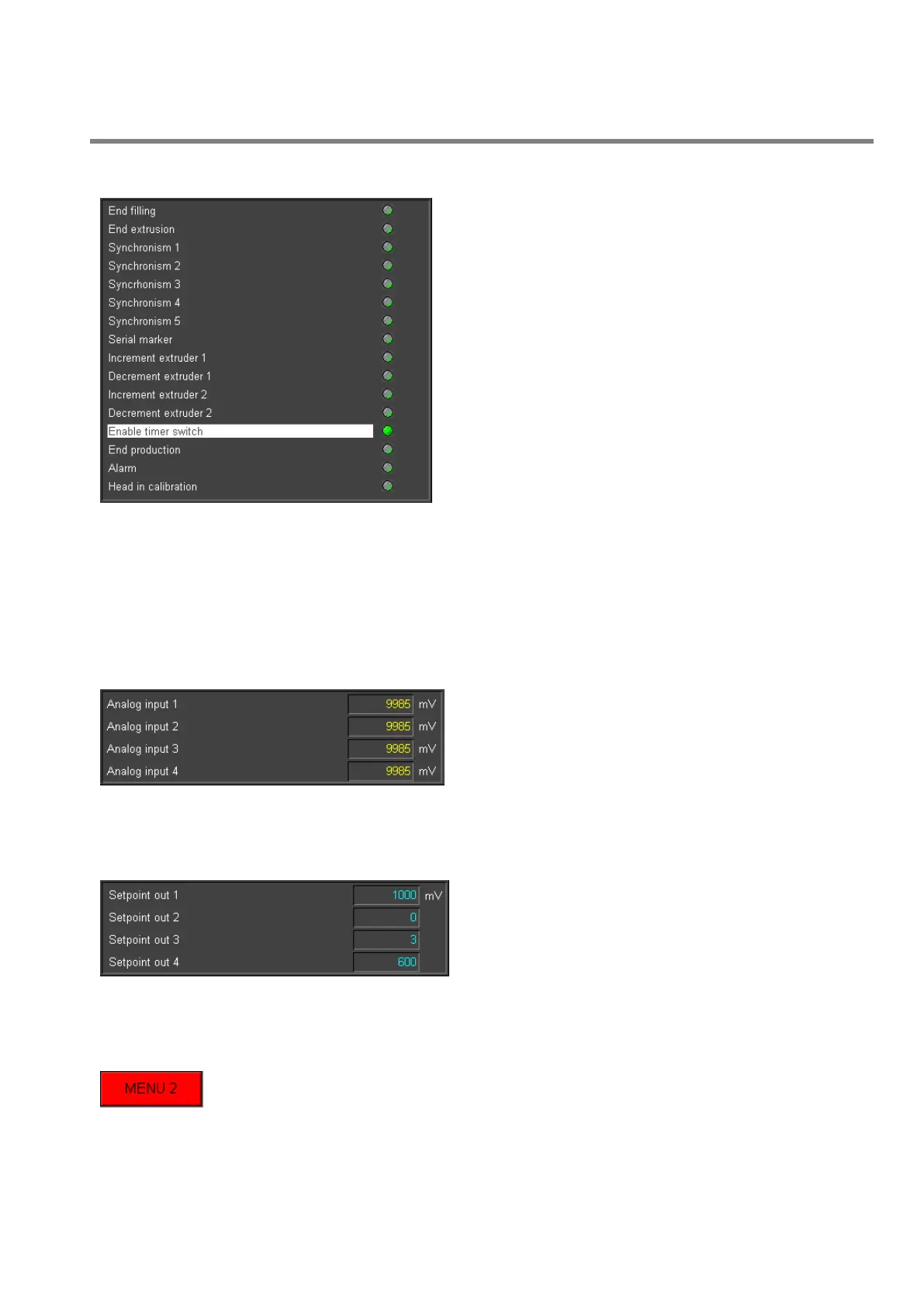

Figure 101
End filling: Digital Output number 1.
End extrusion: Digital Output number 2.
Synchronism 1: Digital Output number 3.
Synchronism 2: Digital Output number 4.
Synchronism 3: Digital Output number 5.
Synchronism 4: Digital Output number 6.
Synchronism 5: Digital Output number 7.
Serial marker: Digital Output number 8.
Increment extruder 1: Digital Output number 9.
Decrement extruder 1: Digital Output number 10.
Increment extruder 2: Digital Output number 11.
Decrement extruder 2: Digital Output number 12.
Enable timer switch: Digital Output number 13.
End production: Digital Output number 14.
Alarm: Digital Output number 15.
Head in calibration: Digital Output number 16
4.14.3 Analog Input.
Figure 102
Analog Input 1: Analog Input number 1.
Analog Input 2: Analog Input number 2.
Analog Input 3: Analog Input number 3.
Analog Input 4: Analog Input number 4.
4.14.4 Analog Output.
Figure 103
Setpoint Out 1: Analog Output number 1.
Setpoint Out 2: Analog Output number 2.
Setpoint Out 3: Analog Output number 3.
Setpoint Out 4: Analog Output number 4.
4.14.5 Function Keys.
MENU 2: Go to main menu 2.
