PARISON CONTROLLER
moog
84 MAN145-UM-D01A-EN Moog Italiana srl - Bergamo
4.9.3 Regulator parameters.

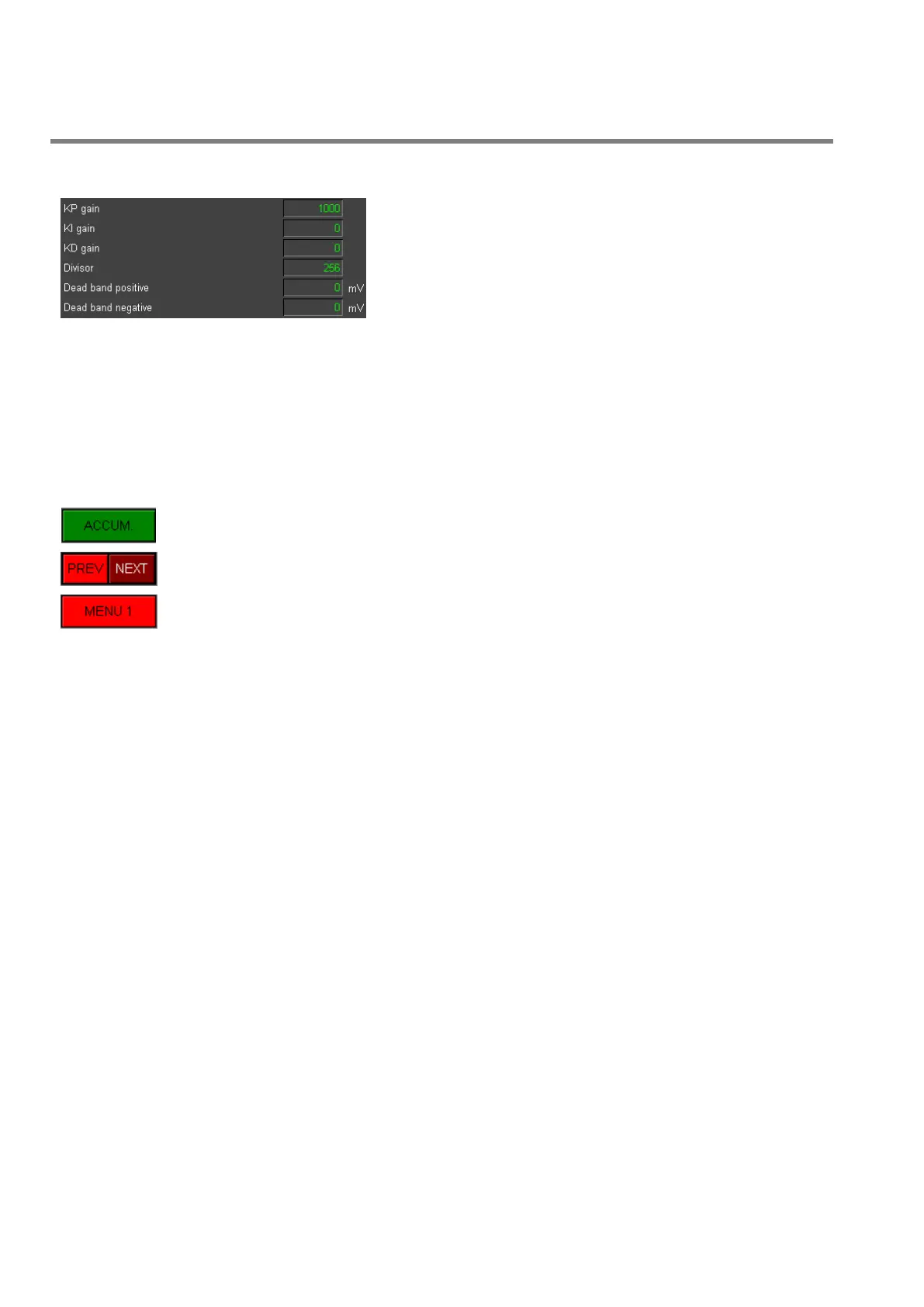

Figure 85
KP out 1: Proportional gain. Range: 0 to 10000.
KI out 1: Integral gain. Range: 0 to 10000.
KD out 1: Derivative gain. Range: 0 to 10000.
Divisor: It allows to choose the divisor of the formula. (see Setup
Head)
Dead band positive: Value added to the output already calculated by the PID controller to eliminate the dead
band. Range: 0...+5000 mV or max value mA.
Dead band negative: Value subtracted from the output already calculated by the PID controller to eliminate the
dead band. Range: 0...+5000 mV or max value mA.
4.9.4 Function Keys.
ACCUM.: Enter the Accumulator page.
NEXT: Enter the next Setup page.
MENU 1: Go to main menu 1.
