PARISON CONTROLLER
moog
14 MAN145-UM-D01A-EN Moog Italiana srl - Bergamo
2.3 Change of Setpoints.
If the cursor is on a numeric, Boolean, multi text list, alphanumeric field (green), the value can be changed.
Numeric fields: insert the desired number with the rotation of the Entry Knob. In clockwise the numbers increase.
It is possible to insert the decimal value only rotating the Knob and it is possible to insert the value left of the dot
with X10 multiplication factor and entry knob. Confirm by Set key.
Boolean fields: switch to YES/NO with rotate Entry Knob. In clockwise it is YES selection. Confirm by Set key.
Multi text list fields: rotate Entry Knob (one or more times) to scroll forward or (one or more times) to scroll
backward until desired text is displayed. Press Set key to accept the change.
Alphanumeric fields: Insert the first character alphanumeric with the rotation of the Entry Knob, move to the right
using the shift key + entry knob, using again the entry knob insert the following character. When the string is
completed confirm by Set key.
If a field need not to be changed (i.e. after typing a wrong number or changing the intention) move the cursor
away.
When a field is in variation with the insertion of a new data the led near Set Key is lit and the field changes colour.

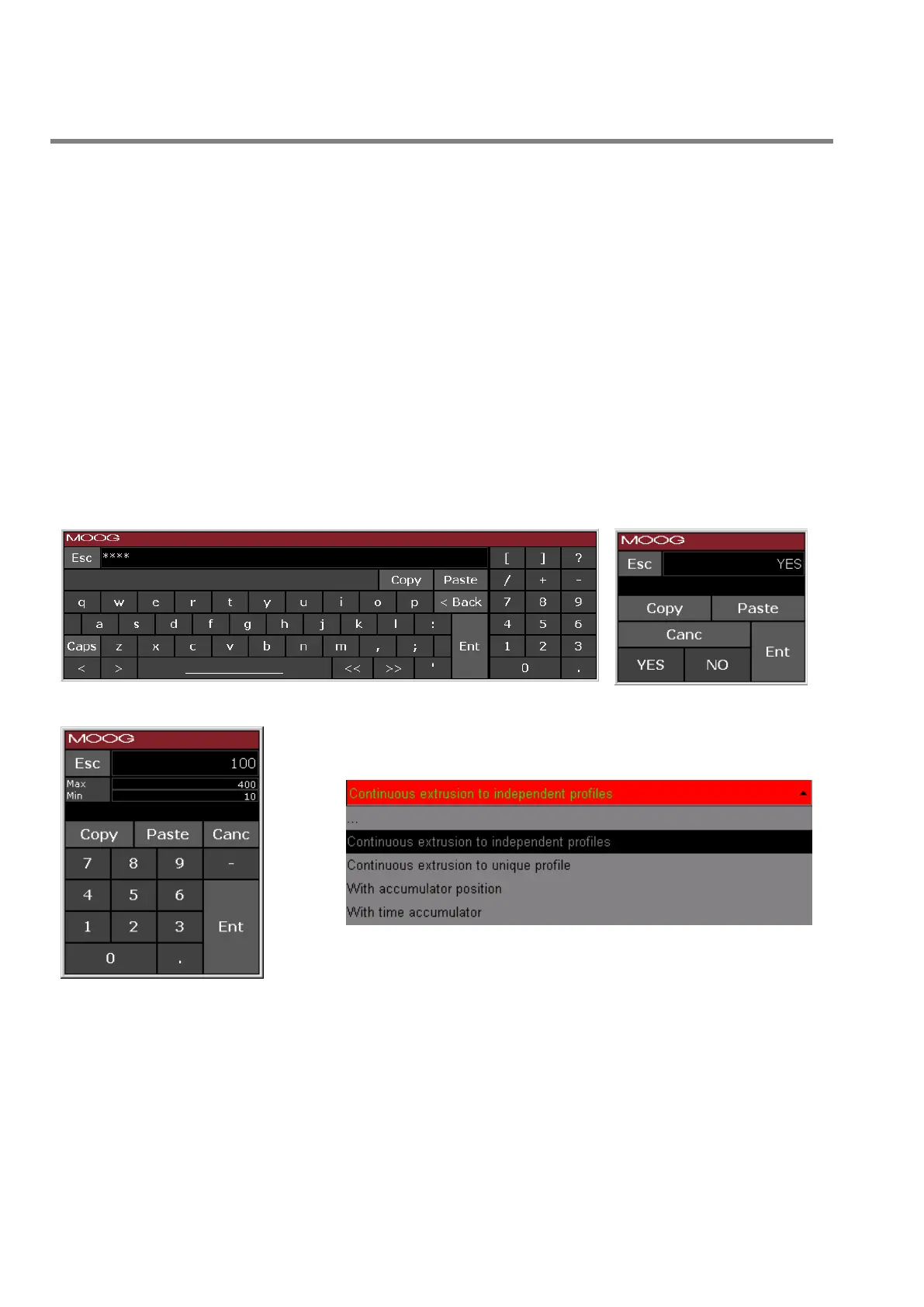

It is also possible to modify all the existing fields using the relative keyboard (double click on the field):
