PARISON CONTROLLER
moog
22 MAN145-UM-D01A-EN Moog Italiana srl - Bergamo
If a new start front is received before the current profile ends, this is interrupted and the next profile immediately
starts. If the new start front is received after the profile ends, the last point value is kept on output.

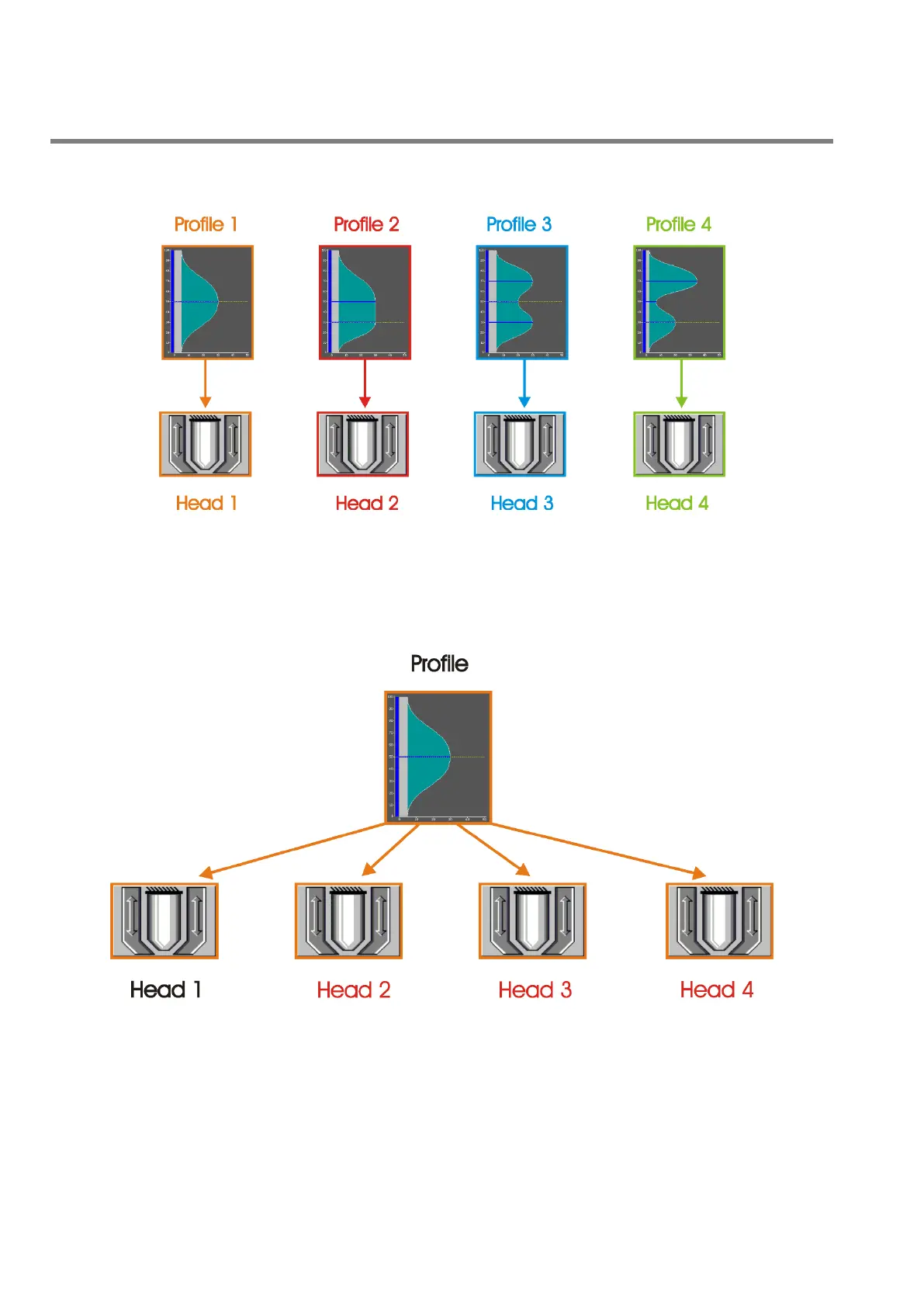

Figure 20
In continuous extrusion with unique profile there are 4 thickness regulators available (ranging from 1 to 4) and
one unique profile drives all of them. The profile issue for all the regulators is with digital input START1.
There is only one work page (Profile) and more setup page of setup for the calibration of the used heads.
In the work page it is possible to change the weight of the profile for every single head. The markers are active only
on head 1.
Figure 21
In continuous extrusion with unique profile and with only one head it is possible to enable the alternate
parison function.
Every profile has the start signal (Start 1 => Profile 1, Start 2 => Profile 2), the cycle time and the correction
independent.
