6-86 Manual # 42-02-2223
Troubleshooting
ICE-CTP Cartop Processor Board
The Cartop Processor board handles local control and communications for the iLink cartop
interconnect. Like the iBox, the Cartop Processor usually has track-mounted expansion boards
for extra inputs and outputs.

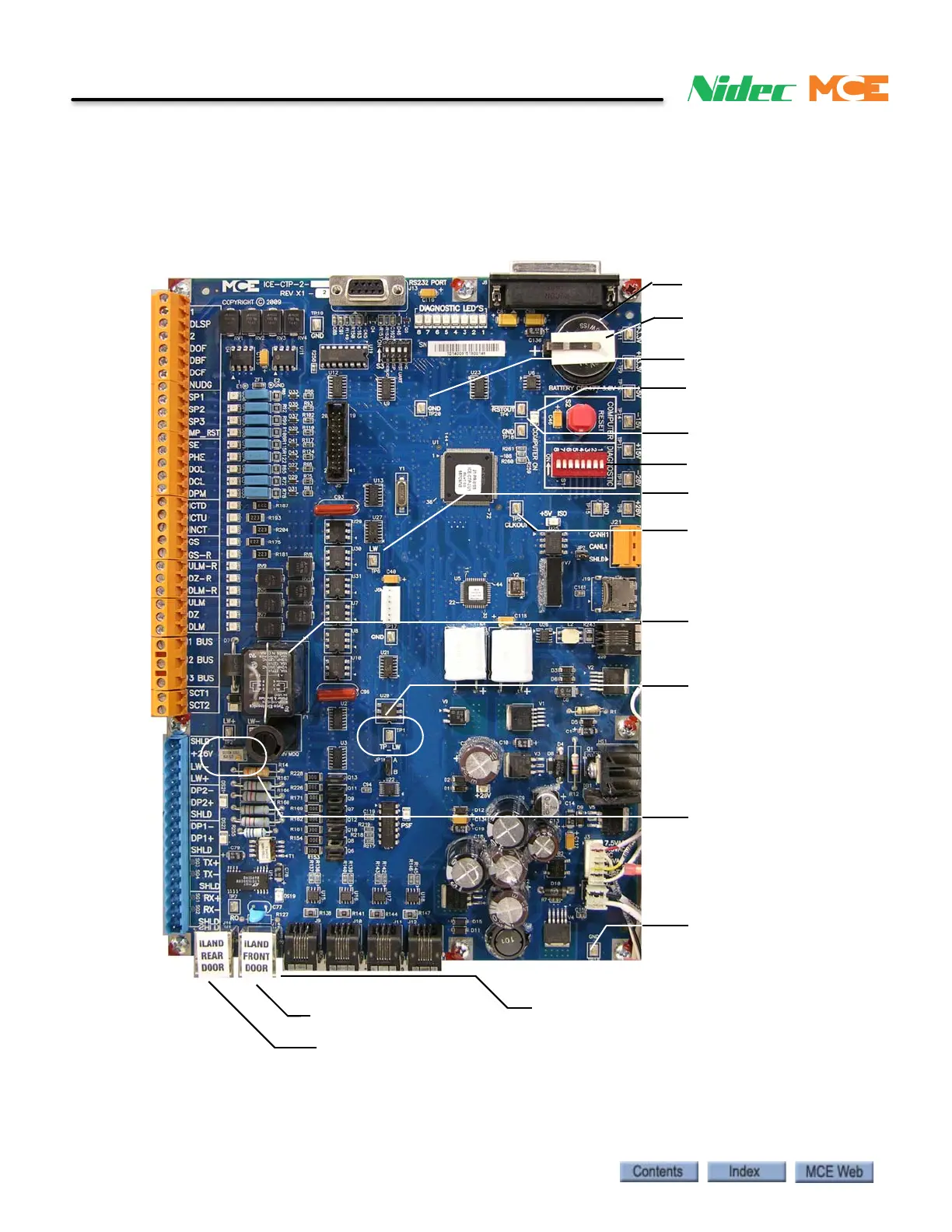

Figure 6.3 ICE-CTP-2 Cartop Processor Board
Rear door level sensor
from iLand
Front door level sensor
from iLand
Connectors for serial
Car Operating Panel
COP boards
TP_LW test point
Ground test point
Clock Out test point
Load Weigher test point
LW
RST OUT test point
Ground Test point
LED, Computer On
Load Weigher adjust,
Refer to iControl User
Manual, Section 5 for
adjustment instructions
CTS Cartop Safety Relay,
part of the safety string
Diagnostic Switches
Battery
CAUTION! Insulator must
be removed prior to use.
