6-103
iControl Circuit Board Quick References
iControl AC
6
ICE-MIAC (-24V) Multiple Input Board
The ICE-MIAC board is used in AC and DC iControls and in the iLink cartop interconnect as a
general purpose input board suitable for industry-common 120VAC input signal levels. The
ICE-MIAC-24V board can be used for 24V AC or DC inputs.

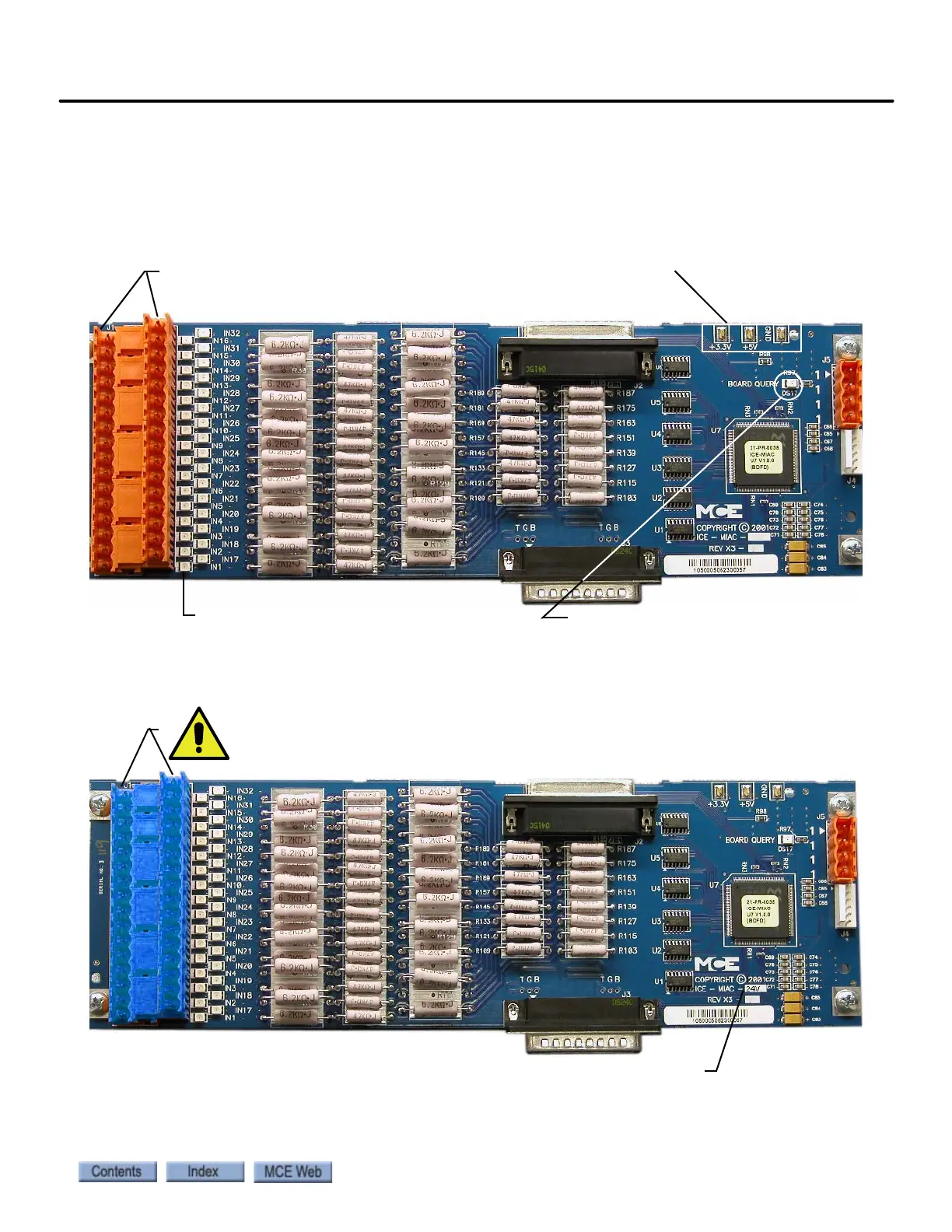

Figure 6.10 ICE-MIAC Multiple Input AC Board
Figure 6.11 ICE-MIAC-24V Multiple Input AC/DC Board
3.3V, 5V, and GND Testpoints
Board Query LED
LED lights when associated input is active
120VAC input terminals (Orange)
ICE-MIAC-24V
Caution!
Blue terminals indicate low voltage (24V AC or DC) input.
Connecting 120VAC to these inputs will damage the board.
