6-104 Manual # 42-02-2223
Troubleshooting

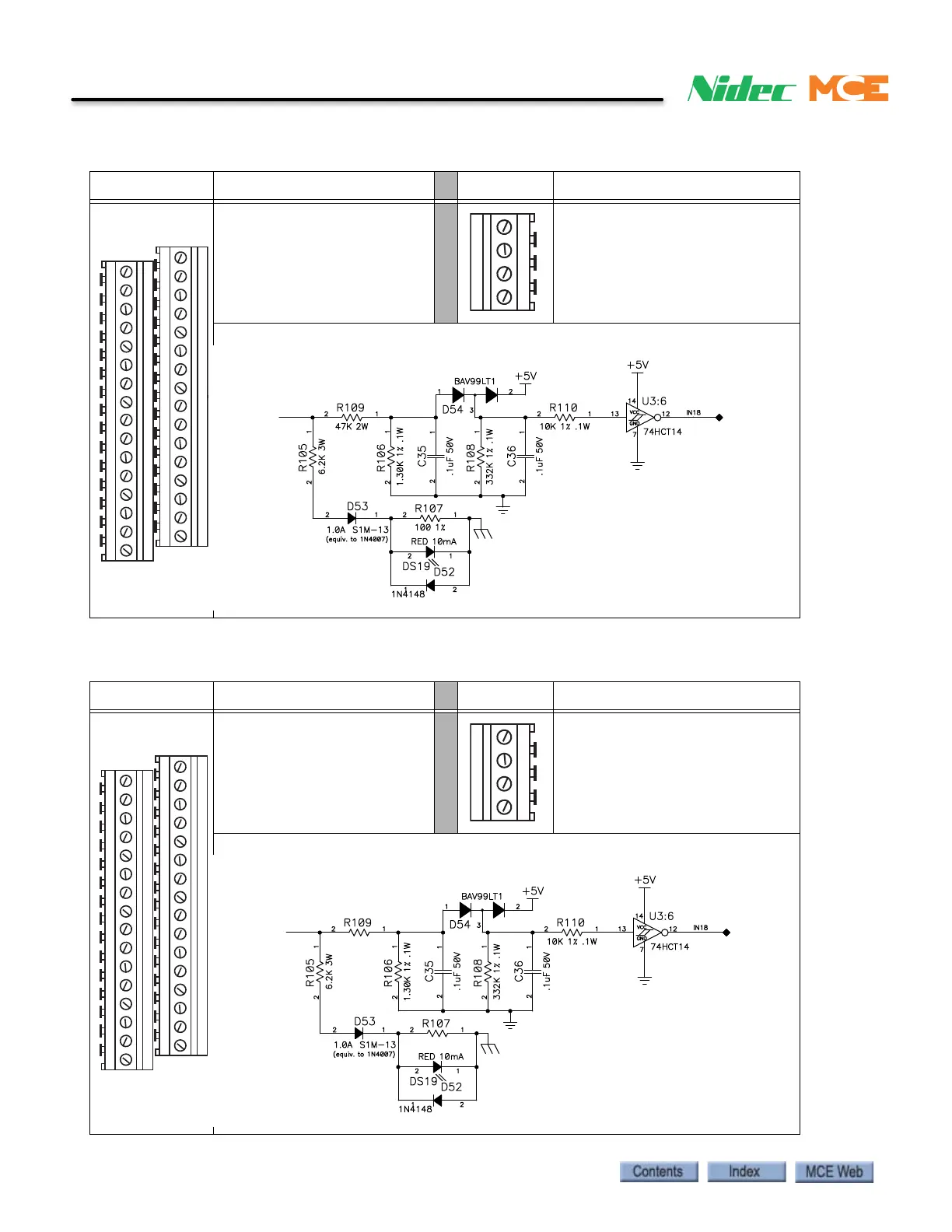

Table 6.15 ICE-MIAC Board Connections
Connector Signal Connector Signal
Orange Terminals
Inputs 1 - 32
120VAC = input active
1: Common
Typical Input Circuit
Table 6.16 ICE-MIAC-24V Board Connections
Connector Signal Connector Signal
Blue Terminals
Inputs 1 - 32
24V AC or DC = input active
Caution! Connecting 120V
to these terminals will
damage the board.
1: Common
Typical Input Circuit
To Next Page
