Chapter 4: Hardware Installation

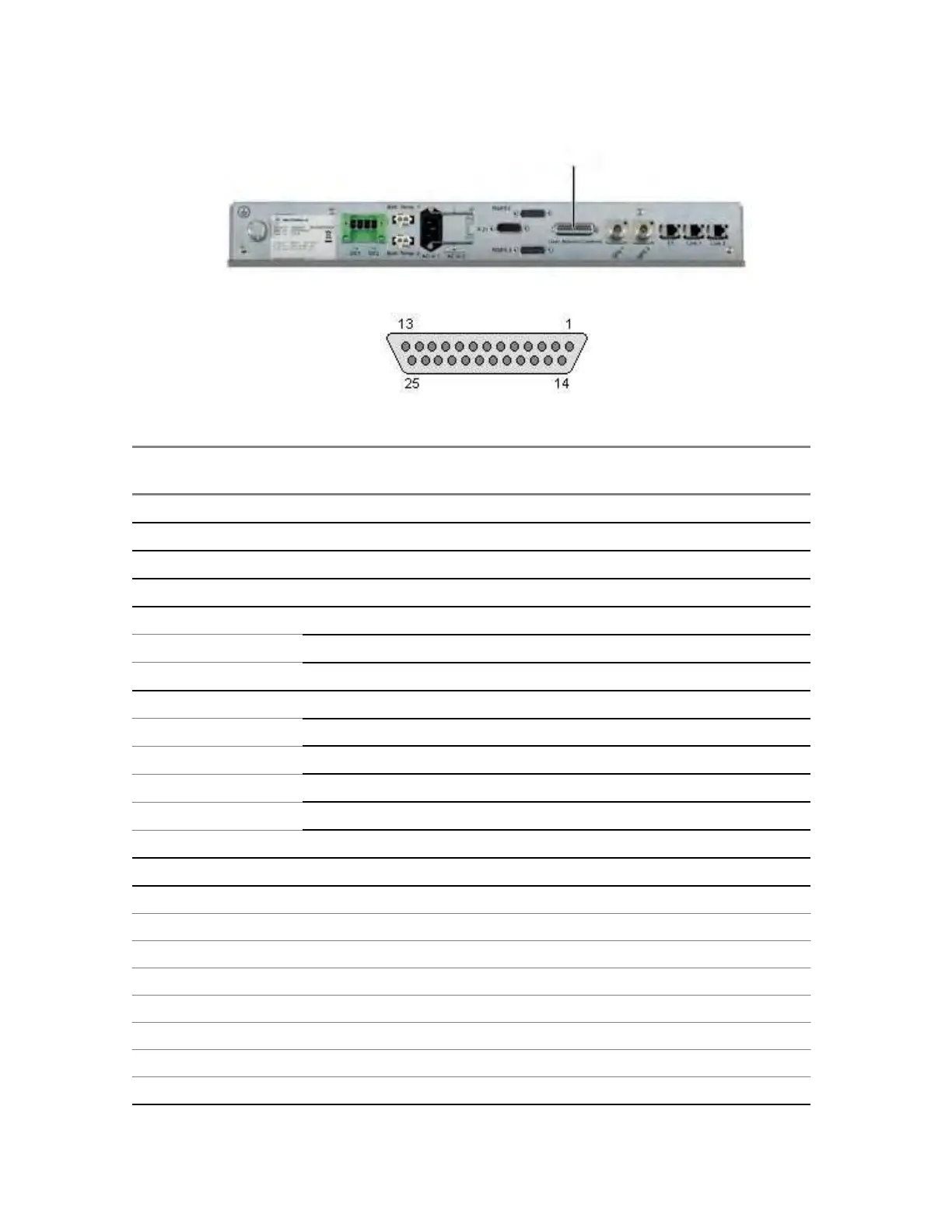

Figure 83: MTS 4 Junction Panel Alarm Wiring Connection

Figure 84: External Alarm Connector Pinout

Table 27: External Alarm Connector

Port 2 D-Type 25

13 Control Output 2

25 Control Output 2

12 Control Output 1

24 Control Output 1

11 GND (Alarm)

23 GND (Alarm)

10 GND (Alarm)

22 GND (Alarm)

9 GND (Alarm)

21 GND (Alarm)

8 External Alarm 16

20 External Alarm 15

7 External Alarm 14

19 External Alarm 13

6 External Alarm 12

18 External Alarm 11

5 External Alarm 10

17 External Alarm 9

4 External Alarm 8

16 External Alarm 7

3 External Alarm 6

15 External Alarm 5

Description

User Alarms Controls

Declaration of Conformity3
CMM Labeling and Disclosure Table4
Service Information5
