Chapter 6: Configuration and Testing
6.5.2.1
Setup and Access to Base Radio Position

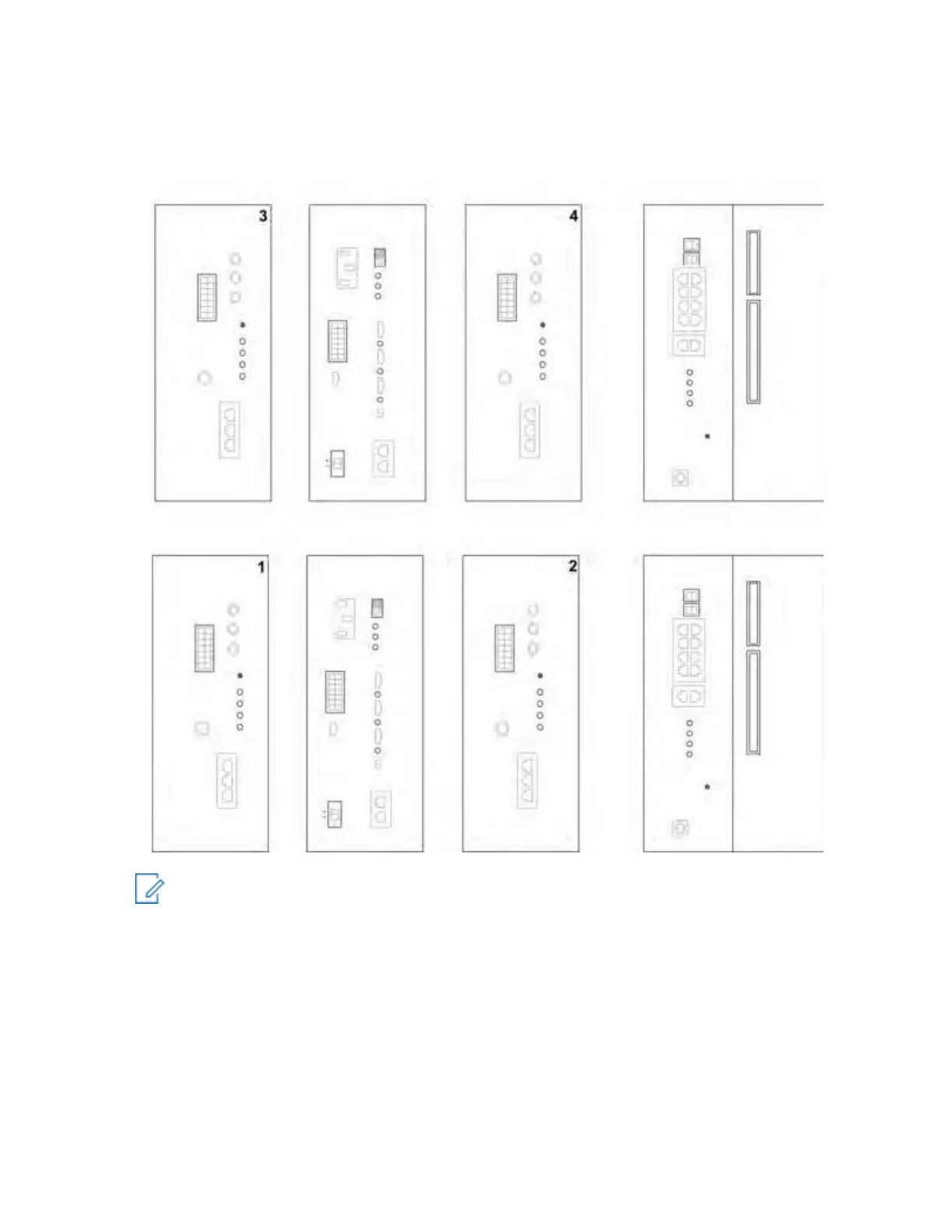

Figure 133: Base Radios Cabinet Positions and Numbering
NOTICE: The MTS 4 Expansion Cabinet Base Radio Positions and Numbering are exactly the
same as in the figure above. Only Cabinet ID differs.
6.5.2.1.1
Setting and Accessing Base Radio Position by Using the cccp Command
Perform this procedure to program the number of the position within a selected cabinet of where a
Base Radio is mounted.
Setting Base Radio position using the cccp command automatically sets the Base Radio IP address.
Procedure:
1 Log on to the Base Radio mode appropriate for your architecture:
