Chapter 1: MTS Overview
NOTICE: When an MTS LiTE is managed in TESS application, MTS 2 should be selected.
For information regarding Network Management configuration of the MTS, see the “MTS Site Object”
sections of the Zone Configuration Manager manual and Online Help.
1.3
MTS LiTE Components
The MTS LiTE is comprised of the following components:
• A stainless steel and painted aluminum cabinet
• A removable (hingeless) front door
• A junction panel
• A filter section
• A 19 inch card cage
• Interface cabling
• Internal modules
• Cooling fans (optional)
NOTICE: MTS LiTE is available in 400 MHz and 800 MHz versions.

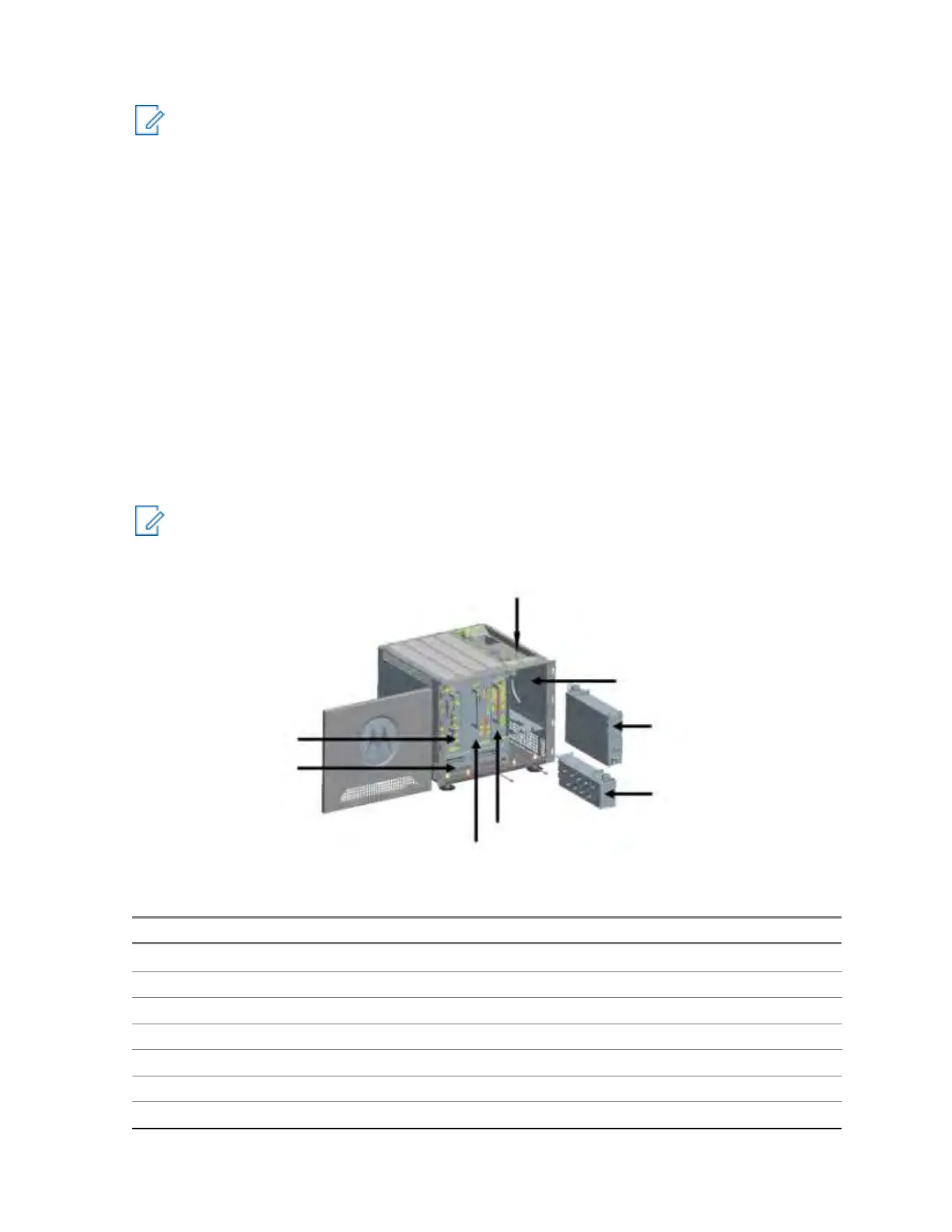

Figure 1: MTS LiTE Cabinet
Junction Panel
Filter section for
Duplexer and Preselector
Power Supply
Unit
Fan Tray
Duplexer
Preselector
Site Controller
Base Radio
Table 3: MTS LiTE Cabinet
Callout Number Description
1 Junction Panel
2 Filter section for Duplexer and Preselector
3 Duplexer
4 Preselector
5 Site Controller
6 Base Radio
7 Fan Tray
