Chapter 4: Hardware Installation

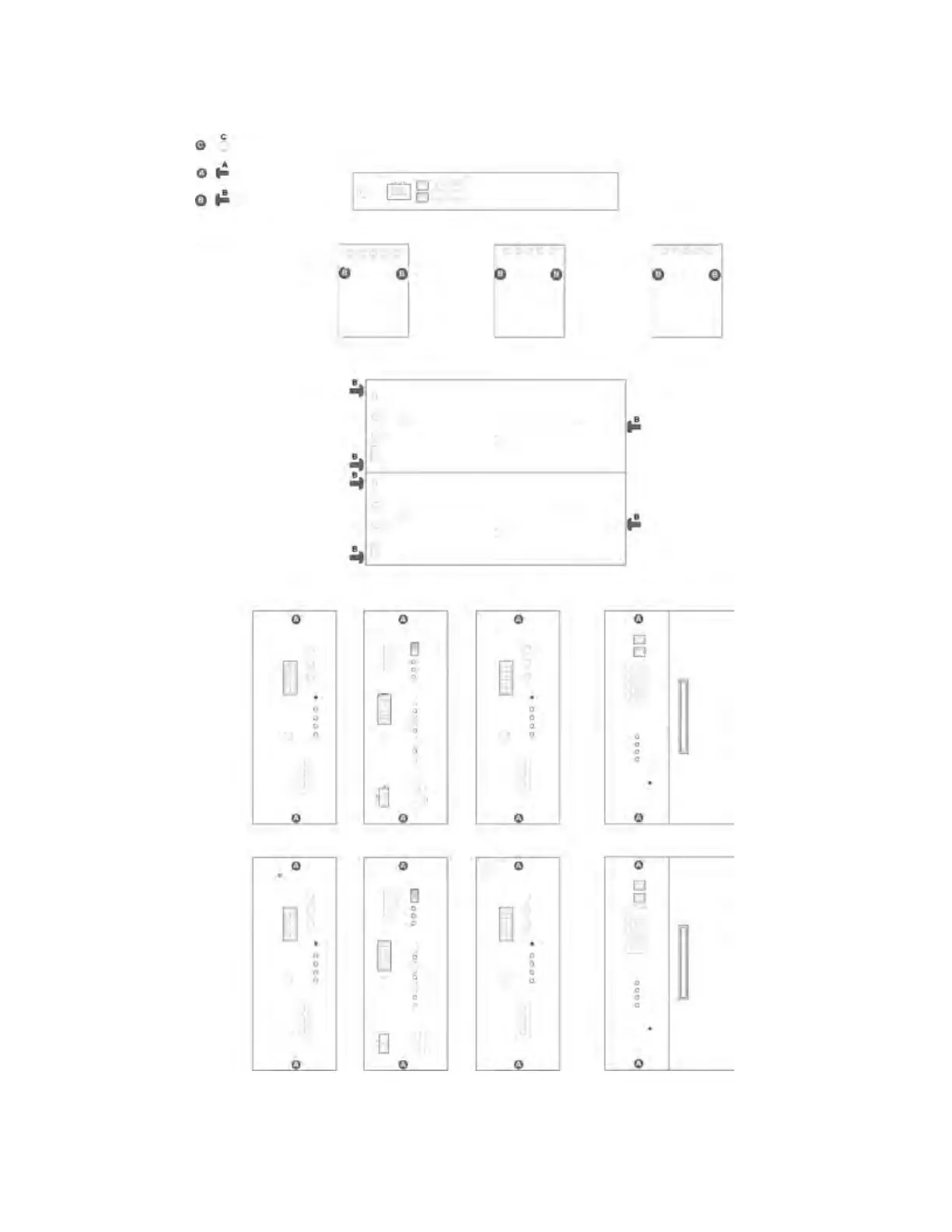

Figure 88: Expansion Cabinet Screw Positions
M4X8 (Countersunk, situated in bottom)
JUNCTION PANEL TOP VIEW
M4X10
GND
DC1 DC2
Bat. T emp. 1
AC in 1 AC in 2
M6X16
Bat. T emp. 2
RX SPLITTER
REAR VIEW
RX SPLITTER
REAR VIEW
RX SPLITTER
REAR VIEW
BR1 BR2 BR3 BR4 Exp.
Cabinet
BR1 BR2 BR3 BR4 Exp.
Cabinet
BR1 BR2 BR3 BR4 Exp.
Cabinet
ATCC
FRONT VIEW
ATCC
DC IN
TX A
TX B
Inside ATCC
Interconnection
TX OUT
ATCC
DC IN
TX A
TX B
TX OUT
Inside ATCC
Interconnection
BASE RADIO
FRONT VIEW
POWER SUPPLY UNIT
FRONT VIEW
BASE RADIO
FRONT VIEW
FRONT VIEW
XHUB CONTROLLER
REAR VIEW
BASE RADIO
POWER SUPPLY
BASE RADIO
Rx 1
Power
Rx 1
XHUB CONTROLLER
Power 4
Power 3
AC In DC in
DC in
Rx 2
AC In Status
DC In Status
Rx 2
Rx 3
DC Out / Temp
Rx 3
DC Out
Reset
Reset
Fan 1
BR5
BR6
AUX 1
Service
BR7
BR8
AUX 2
Prime
Cab
TX
AUX
Status
TX
AUX
Fan 2
Tx
Status
Tx
Status
BR
Alarm
Status
Fan 3
Status
BR
Alarm
ATCC
DC Out
Battery
Temp.
Sens.
Active
Mode
Link Alarm
Alarm
Servic e
Servic e
SC1
SC1
DC in
Battery
Reset
SC2
SC2
CAN 1
BASE RADIO
FRONT VIEW
POWER SUPPLY UNIT
FRONT VIEW
BASE RADIO
FRONT VIEW
FRONT VIEW
XHUB CONTROLLER
REAR VIEW
BASE RADIO
POWER SUPPLY
BASE RADIO
XHUB CONTROLLER
Rx 1
Power
Rx 1
Power 4
Power 3
DC in
AC In
Rx 2
AC In Status
DC In Status
DC in
Rx 2
Rx 3
DC Out / Temp
Rx 3
DC Out
Reset
Fan 1
Reset
BR5
BR6
AUX 1
Service
BR7
BR8
AUX 2
Prime
Cab
TX
AUX
Status
Fan 2
TX
AUX
Tx
Status
BR
Alarm
Tx
Status
Status
BR
Alarm
ATCC
DC Out
Fan 3
Status
Servic e
Active
Mode
Link Alarm
Alarm
DC in
Battery
Battery
Temp.
Sens.
Servic e
SC1
SC1
Reset
SC2
CAN 1
SC2
CAN 2
CAN 2
CAN 1 CAN 2
CAN 1 CAN 2
Alarms/Control
Alarms/Control
