6802800U74-AN
Chapter 3: Site Preparation
CAUTION: To enable service access and assure the passive cooling ventilation, the free space
above the cabinet must be at least 20 cm. The antenna cabling may require additional space.
NOTICE: Enable the opening of all doors to the equipment room to at least 90 degree. The
cabinet has a removable door.
69

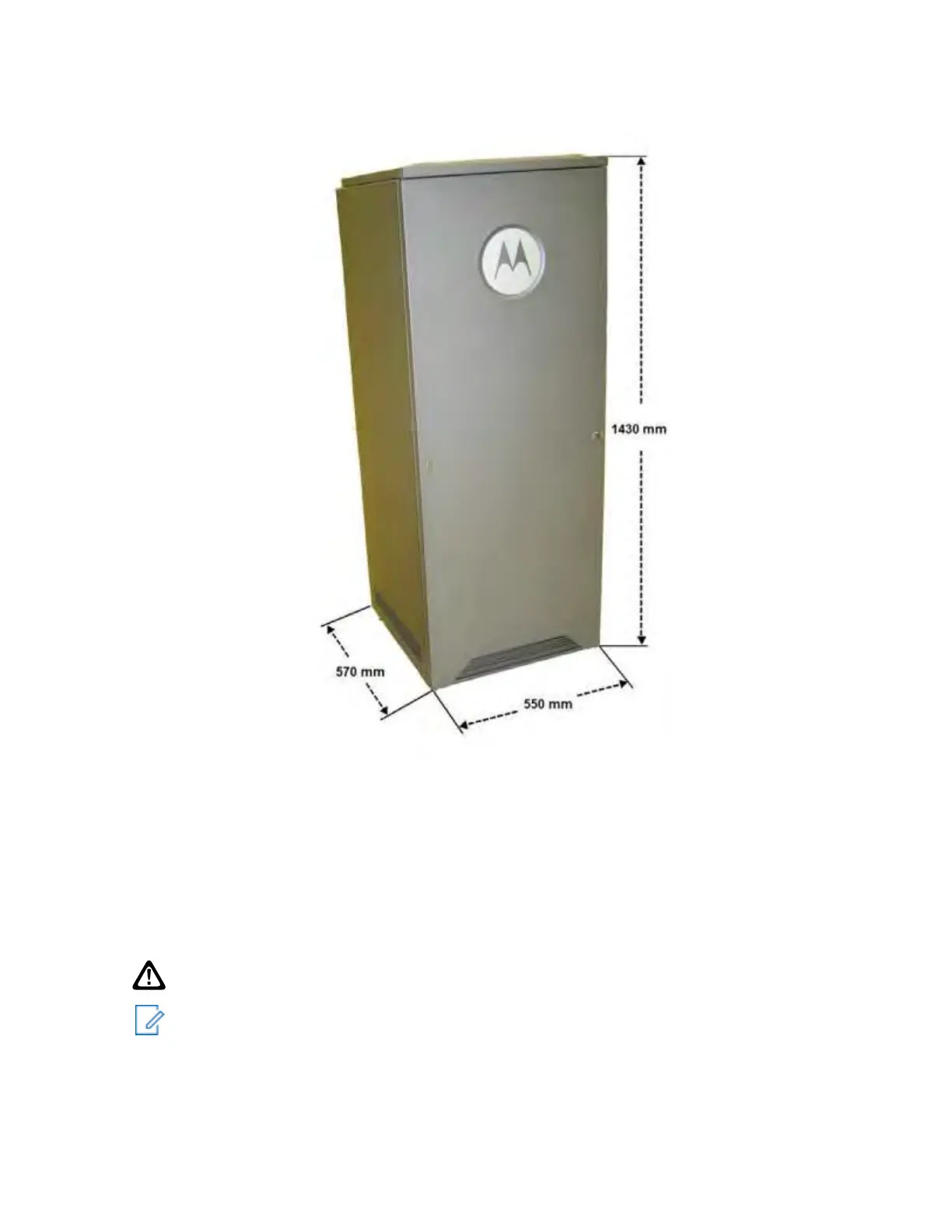

Figure 11: Expansion Cabinet Dimensions
The equipment cabinet may be installed against adjacent equipment, however the following minimal
distances must be retained:
25 mm on both sides of the cabinet
800 mm of free space in front of the cabinet
The cabinet front door has hinges on both sides and it can be opened right, left, or completely
removed. Figure 12: Suggested Expansion Cabinet Site Layout on page 70 shows the cabinet layout
within a suggested site. Additional free space is recommended at the front of the cabinet to allow the
service personnel to access the equipment easily.
