Appendix A: Field Replaceable Units (FRUs)

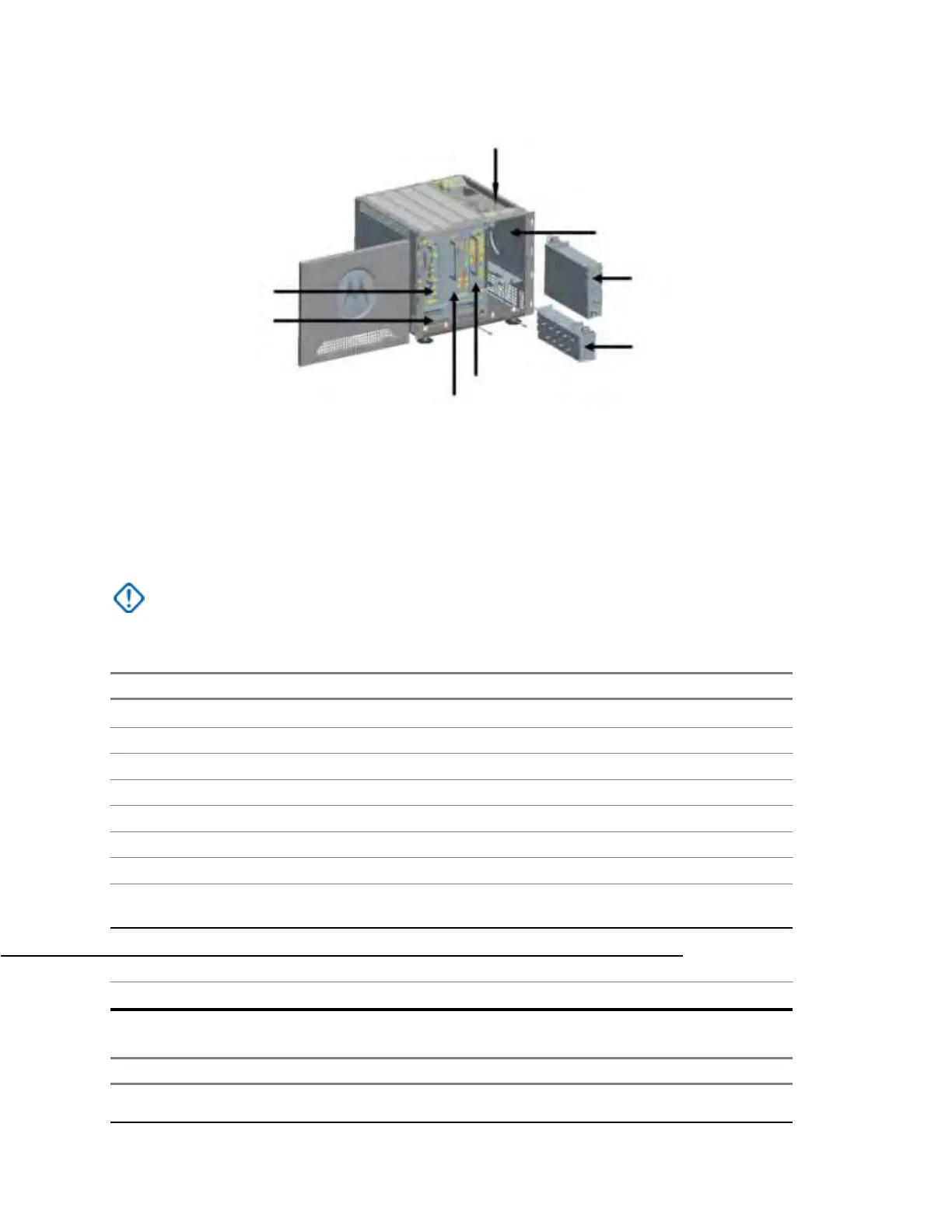

Figure 208: Position of Modules in MTS LiTE Cabinet
Junction Panel
Filter section for
Duplexer and Preselector
Power Supply
Unit
Fan Tray
Duplexer
Preselector
Site Controller
Base Radio
A.2
Field Replaceable Units for MTS 2
Table 144: Available FRUs for MTS 2 on page 448 lists the available Field Replaceable Units (FRUs)
for MTS 2 and Table 145: Other FRUs for MTS 2 Available from After Market Operations (AMO) on
page 448 lists the other FRUs for MTS 2 available from After Market Operations (AMO).
IMPORTANT: If the MTS 2 is already pre-wired for the second BR, order the BR FRU only. If
the MTS 2 is not pre-wired for the second BR, an expansion BR kit is required.
Table 144: Available FRUs for MTS 2
FRU Description
GMCN4737A Site Controller
GMTX4325A High Power Base Radio 350 – 380 MHz, TEDS compatible
GMTF4690A High Power Base Radio 806 – 870 MHz, TEDS compatible
GMTX4333A High Power Base Radio 380 – 470 MHz, TEDS compatible
GMTX4334A Low Power Base Radio 380 – 470 MHz, TEDS compatible
GMWD4513A Low Power Base Radio 260 MHz – 275 MHz
WAPN4335A Power Supply Unit
GMLN4752B DIMETRA Express Server with Trusted Platform Module
(TPM)
FRUs for BR-Arch-2 Base Radios (supported for SER releases 8.0 and above)
GMTX4335A High-Low Power Base Radio 320 - 400 MHz
GMTX4336A High-Low Power Base Radio 380 - 470 MHz
Table 145: Other FRUs for MTS 2 Available from After Market Operations (AMO)
Part Number Description
WATX4379A Hybrid Combiner 400 MHz
