Chapter 7: Radio Frequency Distribution System

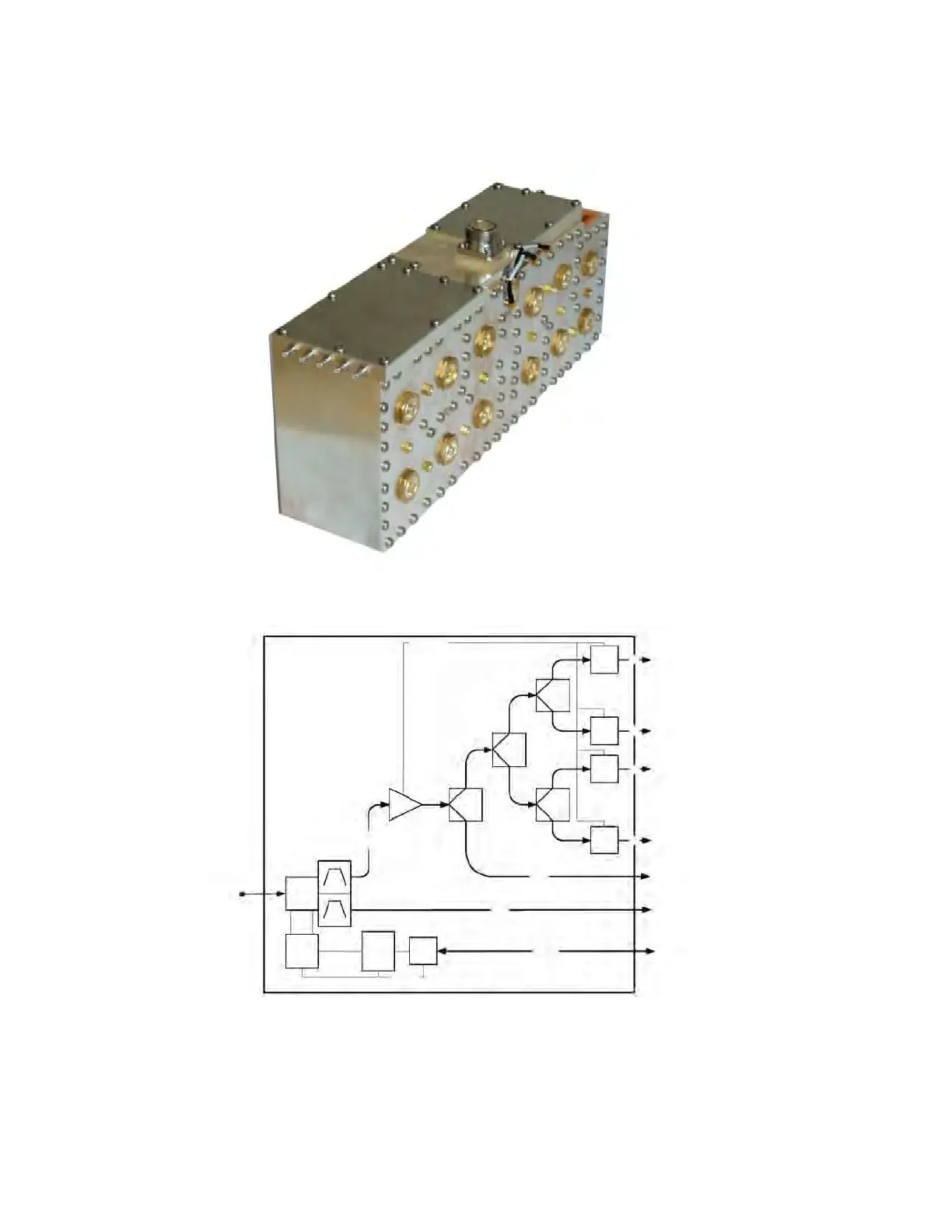

Figure 153: MTS 4 Duplexer

Figure 154: Schematic Diagram of MTS 4 Duplexer

7.3.3.1

Replacing the MTS 4 Duplexer

Process:

1 Remove the Duplexer.

7V DC supply

Duplexer

BR1

BR2

BR3

LNA

BR4

Exp. Cabinet

Antenna

Pwr

meter

Coupler

Detector

To Hybrid ATCC/

MTCC or BR

A/D

CAN Bus

Ctrl

CAN Bus

2xCAN Bus

7v DC supply
