Chapter 6: Configuration and Testing
Equipment Model/Type Manufacturer Description
TETRA Signal Gener-
ator
TETRA Analyzer (op-
tional)
Miscellaneous Ca-
bling and Connectors
Rhode & Schwarz:
SMU200A + SMU-
K68
FSQ+FS-
K110+FSQ-K70
Rhode &
Schwarz:
Locally Pro-
cured
Used for checking receive
and transmit operation
Used for checking receive
and transmit operation
Used to connect the signal
generator to the antenna
ports
6.2.3
Service Cable and Connector Box Description
The Service Cable (3066565B01) is used to connect the Service Terminal RS232 port (DB9M) to the
Site Controller RJ45 Service Port or the Base Radio RJ45 Service Port to run the MMI commands. The
Service Cable is specially crafted for measuring sensitivity. It can also be used for connecting a
computer. A simple Service Cable without the trigger wires is also sufficient to connect to the Site
Controller or the Base Radio to use MMI Commands.

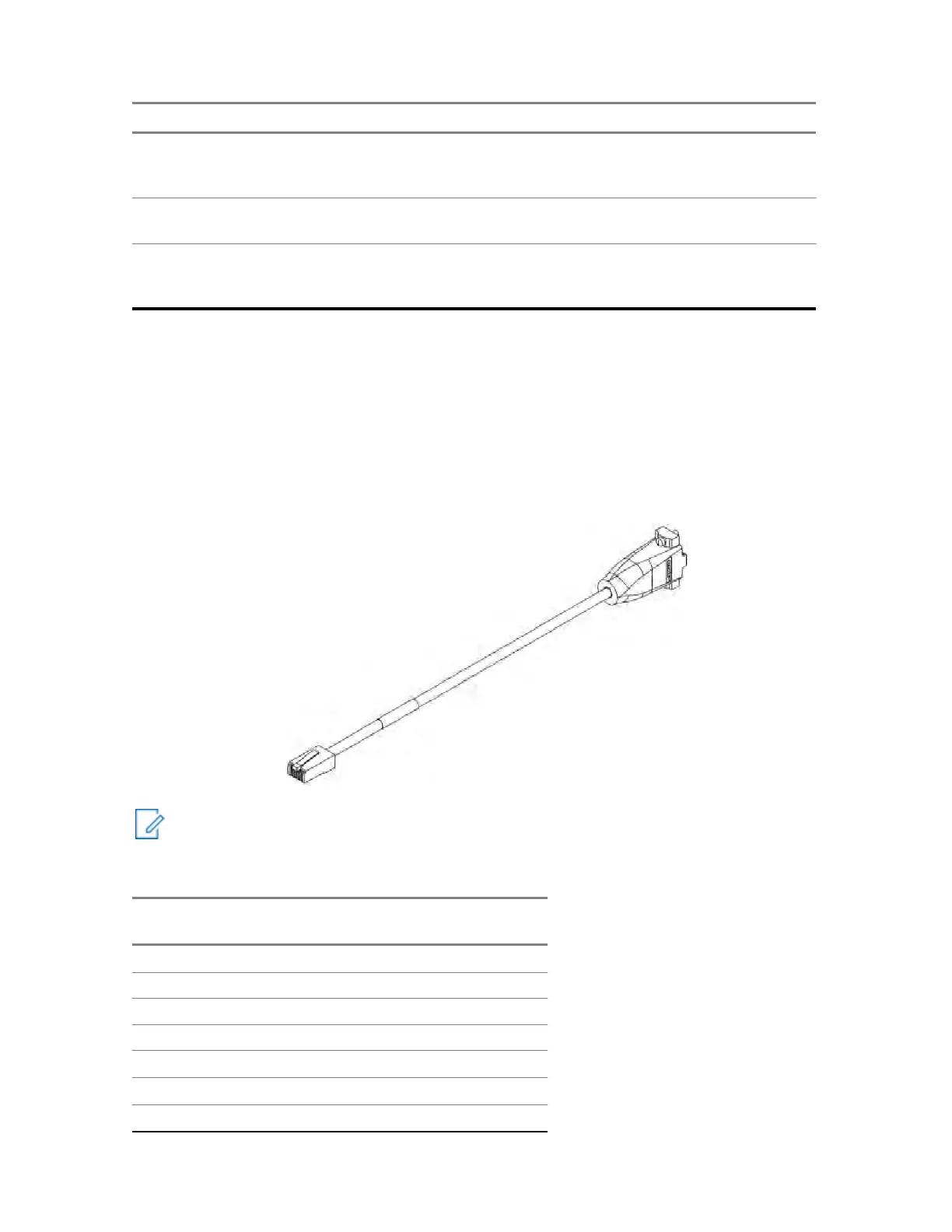

Figure 129: Basic Service Cable
NOTICE: Only the D-SUB 9 Female PINs that are connected are presented in the following
table. The rest is not connected (NC).
Table 75: Basic Service Cable Pinout
RJ45 PIN
D-SUB 9 Female
PIN
Description
1 (NC)
2 (NC)
3 (NC)
4 3 RX
5 5 GND
6 (NC)
7 2 TX
