2 - 12 MC40 Integrator Guide
Four Slot Battery Charger Installation
To install a Four Slot Battery Charger:
1. Install a Battery Charger Cup. See Cup Installation on page 2-10.
2. Align the mounting slots on the bottom of the Four Slot Battery Charger with the screws on the cup.
3. Slide the Four Slot Battery Charger down until it snaps into place.

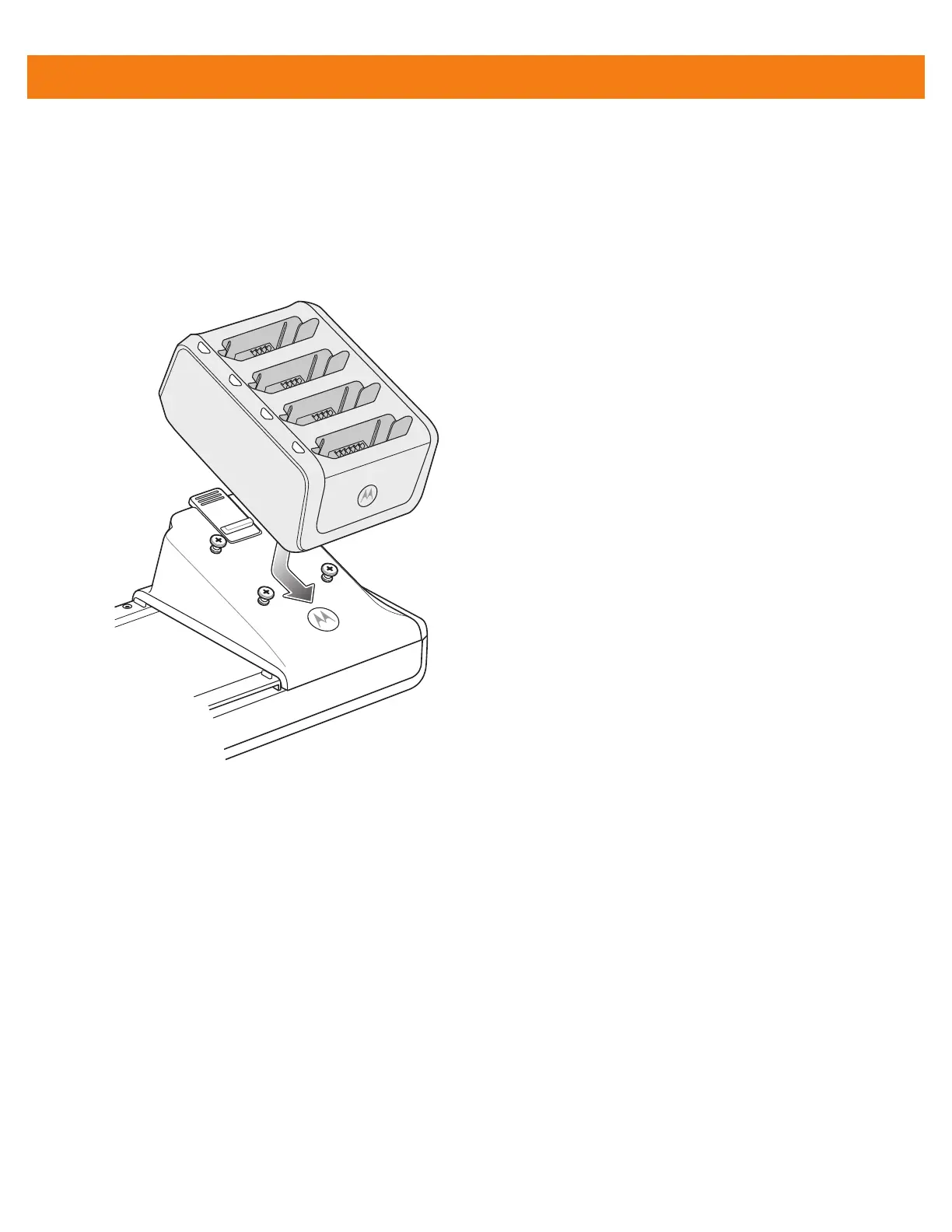

Figure 2-13 Multi Slot Universal Charge Only Cradle Four Slot Battery Charger Installation
Power
Use one power supply to provide power to the Charging Base to power the Charging Cups. A separate power
supply is required for each Four Slot Battery Charger installed. The power supply is connected directly to the
For Slot Battery Charger.
