PMM 9030/9060/9180 Frequency Extension 11-19

11.14.13 PMM 9010 +

PMM 9030/9060/9180

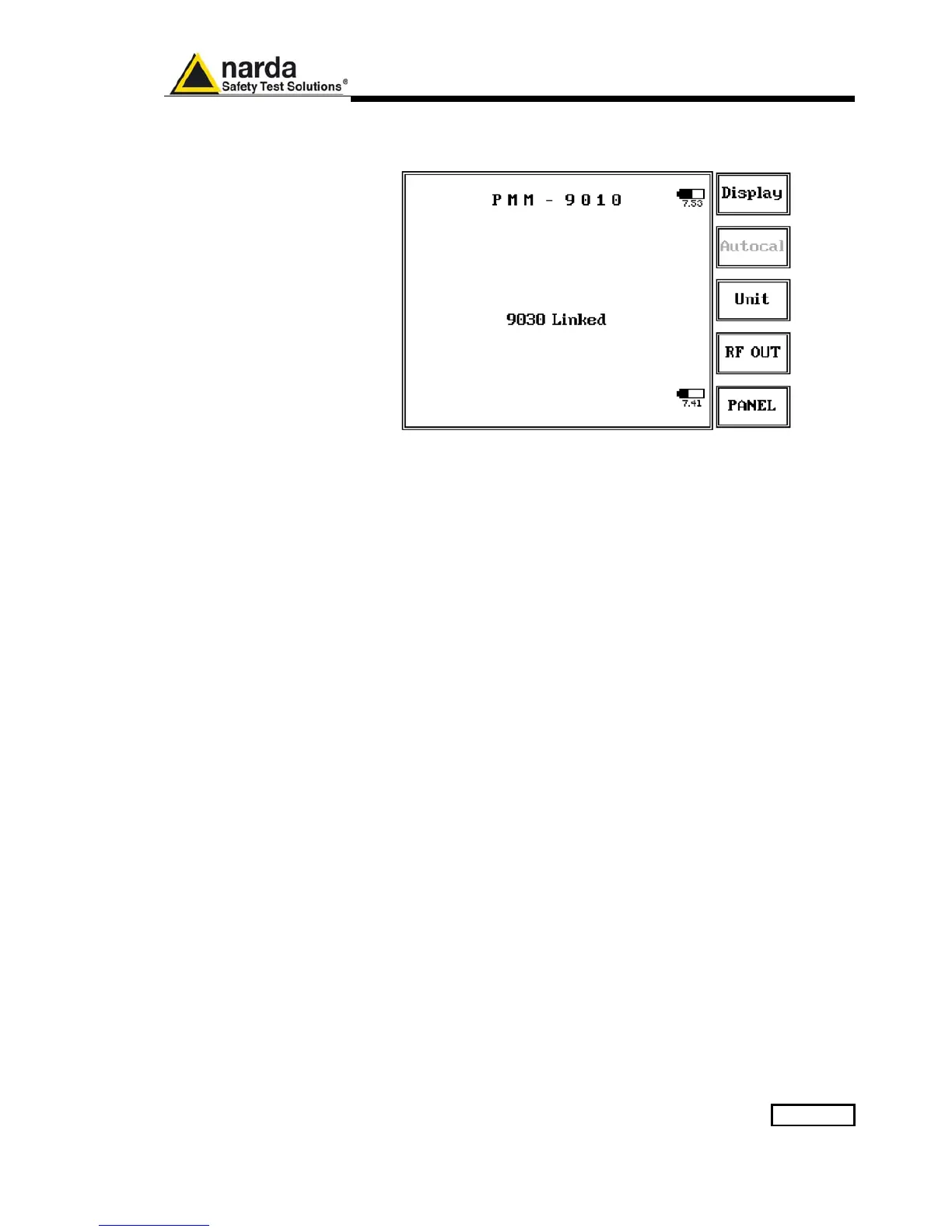

Setup panel

No changes in this panel, but that the Autocalibration function is no longer

available in this condition.
