NARDA PMM 9010 Series User Manual

13-4 APD Mode Operating Instructions
13.3 Setup
As for the Sweep and Click operating modes, all the relevant information are
reported on the screen.

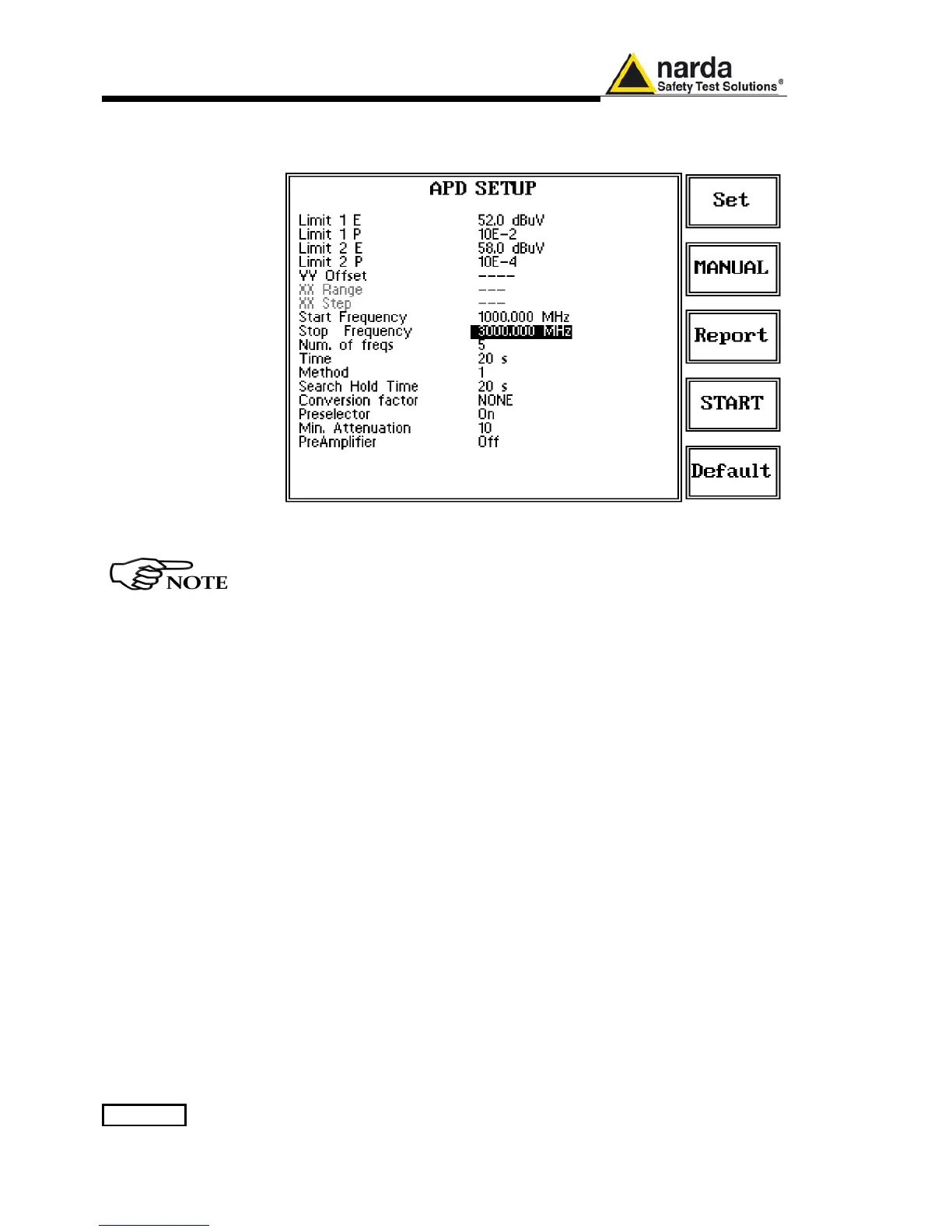

Fig. 4-1 APD Setup
Thanks to its digital architecture and to the clever design, the PMM
9010/9030/9060/9180 receiver can make very fast and precise
measurements in compliance to both methods (E & P) of the CISPR 16-
1-1 standard.
13.3.1 Limit 1 E
Moving the highlighter cursor on the first line of the Setup page the threshold
level for the first limit can be entered using the function keys on the right.
The range for this limit is between 10 and 120 dBµV (default: 52dBµV).
Enter a 0 (zero) to disable the limit.
If the limit is disabled a series of dashes ( ---- ) is displayed.
13.3.2 Limit 1 P
Moving the highlighter cursor on the second line of the Setup page the
threshold percentage of probability, expressed in power of ten, for the first
limit can be entered using the function keys on the right.
The range for this limit is between 10
0
and 10
-8
dBµV (default: 10E-2).
Only the positive number of the exponent needs to be entered.
To set 10
0
a value of 0.1 must be input.
Enter a 0 (zero) to disable the limit.
If the limit is disabled a series of dashes ( ---- ) is displayed.
13.3.3 Limit 2 E
Moving the highlighter cursor on the third line of the Setup page the
threshold level for the second limit can be entered using the function keys on
the right.
The range for this limit is between 10 and 120 dBµV (default: 58dBµV).
Enter a 0 (zero) to disable the limit.
If the limit is disabled a series of dashes ( ---- ) is displayed.
