11-50 PMM 9030/9060/9180 Frequency Extension

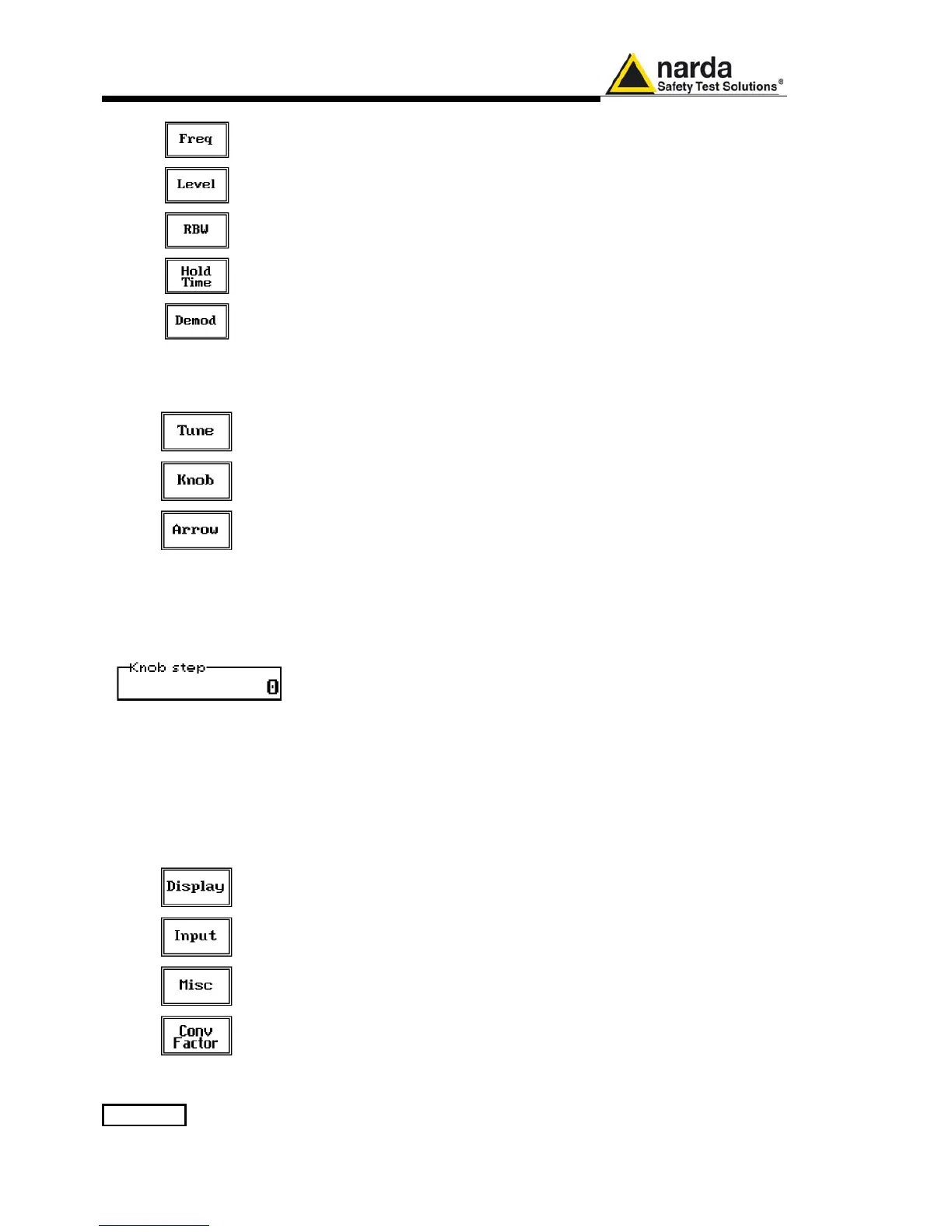

The Manual mode function has five sub windows:
• Frequency
• Level
• Resolution Bandwidth
• Hold Time
• Demodulation
Always use Esc button to return to the previous view/condition.
11.17.2 Frequency
Under this menu it is possible to set the tuning frequency and also the
knob and the arrow keys steps.
The center Frequency of the reading can be directly edited into the Tune
window or set by the left and right arrow buttons or by rotating the knob.
The figures entered appear in a small window just below the graph and the
default unit is MHz.
Having selected Tune, the figures 0, 1, 2, 3, and 4 are selectable at first;
with the right arrow key it is possible to select the figures from 5 to 9, and
pressing again the right arrow key the units kHz, MHz and GHz becomes
accessible, as well as the decimal dot and the Back Space. The left arrow
key can be used as well to move back and forth from one screen to the
other. Pressing 0 as the first figure the decimal dot appears automatically.
To set a given frequency it is therefore enough to edit the value with the
soft keys and the left an right arrows, confirming the selections entering the
units value (kHz, MHz or GHz).
If Knob is selected, the small window below the bars indicate the step
which is going to be selected. After having fixed the step size, rotate the
know and tune the desired frequency.
If Arrow is selected, the small window below the bars indicate the step
which is going to be selected. After having fixed the step size, press the left
and the right arrow keys to decrease or increase the frequency by the
selected step.
11.17.3 Level
The Level function has 4 sub-menus.
Pressing the Display button it is possible to set two parameters: the
visualized Dynamic range (chosen between 80, 100 and 120dB) and the
Reference Level, that can be increased or reduced by steps of 5dB within
the range +57 dBμV to 92 dBμV (-50 to -15 dBm).
The Input button opens a submenu which is dedicated to the setting of the
input attenuator and to switch on-off the built-in preamplifier.
The PMM 9030/9060/9180 receiver takes automatically into account the
settings of all the Input parameters and always displays the correct value
of the level. The User is not required to make any correction to the
readings.
