NARDA PMM 9010 Series - A-D-11 PMM Lisns and Passive Probes

A-D-6 LISN with PMM 9010
A-D.11 PMM LISNs
and Passive
probes

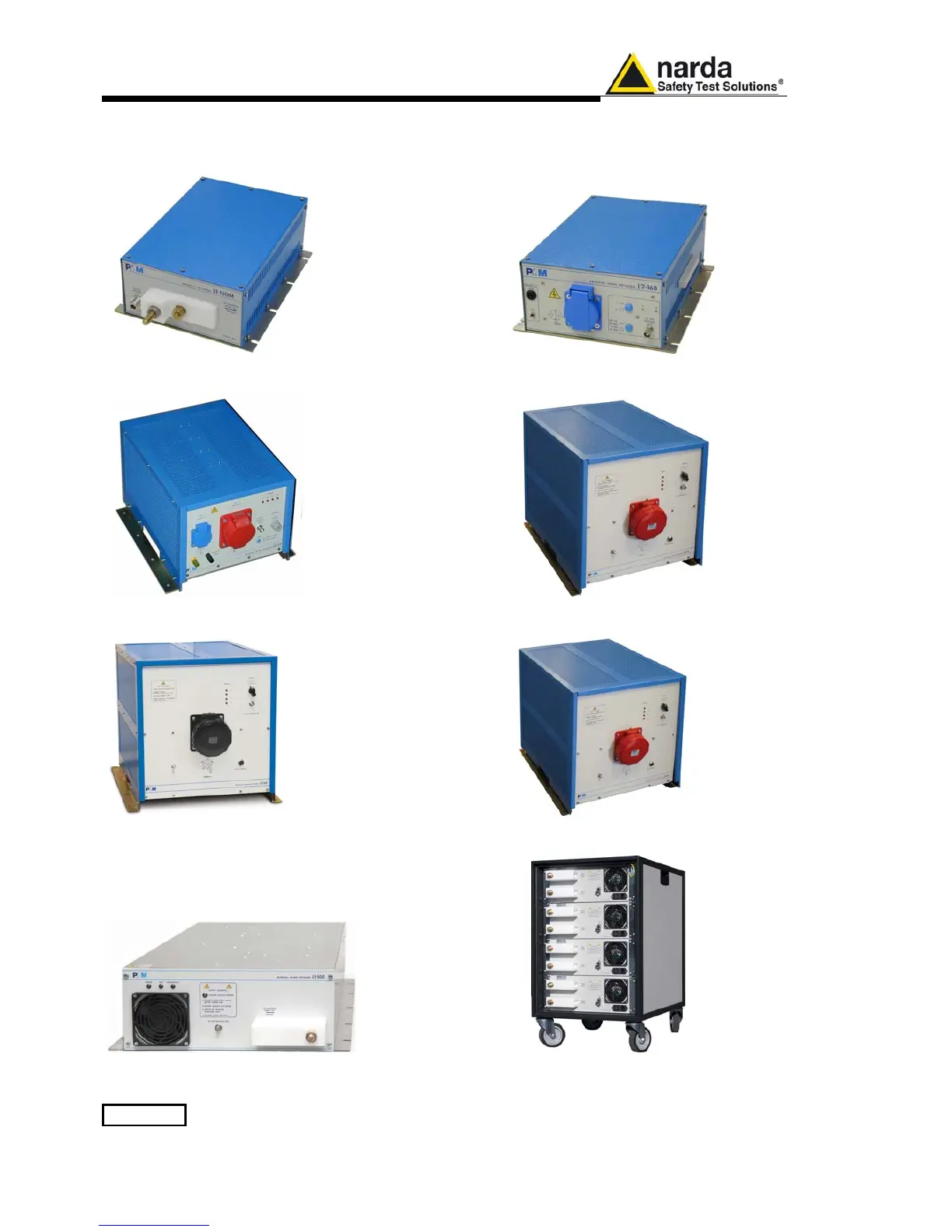

Fig. A-D-5 Fig. A-D-6
L1-150M: Single line LISN, 150A LISN L2-16B: Two lines, Single phase, 16A LISN
Fig. A-D-7 Fig. A-D-8
L3-32: Four lines, 3-phase, 32A LISN L3-64: Four lines, 3-phase, 64A LISN
Fig. A-D-9 Fig. A-D-10
L3-64/690: Four lines, 3-phase, 64A – 690Vac LISN L3-100: Four lines, 3-phase, 100A LISN
Fig. A-D-11 Fig. A-D-12
L1-500: Single line LISN, 500A LISN L3-500: Four lines, 3-phase, 500A LISN
