1-6 General Information
1.9 Rear Panel

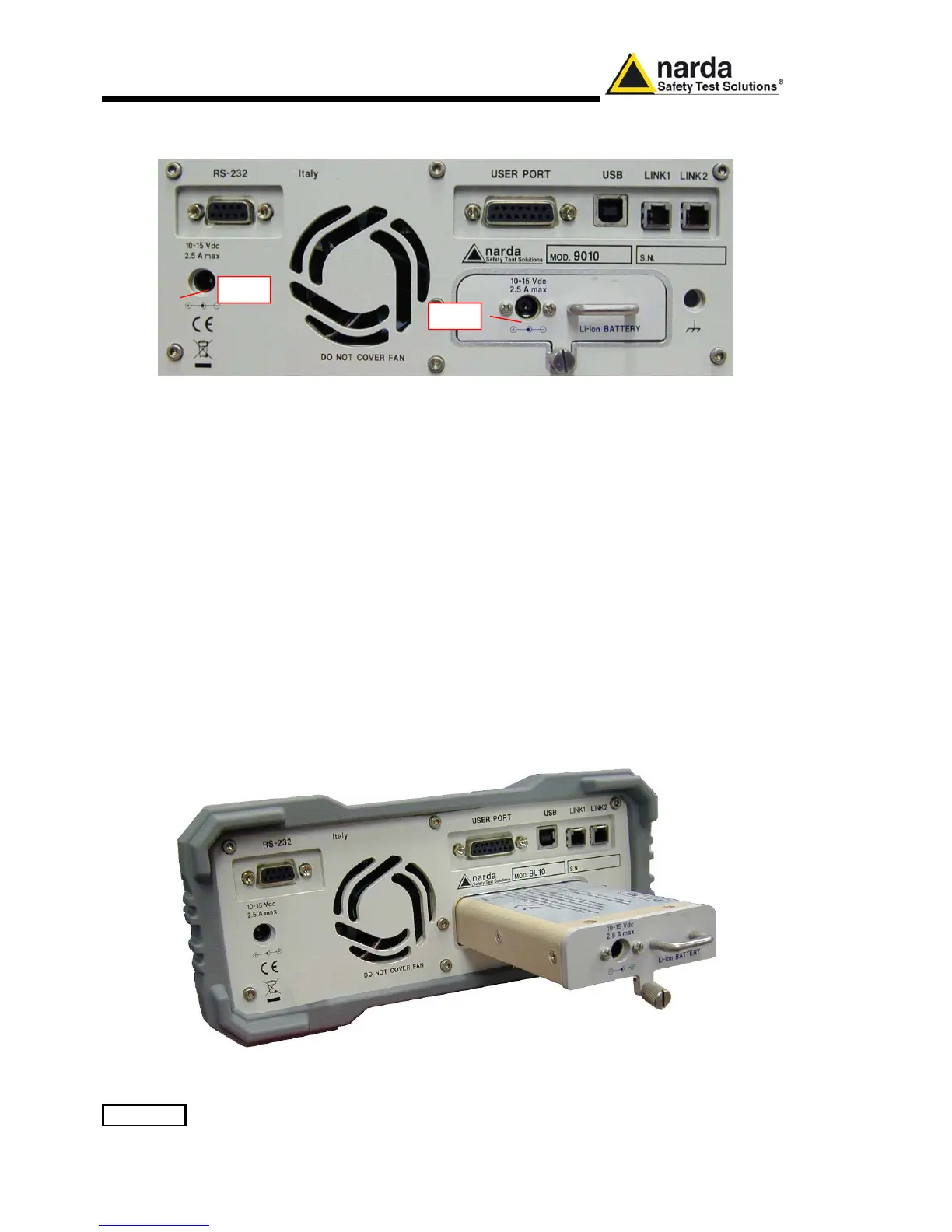

Fig. 1-2 Rear Panel
Legend from left to right:
- RS232 9 pin, DB9 connector
- GPIB IEEE488 I/O Port (optional)
- USER PORT User I/O Port
- USB Fully functional USB 2.0 Port
- LINK1/LINK2 Optical link connectors for PMM equipments (Link 2 for future implementation)
- Power Supply Power Supply Inputs for use to power the apparatus and simultaneously charge
its battery (PS1) and to simply charge the battery when it’s out of the receiver
(PS2).
- Fan Cooling Fan controlled by firmware
- Replaceable Li-Ion Battery (Fig. 1-3) with main Battery Charger connector
- Earth ground connector
- Product Label and Serial Number
Fig. 1-3 BP-02 Replaceable Battery
PS1
PS2
