NARDA PMM 9010 Series User Manual

LISN with PMM 9010 A-D-7

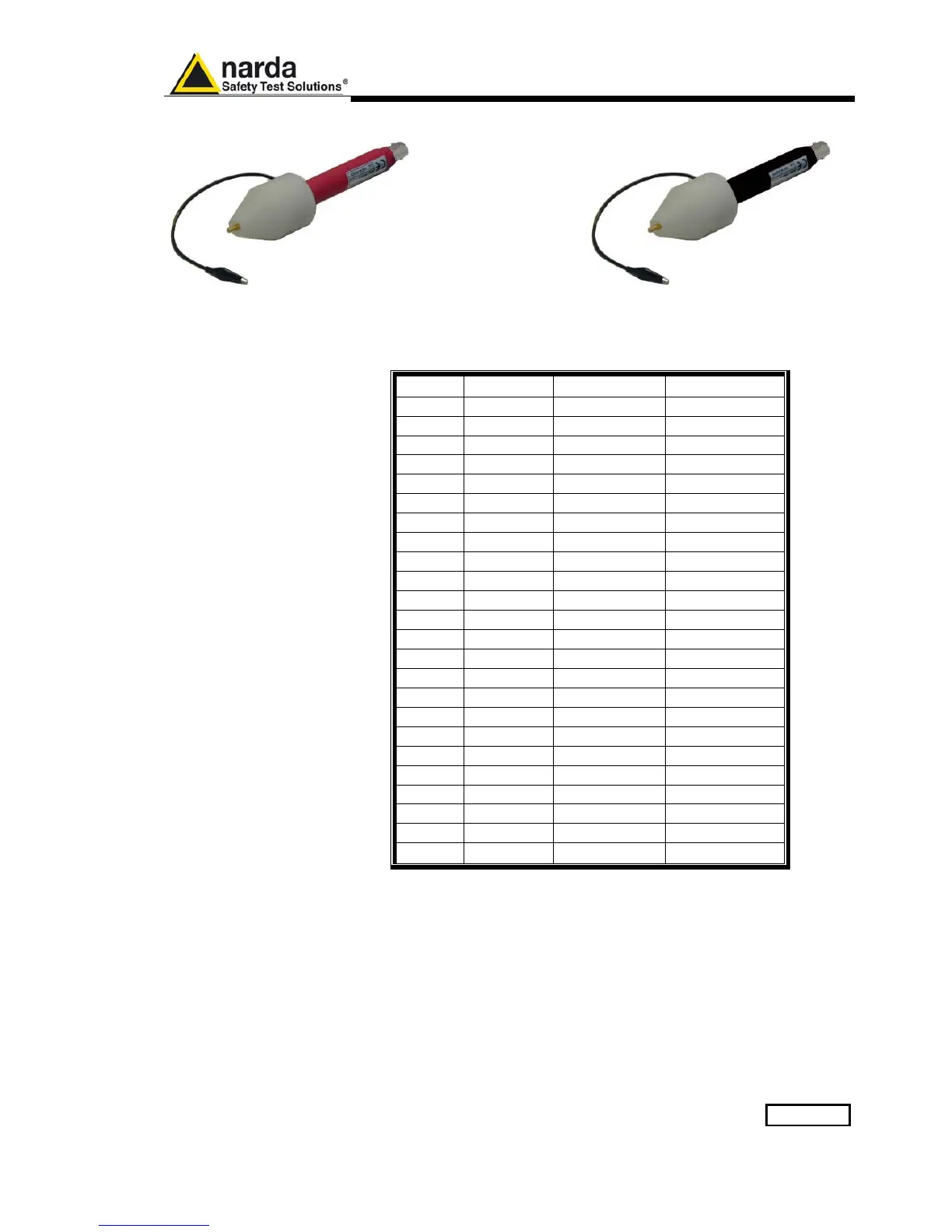

Fig. A-D-13 Fig. A-D-14
SHC-1/1000: 35 dB CISPR Voltage probe SHC-2/1000: 30 dB CISPR Voltage probe;
A-D.12 Conversion
table
dBμV <> μV <> dBm
dBμV μVolt dBm (Z=50 Ω) pWatt (Z=50 Ω)
-20 0.1 -127 0.0000002
-10 0.3 -117 0.000002
0 1 -107 0.00002
6 2 -101 0.00008
10 3 -97 0.00020
12 4 -95 0.00032
20 10 -87 0.002
24 16 -83 0.005
30 32 -77 0.020
32 40 -75 0.03
40 100 -67 0.20
45 178 -62 0.6
50 316 -57 2.0
55 562 -52 6.3
60 1000 -47 20
65 1778 -42 63
70 3162 -37 200
75 5623 -32 631
80 10000 -27 1995
85 17783 -22 6310
90 31623 -17 19953
95 56234 -12 63096
100 100000 -7 199526
107 223872 0 1000000
A-D-15 Conversion table
