LISN with PMM 9010 A-D-5
A-D.10 Note
This is not the procedure suggested by the Standard and used to certify the
LISNs.
If the measurement results are different from what expected please check
again and eventually refer to Customer’s Care service.

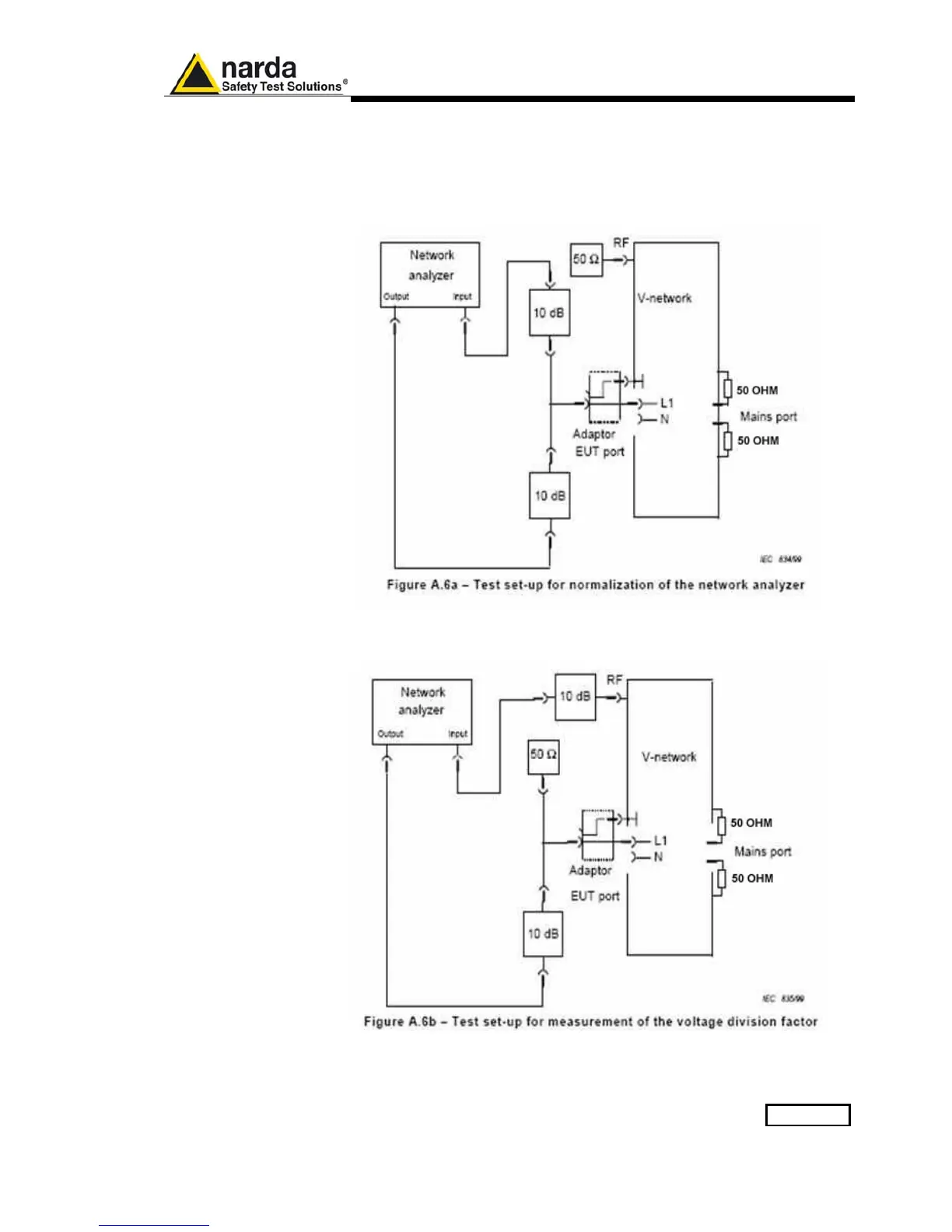

CISPR standard recommended calibration setup is reported below and
requires an expensive Network Analyzer equipment.
Fig. A-D-3 Network analyzer calibration Setup (L1)
Fig. A-D-4 Measurement Setup (L1)
