PMM 9030/9060/9180 Frequency Extension 11-21
11.14.15 Antenna
Mounting Kit AMK-01
and AMK-02 (optional)
In the frequency range from 9 kHz to 18 GHz a Loop, Rod, Biconic, Log-
periodic and Horn antennas can be used to pick-up and measure RF
radiated emissions. Alternatively, a versatile Biconic-Log antenna is also
available to cover the full range
30 MHz to 6 GHz without changing
antennas, even if such a solution is mostly more expensive and the
antenna size is bigger.
The really “unique” feature of PMM 9030/9060/9180 is that of allowing
direct connection between antenna output connector and EMI receiver
input, so dramatically increasing system immunity to environmental noise
at detection side and completely cutting-off any capacitive coupling
between antenna, ground plane and connection cables.
In order to perfectly match antennas to PMM Receiver, two dedicated
Antenna Mounting Kit are also provided as optional accessories, so
balancing weight between receiver and antenna when attached to a tripod
or antenna mast: AMK-01 (for BC-01, LP-02, LP-03 and LP-04) and AMK-
02 (for BL-01).
Such Antenna holder comes with some spare parts plus nuts and bolts,
which can be easily assembled with provided wrench, as per step-by-step
operations in following pictures.
AMK-01 Antenna
Mounting Kit with BC-01,
LP-02 and LP-04

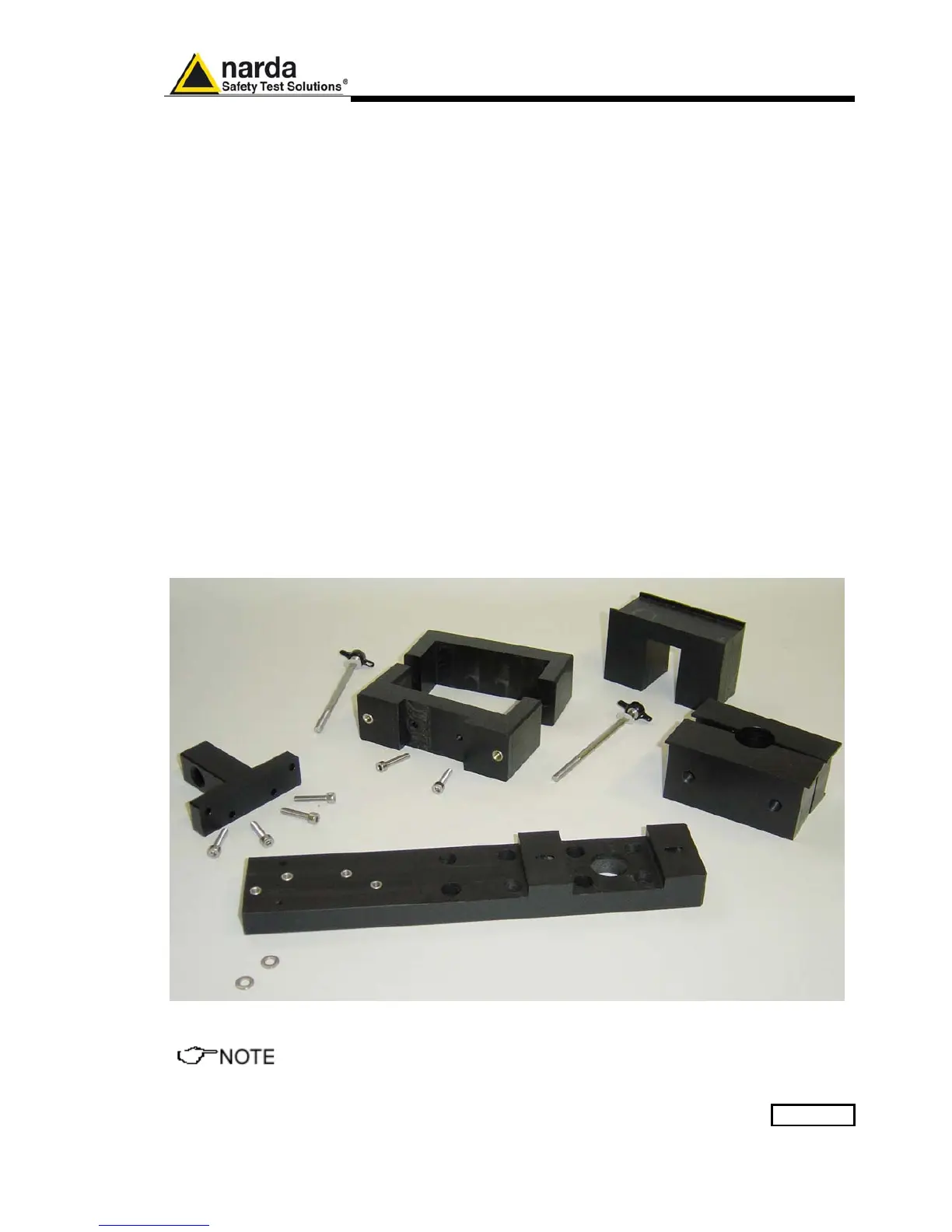

Fig. 11-6 AMK-01 Antenna Mounting Kit
For information on BC-01, LP-02 and LP-04 mounting, please refer to
the Antenna Set user’s manual.
