Four Channels Click Meter Option A-C-3
A-C.2.5 PMM 9010
Battery charging
To supply the PMM 9010 it is either possible to use the standard battery
charger supplied with the receiver, or connect the short cable from the rear
12VDC connector on the Click4E Option to the input CHARGER on the
rear panel of the receiver as visible in the figure.

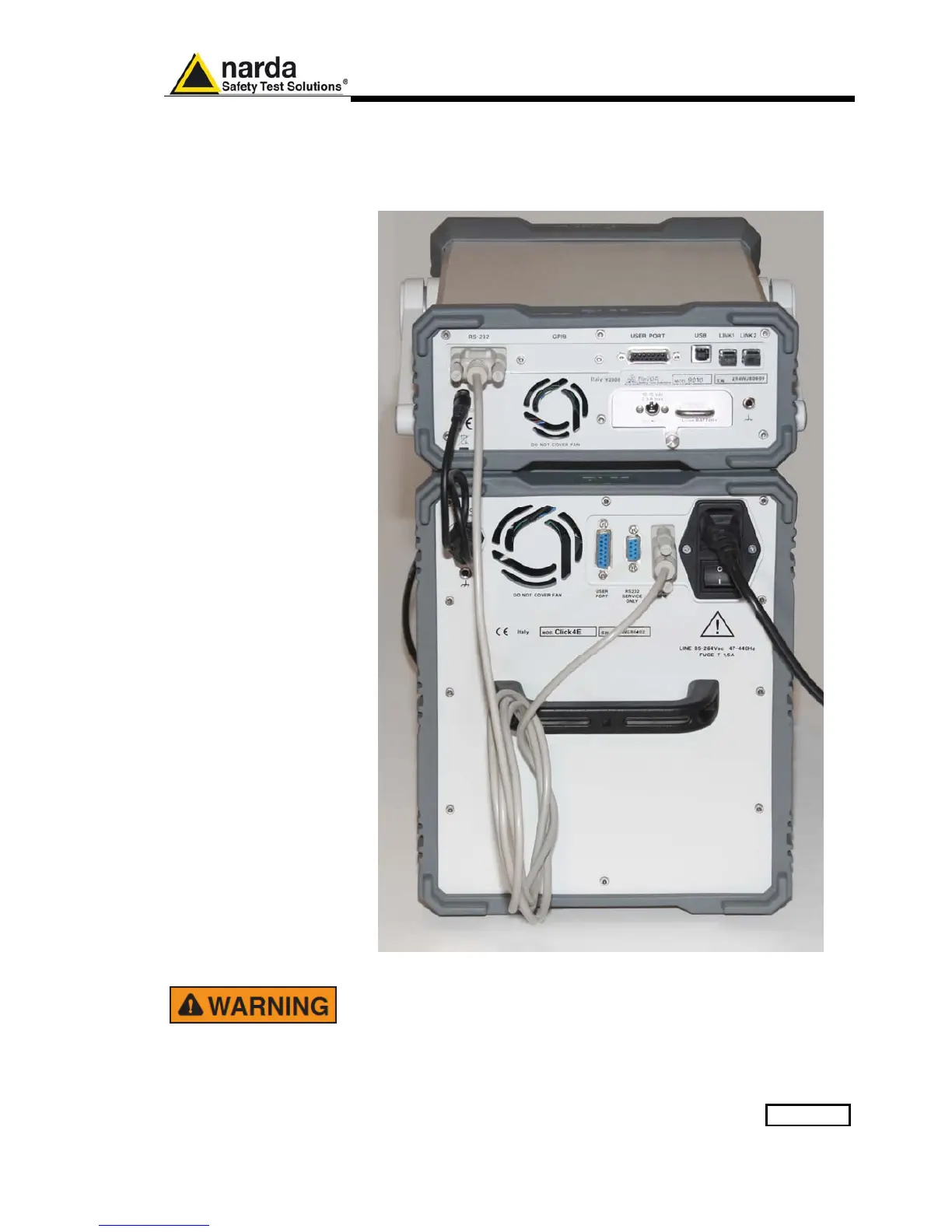

9010 and 9010 Click4E Option system rear view
Always connect all of the cables before of switching on the units.
