CHAPTER 3 SYSTEM DATA PROGRAMMING
– 132 – NWA-008853-001 Rev.3.0
97ch3001.fm
DESCRIPTION DATA
[North America/µ-law countries/A-law
countries]
Provide the voice channel route with No. 7
CCIS facilities.
•
(1)
(2)
Y=90
00-63: Trunk Route No.
0: No. 7 CCIS
Assign a Circuit Identification Code (CIC) to
each trunk number used for voice channels.
•
(1)
(2)
Y=35
000-254: Trunk No.
001-127: CIC
C
CM35
T/R: Transmit/Receive
+: Gain
–: Loss

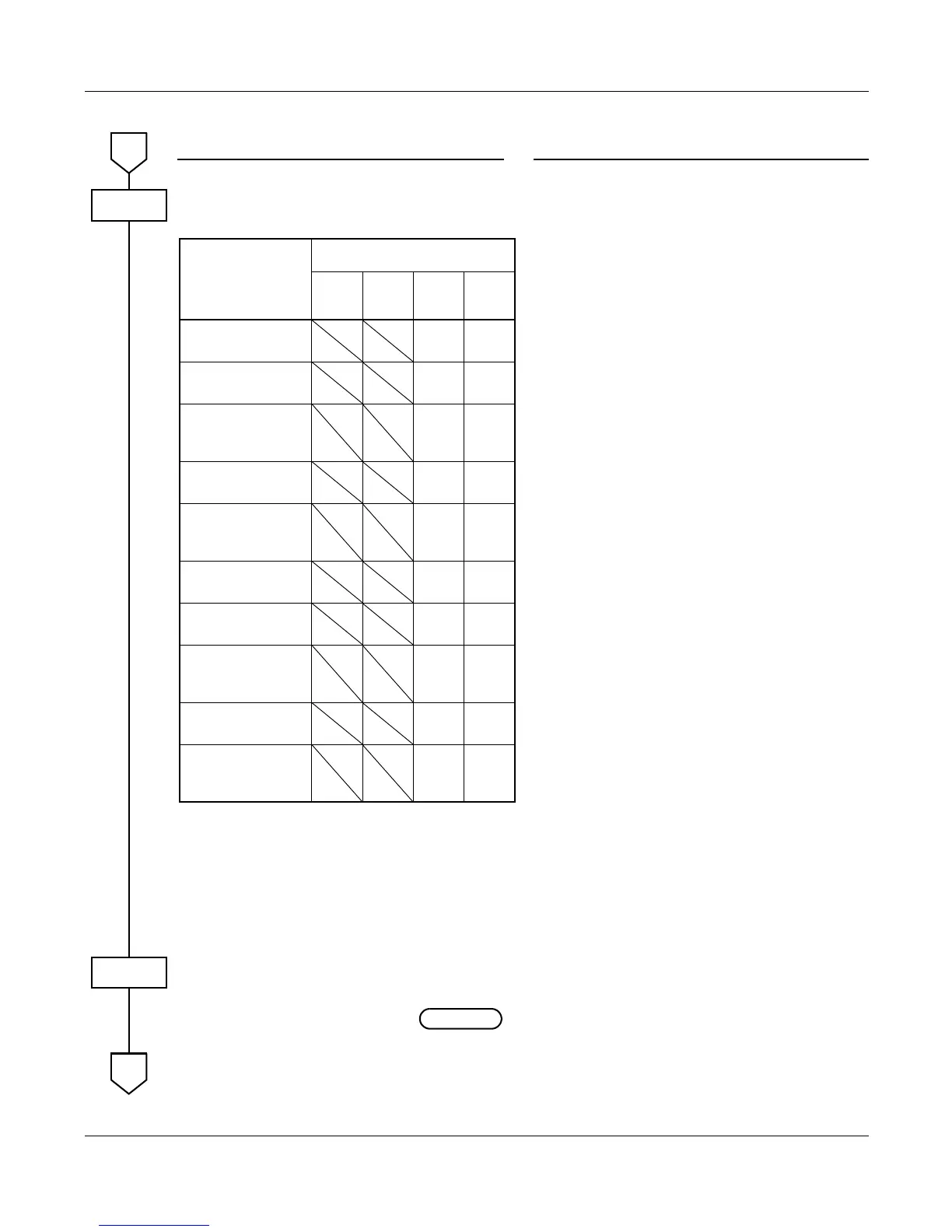

CONNECTION
PATTERNS (A-B)
PAD DATA OF B TRUNK [dB]
DATA
=4 (T/R)
DATA
=5 (T/R)
DATA
=6 (T/R)
DATA
=7 (T/R)
Station-
ODT (4W E&M)
–3/–3 –3/–3
Tone-
ODT (4W E&M)
0/0 0/0
COT/DID/LDT/
ODT (2W E&M)/IPT-
ODT (4W E&M)
–2/–2 0/0
ODT (4W E&M)-
ODT (4W E&M)
0/0 0/0
DTI/BRT/PRT/CCT/
Virtual IPT-
ODT (4W E&M)
0/0 0/0
Station-
LDT/ODT (2W E&M)
–3/–3 0/0
Tone-
LDT/ODT (2W E&M)
0/0 0/0
COT/DID/LDT/ODT
(2W E&M)/IPT-
LDT/ODT (2W E&M)
0/0 0/0
ODT (4W E&M)-
LDT/ODT (2W E&M)
0/0 0/0
DTI/BRT/PRT/CCT/
Virtual IPT-
LDT/ODT (2W E&M)
0/0 0/0
CM30
INITIAL
D
ANALOG CCIS PROGRAMMING
