NMC-PRO Installation Manual
121Page

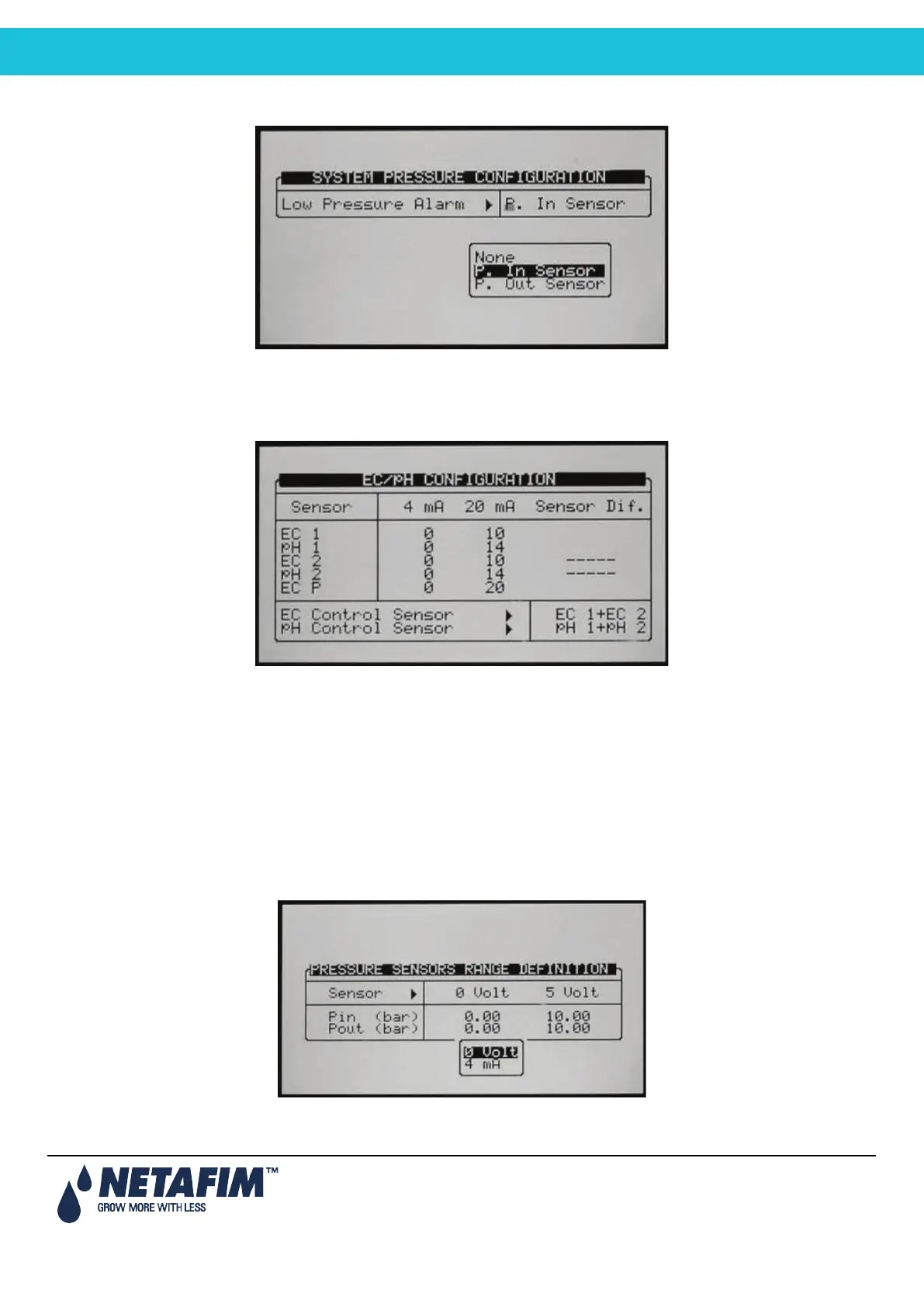

11.10 System Pressure Configuration
Define which pressure sensor (inlet or outlet) should be used as the system’s pressure. This sensor can later be
defined to stop the system in case of low pressure (see table 1.7).
11.11 EC/pH Range Definition
Define the range of the EC/pH transmitters.
• Default settings for Netafim EC/pH transmitters is:
EC: zero to 10 mS
PH: zero to 14 ppm
• EC Control Sensor: Define which EC sensor should be used for control. When setting EC 1 + EC 2, EC1 will
be used for control, and EC2 will be used for verification.
• pH Control Sensor: Define which pH sensor should be used for control. When setting pH 1 + pH 2, pH1 will be
used for control, and pH2 will be used for verification.
11.12 Pressure Sensor Range Definition
• 0 – 5 Volt or 4 – 20 mA: Use the arrow keys to move the cursor to the 0 Volt (4 mA), press ENTER to switch
between 0 – 5 Volt and 4 – 20 mA.
