SENSOR INSTALLATION AND DEFINITION

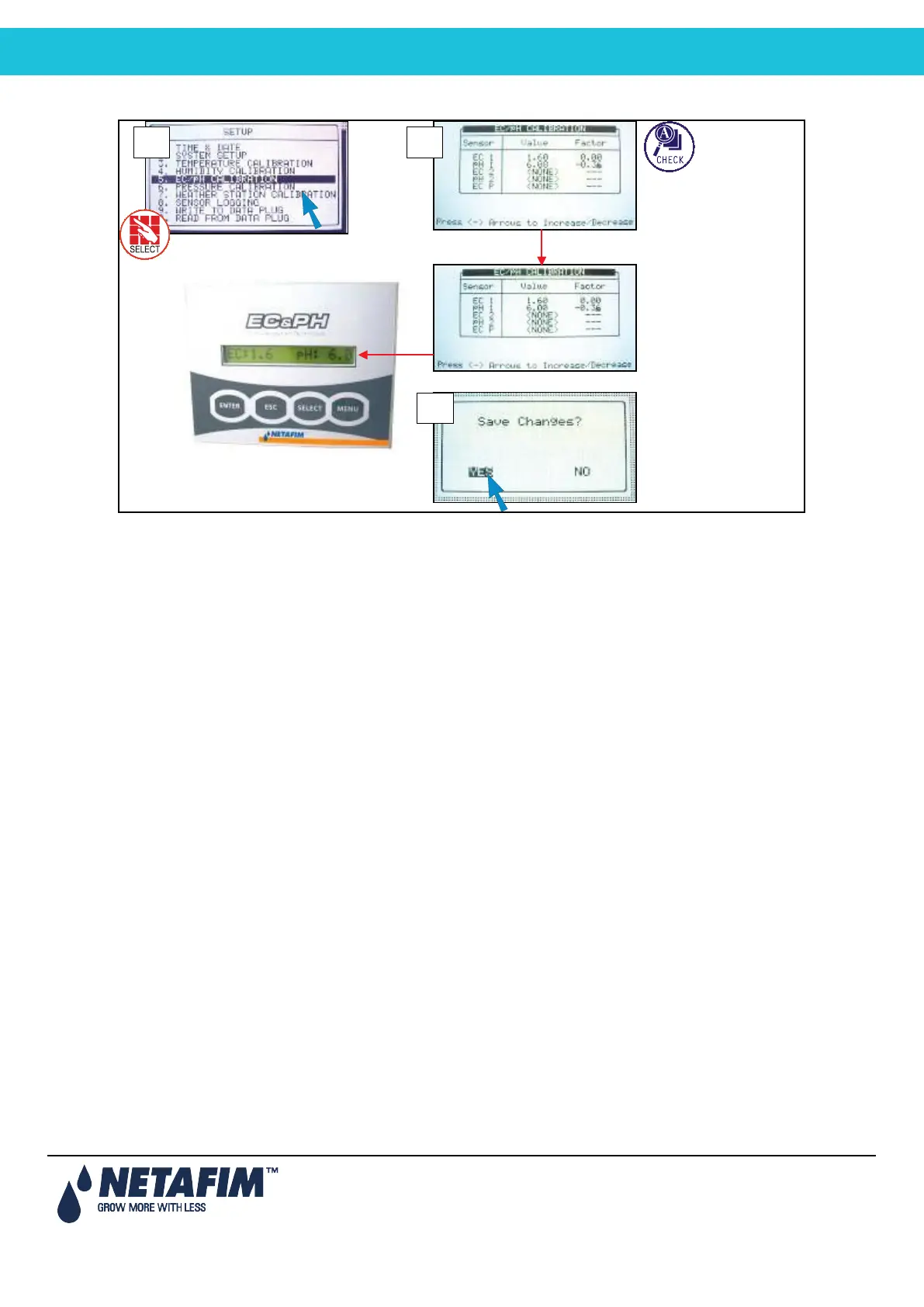

17.1.3 Pro pH Calibration

In Setup select EC/pH Calibration

IF EC and pH

numbers match

on both screens;

if not:

Use arrows to

increase/decrease value so

numbers match

• ENTER when values

match
