NMC-PRO Installation Manual
21Page
4.2 Output Terminal
• Analog Output Card
• 24 VAC Connection
• Dry Contact Card
4.2.1 Analog Output Card
• Analog Output Card Installation
• Analog Output Card Setup
4.2.1.1 Analog Output Card Installation
1. Verify the following before installing the cards:
NMC Pro Controller firmware is Version 3.7.02 or above
NMC Net Version: 4.07.18
NMC Air: NMC Air does not support NMC PRO Ver 3.7.02. Netafim will notify you when an updated
version of NMC AIR is available.
2. Disconnect the controller from the power.
3. Install the analog cards in the slots indicated in I/O Card Layout, page 19.

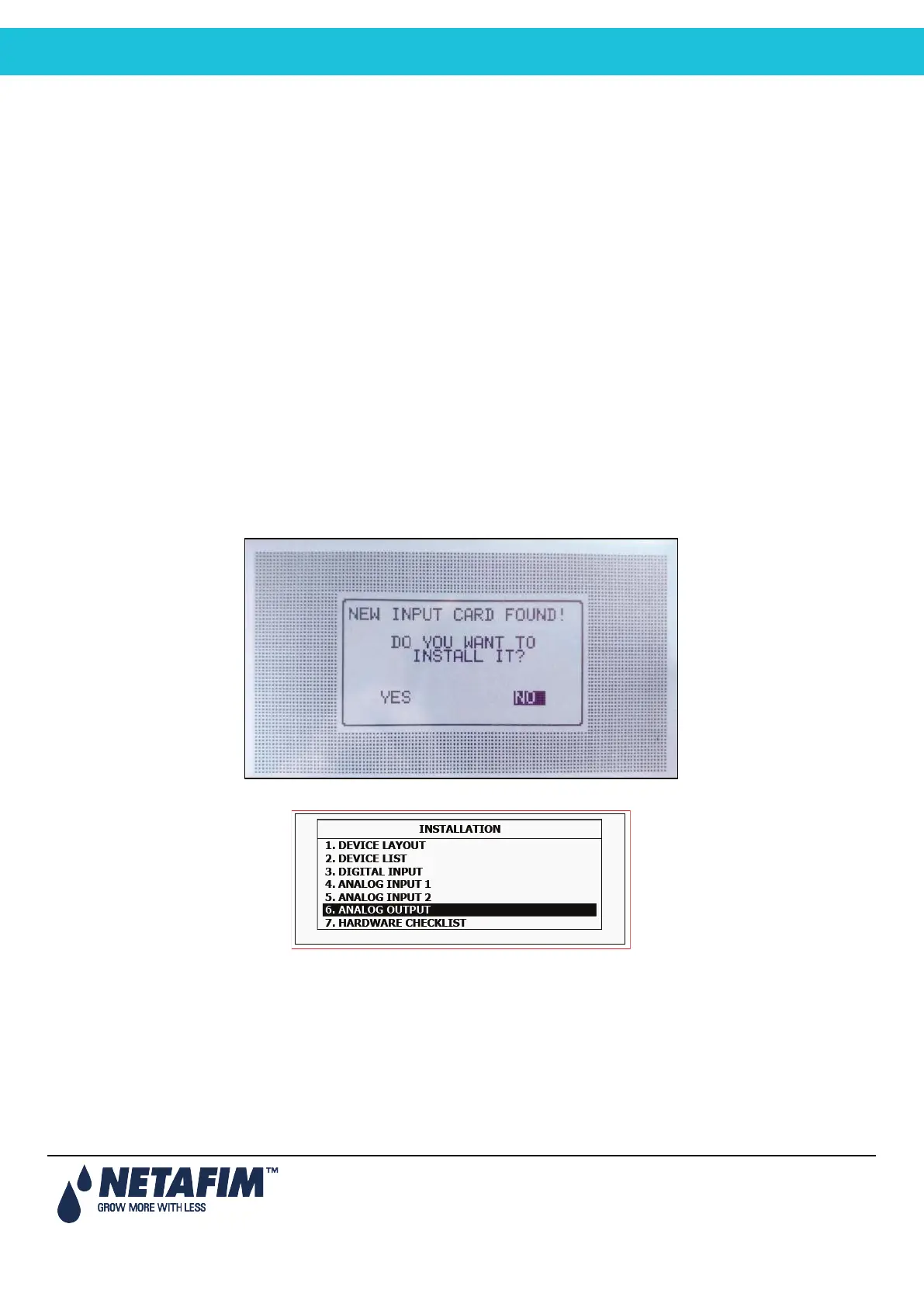

4. Apply power; the NMC Pro will detect the new card(s).
5. In the screen that appears, select YES.
6. Go to the Installation Menu to confirm that the card is installed.
