9.5 Humidity

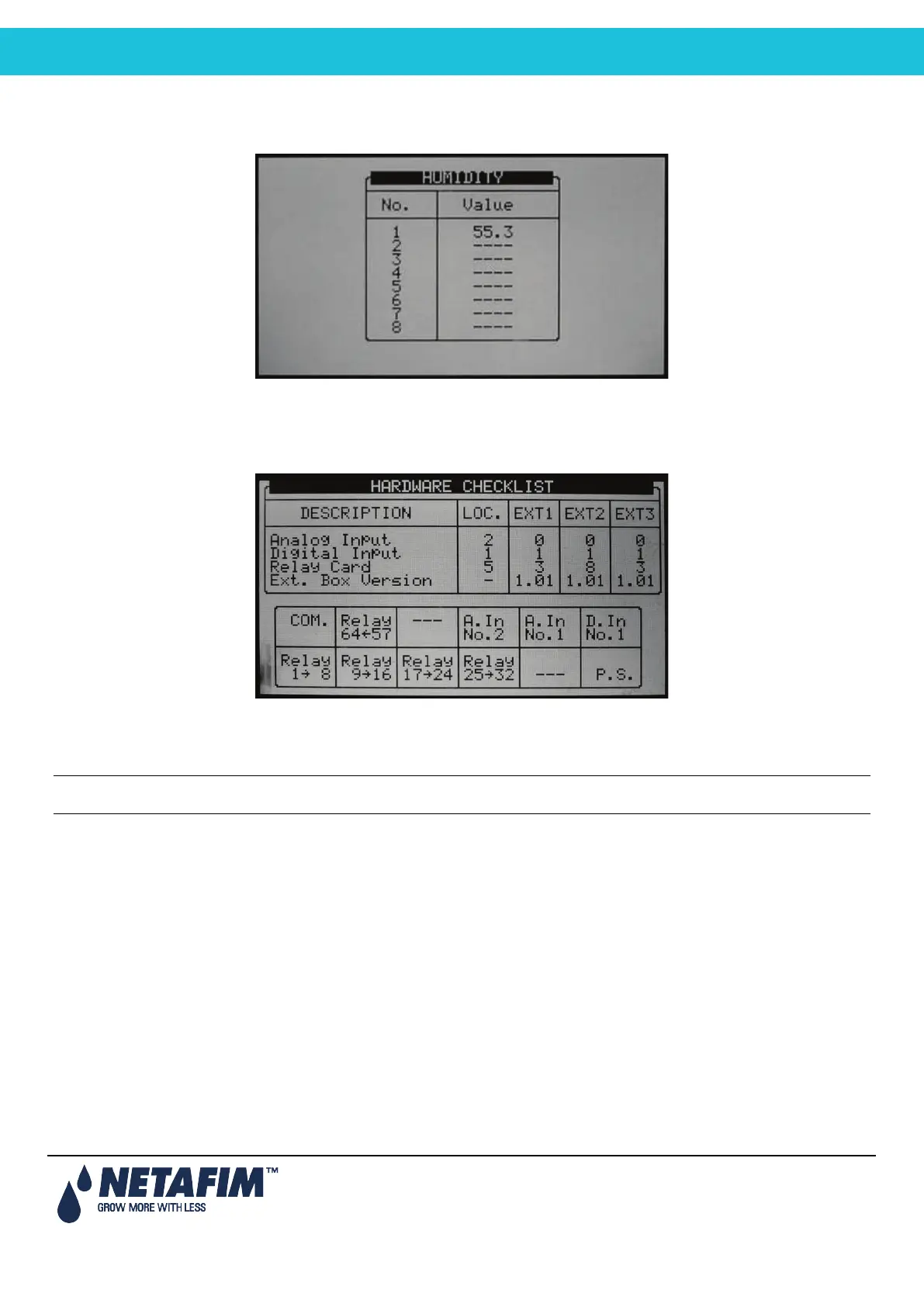

This table shows the current humidity sensor readings in percentage relative humidity.
9.6 Hardware Check List
The Hardware Checklist displays which and how many output and input cards are connected and where they are
connected; local, or in one of the extension boxes. Position of cards connected locally will appear on the bottom table.
To update the Hardware Checklist, disconnect the NMC-Pro from the power supply or perform a cold start procedure.
The bottom row shows 24 VAC output cards, dry contact output cards and power supply. The upper row shows dry
contact output cards, analog and digital input cards, and communication card.
Note: Notice that in the large boxes this table should be turned left to see actual cards position. For example the
communication card (COM.) will actually be on the bottom left side of the box.
