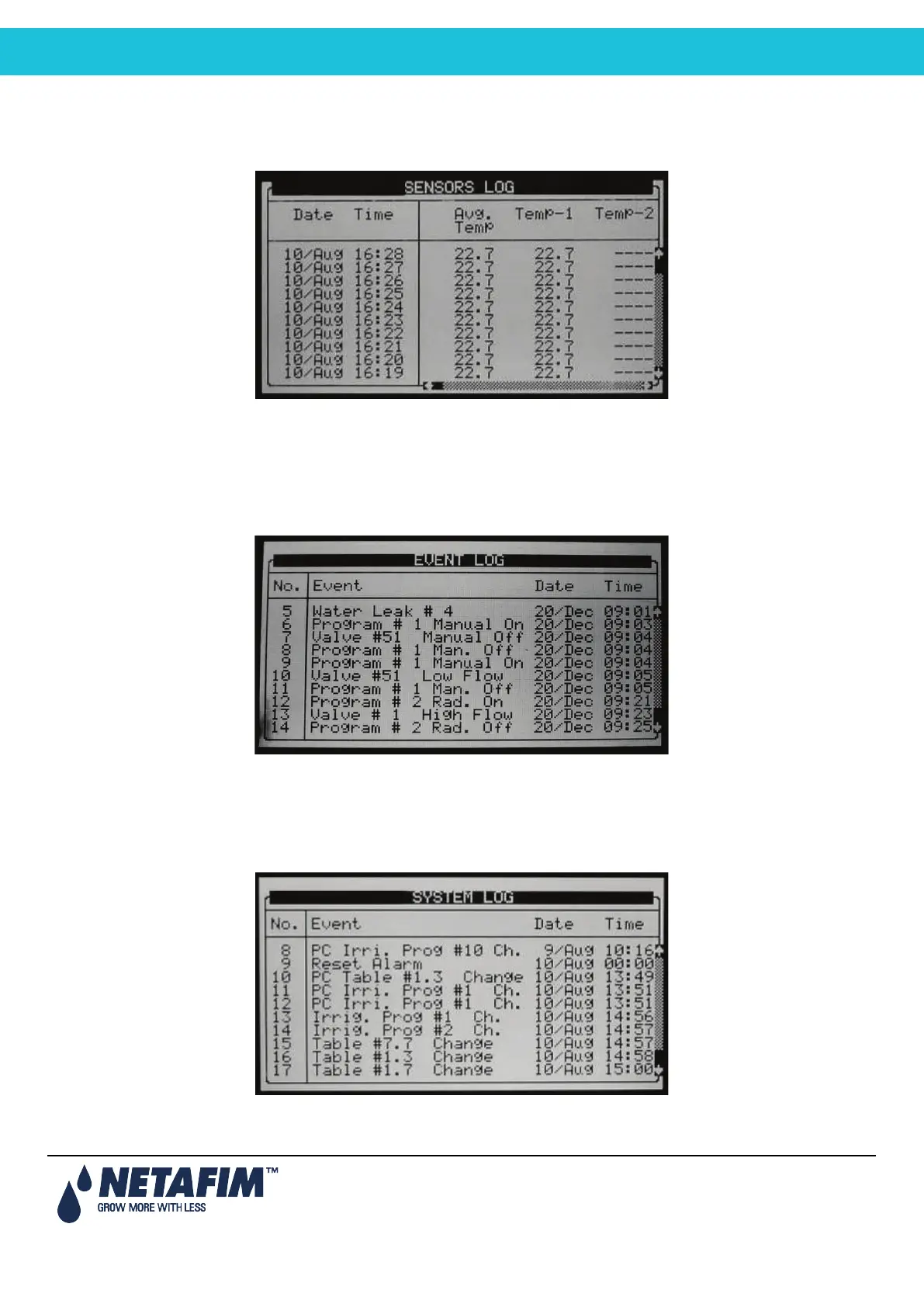

8.11 Sensors Log
The Sensors Log Table includes history of average measurements of logged sensors. To define which sensors should
be logged and the averaging interval refer to table 6.2.
The Sensors Log Table contains up to 10,000 data fields. Date and time are two fields per line and every sensor is an
additional field. For example: logging of two sensors uses four data fields; two for time and date and one for each
sensor. In this case, the table will consist of a maximum of 2,500 lines.
8.12 Event Log
The table provides information of all the processes performed by the NMC-Pro including their time and date.
The table consists of the last 999 events.
8.13 System Log
This table provides information of all the system changes. Examples of system changes are changes of triggered by
the controller, the PC communication, a power off, etc.
The table displays of the last 999 events.
