SENSOR INSTALLATION AND DEFINITION
17 APPENDIX D - SENSOR INSTALLATION AND
DEFINITION
• EC – pH Sensor Connection, page 147
• Measuring Box Connection, page 151
• Humidity Sensor Definition, page 152
• Pyranometer Connection – Netafim, page 154
• Radiation Sensor Definition, page 155
• Pressure Transducer Connection, page 157
• Wind Direction Connection, page 159
• Sensor and Cable Specifications, page 161

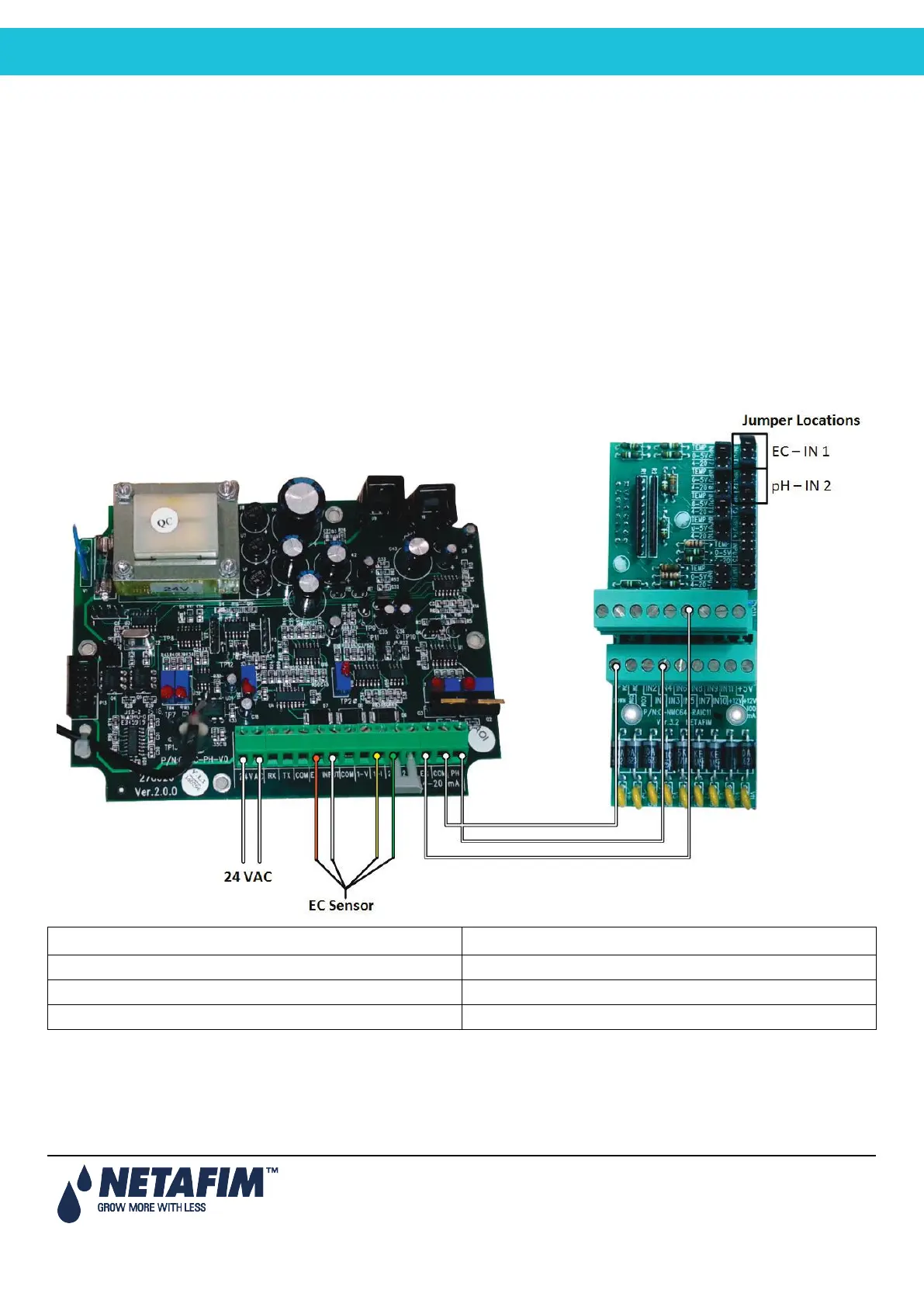

17.1 EC – pH Sensor Connection
Jumper Position Sensor type
Temp Temperature sensor (30 ohm)
0 – 5V Humidity, Radiation, Pressure
4 – 20 mA EX, pH
• EC Sensor Calibration, page 148
• pH Sensor Calibration, page 149
• Pro pH Calibration, page 150
