NMC-PRO Installation Manual

30Page

ELECTRICAL INSTALLATION

4.3.2.2.2 Ech2o 5 Installation

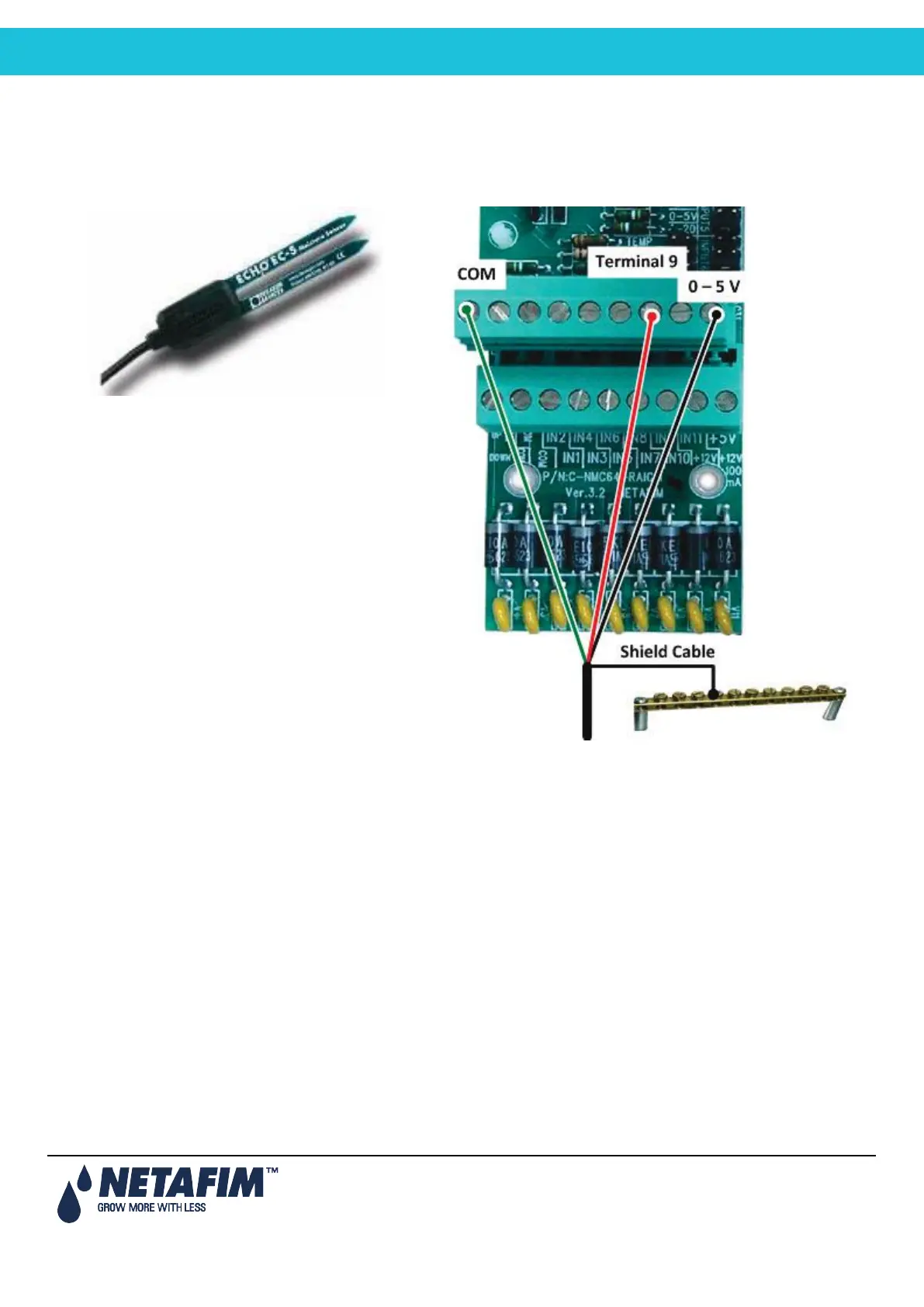

Connect as follows:

• Red: to inputs 1 – 11; jumper 0 – 5V (In the picture below, Red is attached to Terminal 9.)

• Black to +5V

• Bare to COM

WARNING! TO ENSURE INTERFERENCE AND LIGHTNING IMMUNITY, USE SHIELDED

CABLE ONLY (22 AWG MINIMUM)!

WARNING! POWER AND SIGNAL WIRES MUST BE IN SEPARATE CABLES!
