NMC-PRO Installation Manual

39Page

ELECTRICAL INSTALLATION

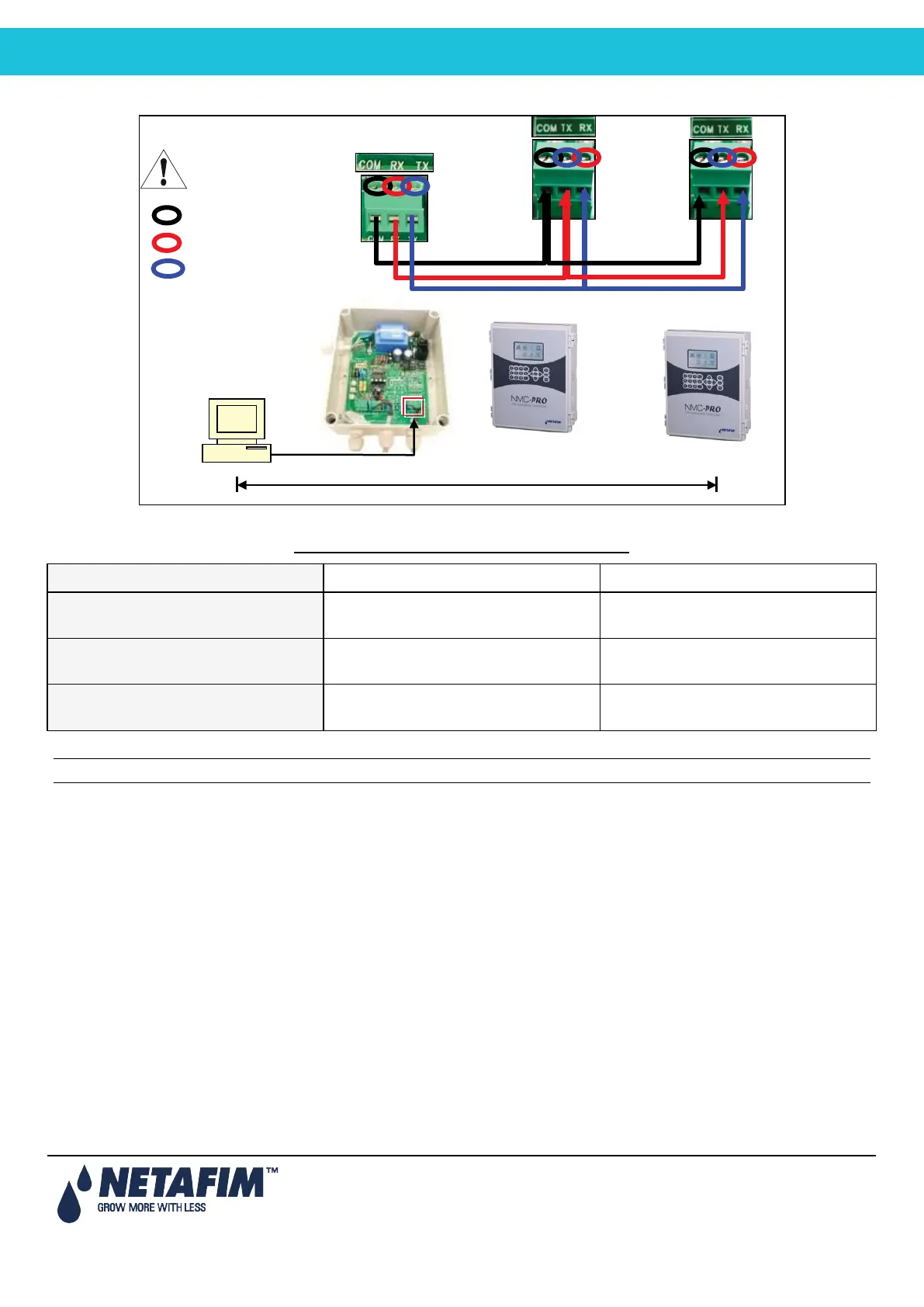

4.4.6.2.2 Option B: RS-232

COMMUNICATION DISTANCE AND BAUD RATE

Baud Rate One Controller 10 Controllers

9600 BPS

2000 meter

1.25 mile

1200 meter

0.75 mile

4800 BPS

2500 meter

1.55 mile

1800 meter

1.12 mile

2400 BPS

3000 meter

1.86 mile

2400 meter

1.49 mile



Baud rate is dependent on cable length and number of controllers.

MUX RS-232

Com

DB9

connector

NOTE

: Use 3 wire

shielded communication

cable.

NMC-PRO Controller 1

NMC-PRO Controller 2
