2.4 Grounding and Power Connections
DP Series/DP Series Type R
19
Power source connection procedure
Check the current capacity of the distribution board before wiring. The wiring must be performed by
a professional engineer.
Before connecting this product to the power source, be sure to cut the power to the distribution
board. Otherwise, an electric shock might occur.
The figure in the following procedure is the figure that single-phase input is selected and when using
the cable holder (option). For cable holder installation, see
7.6
.

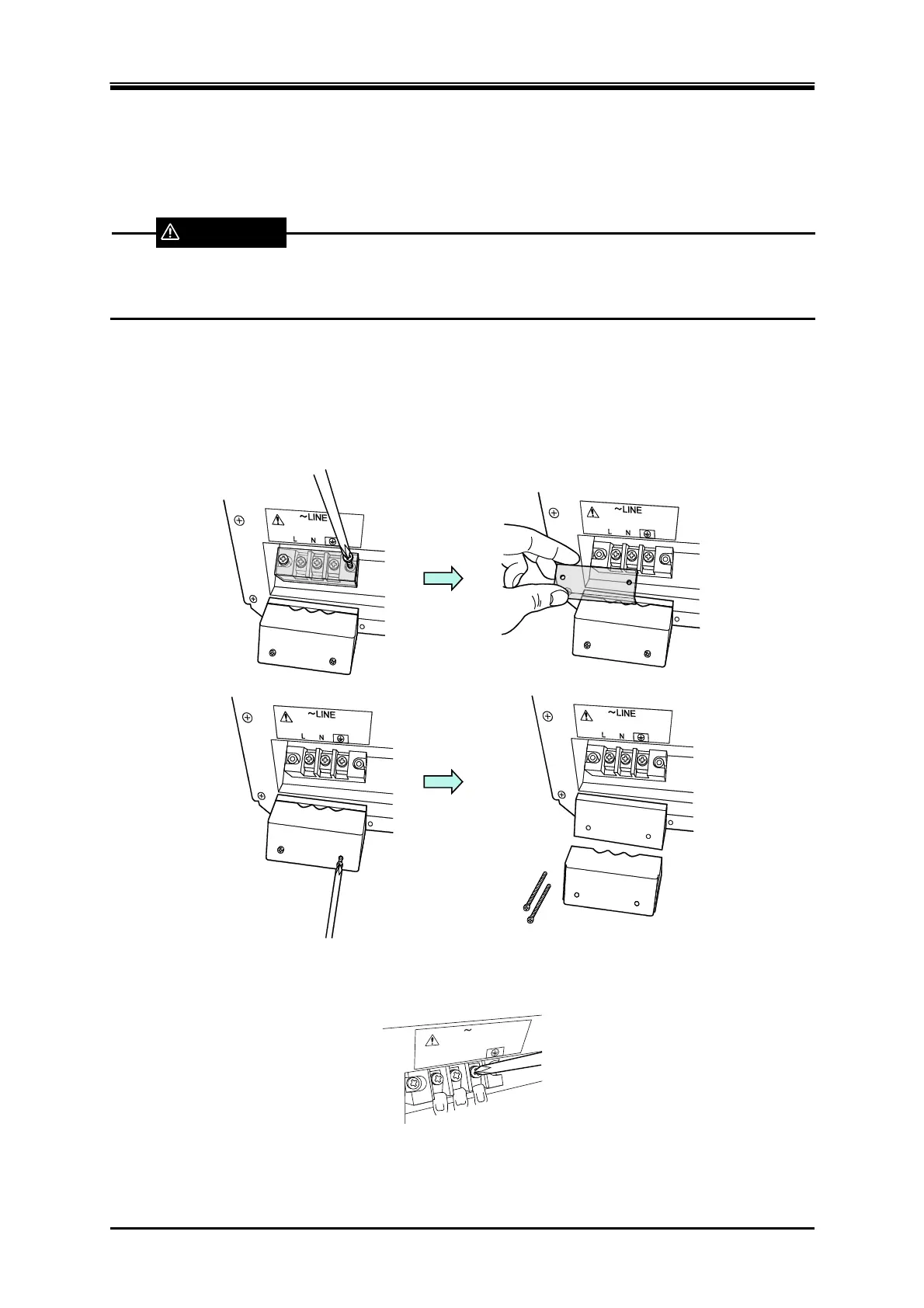

1.
Remove the resin-molded power input terminal cover and the cable holder (option).
2.
Connect the power cable to the power input terminal of this product. Be sure to tighten the
screws firmly.
L
N
LINE
WARNING
To Next Page
