5.2. WGPublic
WGPublic is the solution adapted to airports, shopping and congress centres or other public places
like libraries, public squares, etc. where there is no reception for registering or acquiring a voucher.
With the WGPublic solution, the users can register themselves online to use the available Internet
system.
5.2.1. Configuration example

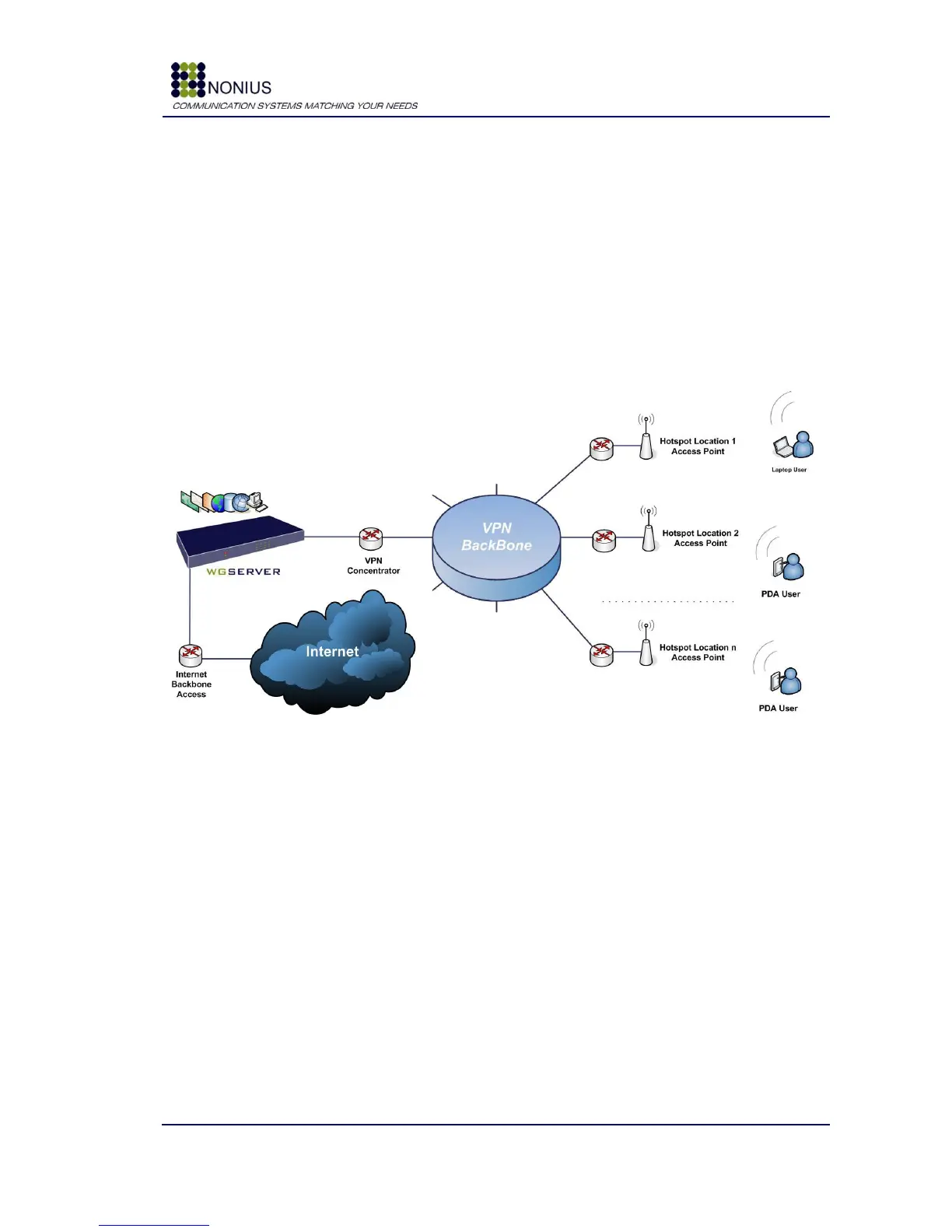

Figure 99: WGPublic – Configuration Example
5.2.2. Project Steps
Network and Services Planning
The hotspot interface of the WGS5000 is connected to a router that is connected, via VPN, to the
remote routers where the access points are connected to. The users receive the network
configuration information via DHCP. There is a DHCP server in each Access Point and the IP address
range provided by each DHCP server is unique (for example, AP1 works in range 192.168.150.0/24,
AP2 works in range 192.168.151.0/24, etc.). In this way it is simple to distinguish the several
hotspots.
The captive portal and the AAA server run on the WGS5000, meaning that the login page is the
same in every hotspot and a user that registers himself in one of the hotspots may use the same
login data in all the other hotspots.
The user‟s registration will be done online via the login page.
