4.5.6. VPN IPsec
This submenu allows the establishment of Virtual Private Networks (VPN) between two WGS5000‟s.
A VPN is a private network that is configured within a public network (a carrier's network or the
Internet) in order to take advantage of management facilities of large networks. VPNs are widely
used by enterprises to provide site-to-site connections to branch offices and to allow mobile users
to connect to their company LANs. At the moment only a point-to-point VPN can be established,
i.e., only two WGS5000‟s can be connected at once.

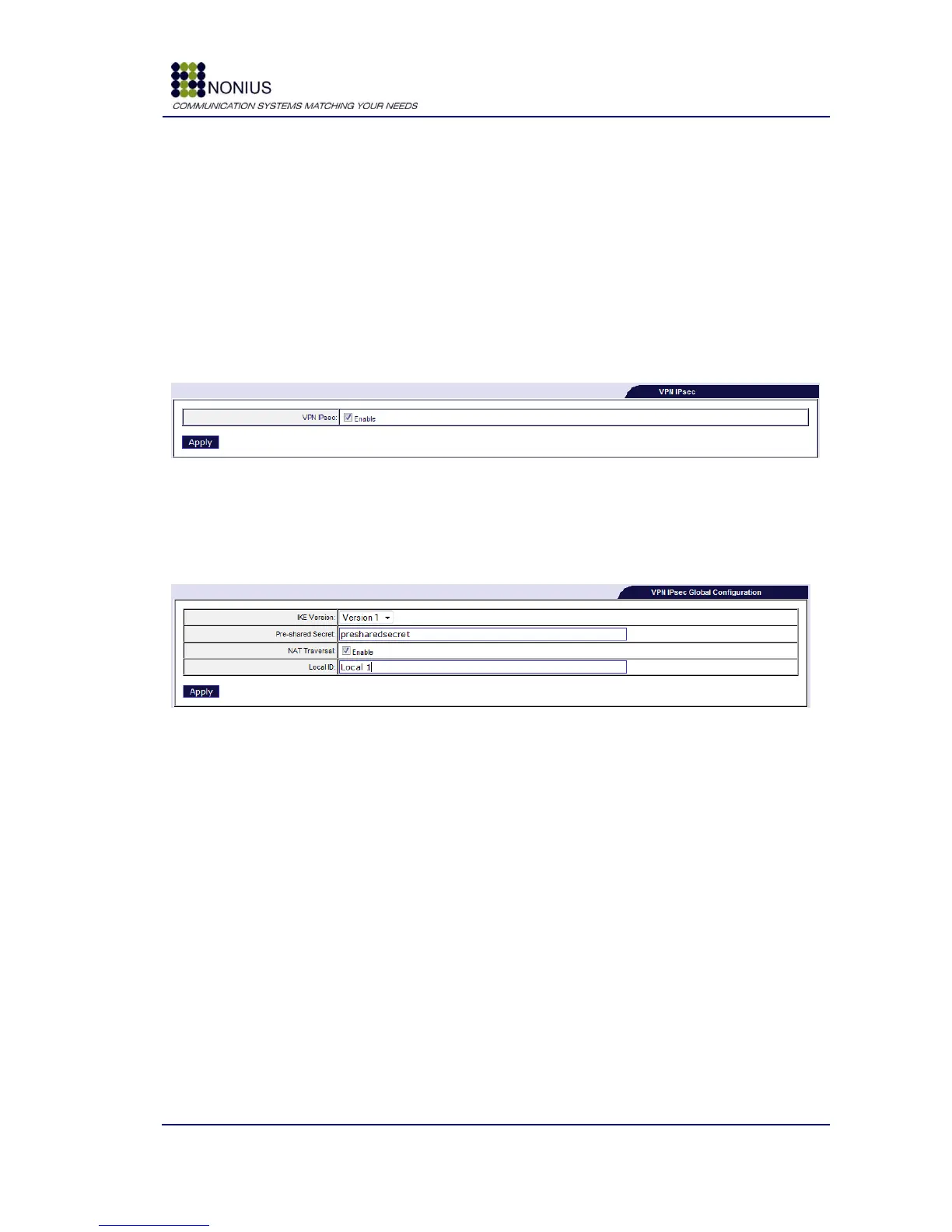

Figure 19 - Enable option for VPN IPsec
Enable VPN IPSec: Check to enable the VPN IPSec configuration or uncheck to disable it.
Figure 20 - VPN IPsec Global Configuration
After enabling the VPN, the global configuration options and the VPN IPsec Configurations must be
filed.
IKE Version: choose the version IKEv1 or IKEv2 of Internet Key Exchange Protocol;
Pre-shared Secret: common secret used on authentication process. Must be equal in both peers;
NAT Traversal: enable this option if the WGS5000 is behind NAT (Network Address Translation);
Local ID: if NAT Traversal is enabled, the local ID of each WGS5000 is required and must be
different from each other.
