Nordson Universal Series User Manual

Description
2-2
Part 1079832_04
E 2015 Nordson Corporation
Introduction (contd)
11
12
2
3
4
8
7
9
10
6
1
5

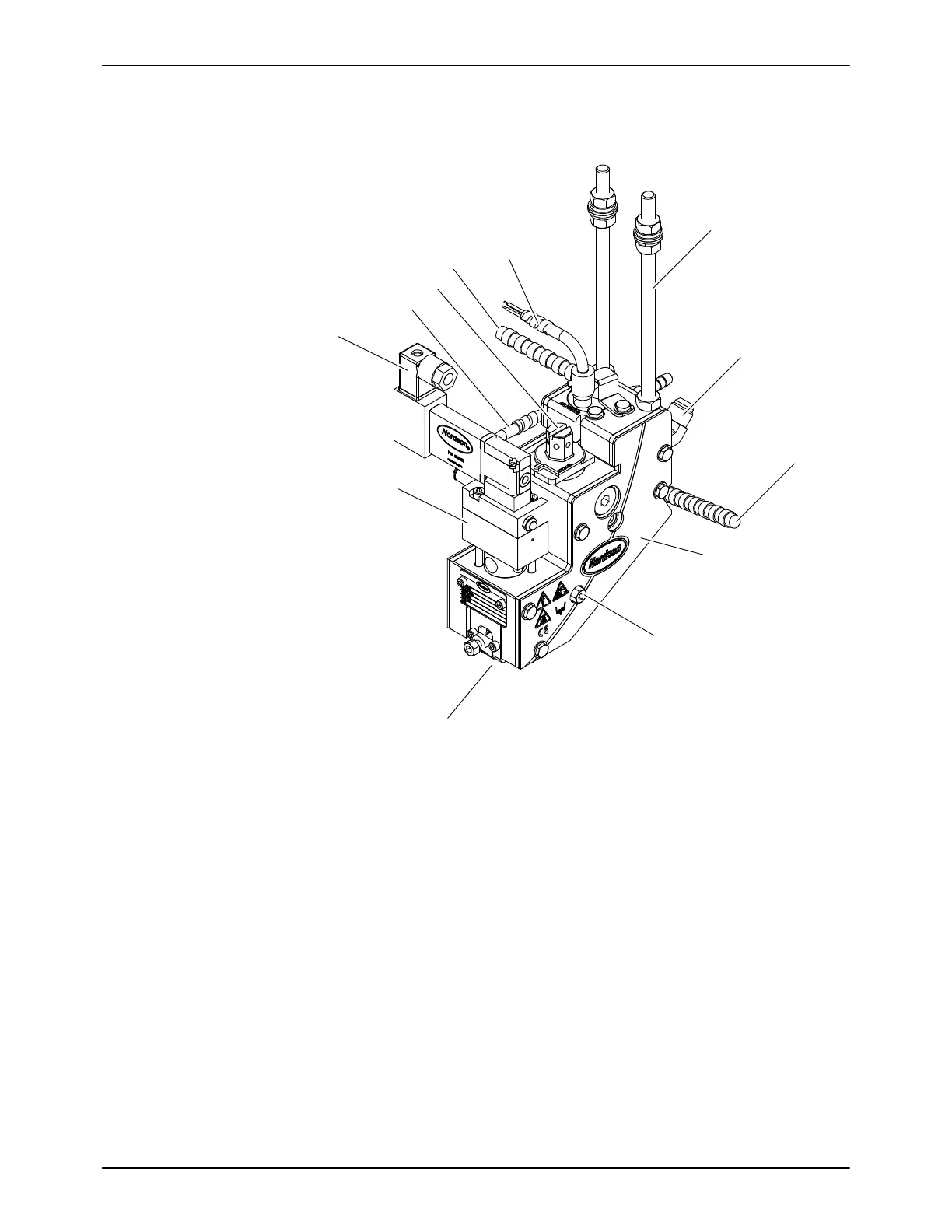

Figure 2-2 Key parts of a typical single-module high-speed spray applicator
1. Mounting rod
2. Hose connector
3. Heater (adhesive manifold)
4. Cover
5. Drain valve
6. Nozzle location
7. Speed‐Coat control module
8. Solenoid valve
9. Sensor (adhesive manifold)
10. Filter
11. Heater (heated air manifold)
12. Sensor (heated air manifold)
