Description
2-3
Part 1079832_04
E 2015 Nordson Corporation
3
4
7
6
10
1
6
5
9
2
11
8

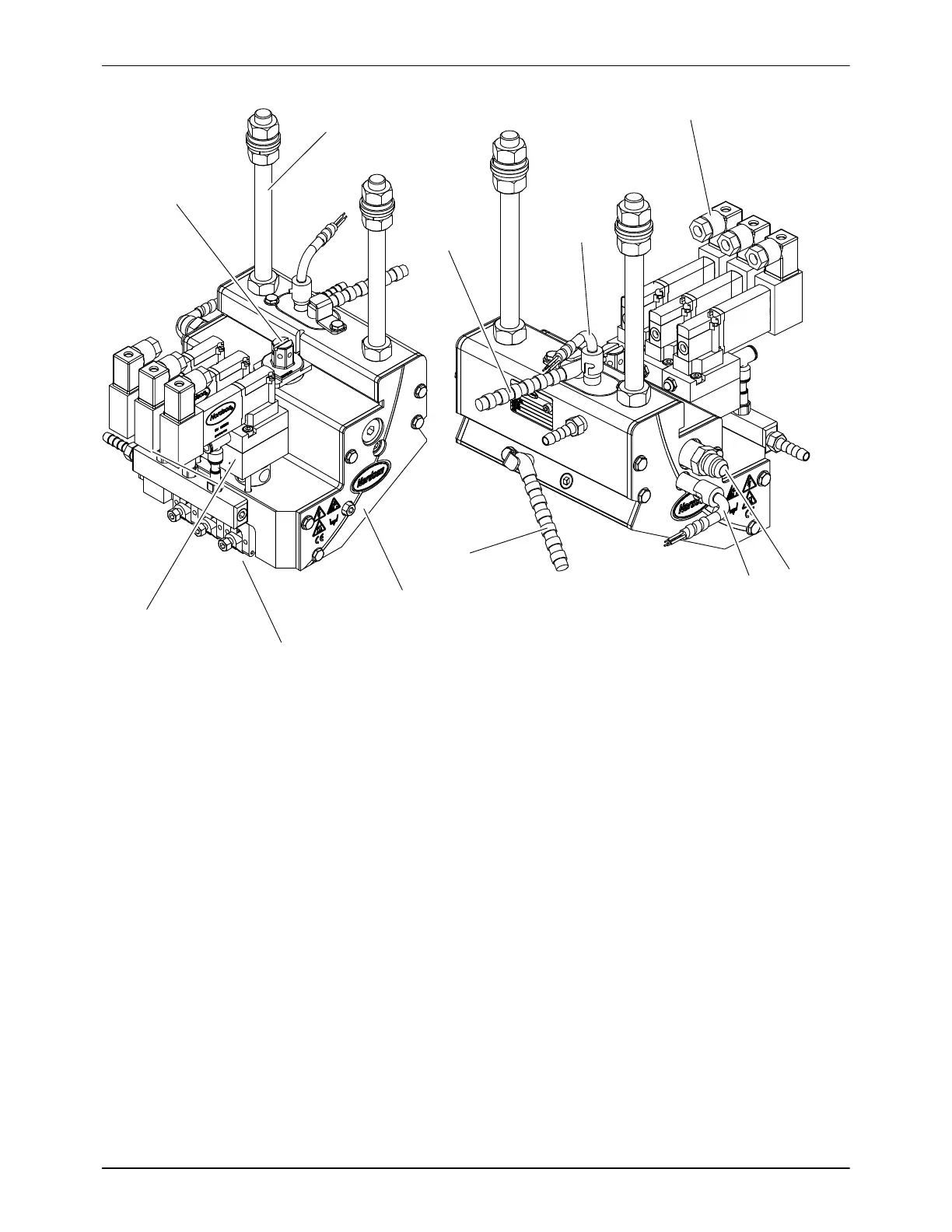

Figure 2-3 Key parts of a typical multi-module high-speed spray applicator
1. Mounting rod
2. Solenoid valve
3. Heater (heated air manifold)
4. Sensor (heated air manifold)
5. Hose connector
6. Sensor (adhesive manifold)
7. Heater (adhesive manifold)
8. Cover
9. Nozzle location
10. Speed‐Coat dispensing
module
11. Filter
