7. To remove an adapter or Universal nozzle:

See Figure 9‐8.

a.. Back the nozzle‐retaining clamp screw all the way out until it stops.

b.. Push the nozzle‐retaining clamp toward the module to eject the

adapter or nozzle.

Opened Closed

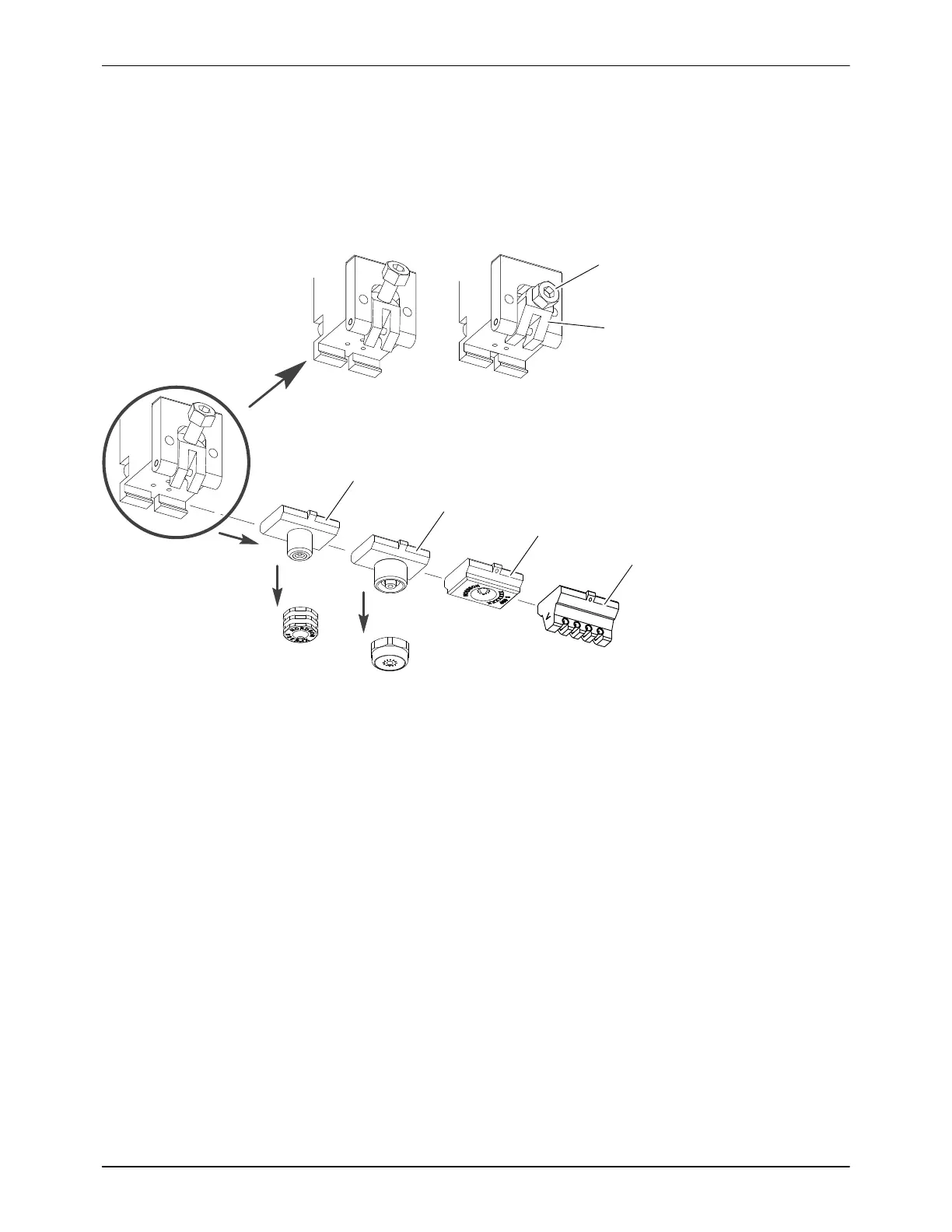

Figure 9-8 Adapter or nozzle removal or installation

1. Nozzle‐retaining clamp screw

2. Nozzle‐retaining clamp

3. Bead adapter and bead nozzle

4. CF adapter and CF disk or unibody

nozzle

5. Universal CF nozzle

6. SureWrap nozzle

Note: Refer to the steps under To remove a CF disk or unibody nozzle or To install a CF disk or unibody nozzle for CFdisk

and unibody nozzle removal/installation instructions.

Note: Additional nozzle types are available. Refer to hot melt spray nozzles on www.nordsonl.com.
