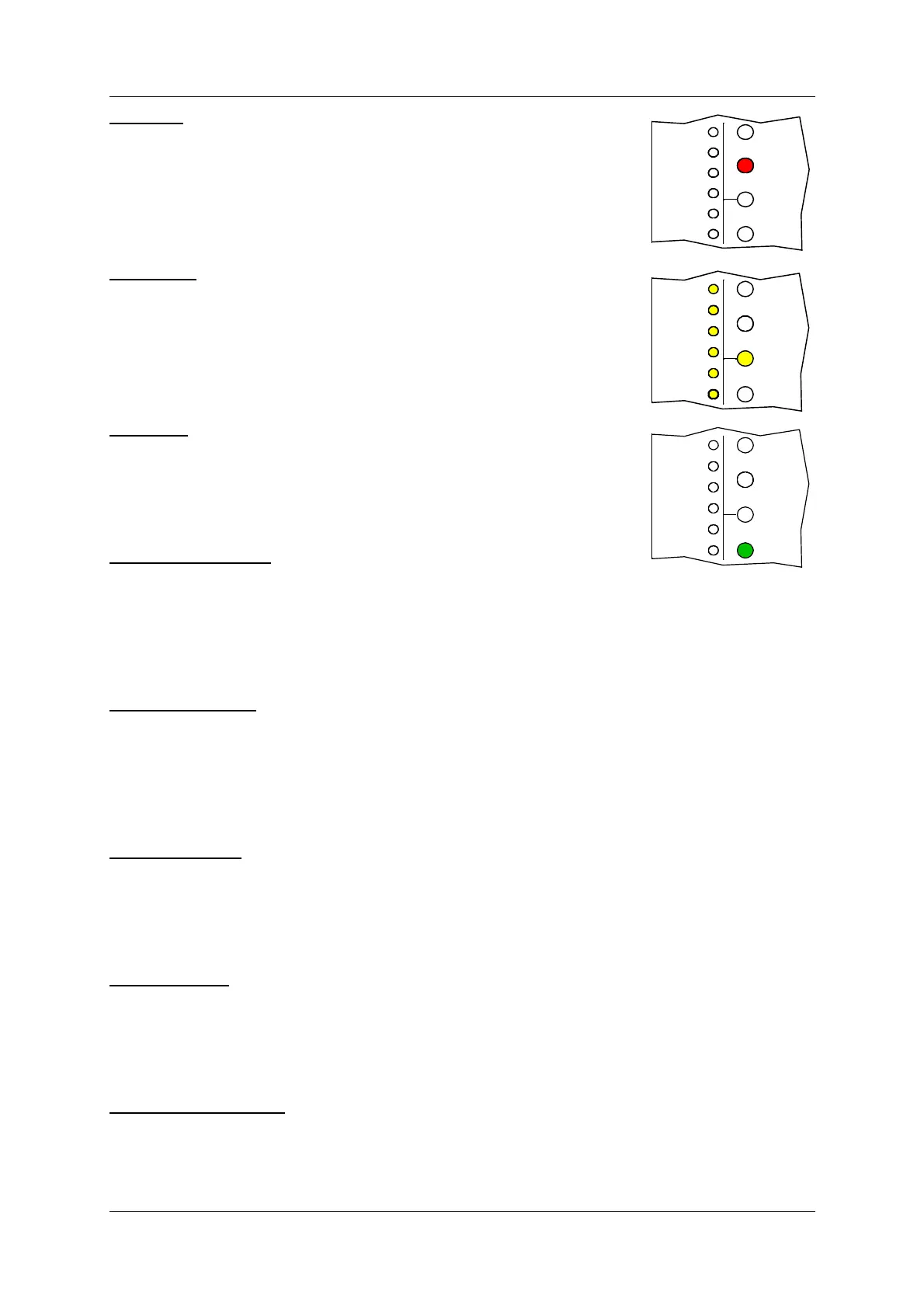

ALARM
Used to:
• Indicate that the ILS has detected an alarm condition.
Activated by:
• One or more alarms present.
WARNING
Used to:
• Indicate that the ILS has detected one or more warning conditions.
Activated by:
• Warning condition(s) detected by RMS.
NORMAL
Used to:
• Indicate that no alarm conditions are detected by the ILS.
Activated by:
• No alarms present.
PARAMeter Warning:
Used to:
• Indicate that there are one or more monitor parameter warnings present. The warnings
from the monitor 1/monitor 2 are voted before displayed.
Activated by:
• One or more monitor parameters outside the warning limits.
Monitor DISAGRee
Used to:
• Indicate that monitor 1 and monitor 2 disagrees on which parameters that are in alarm
state.
Activated by:
• Difference in monitor 1/monitor 2 alarm detection.
BATTery Warning
Used to:
• Indicate that the ILS is running using the 27V battery.
Activated by:
• Loss of mains for charging the 27V battery.
IDENT Warning
Used to:
• Indicate that the ident is faulty for LLZ.
Activated by:
• Loss of ident Morse coding for LLZ.
MAINTenance Warning
Used to:
• Indicate that one or more of the maintenance parameter warnings detected.
Activated by:
