OPERATING MANUAL
5-20
21833-3.4
NORMARC 7013
INSTRUMENT LANDING SYSTEM
Remote Maintenance and Monitoring ©1999 Navia Aviation AS

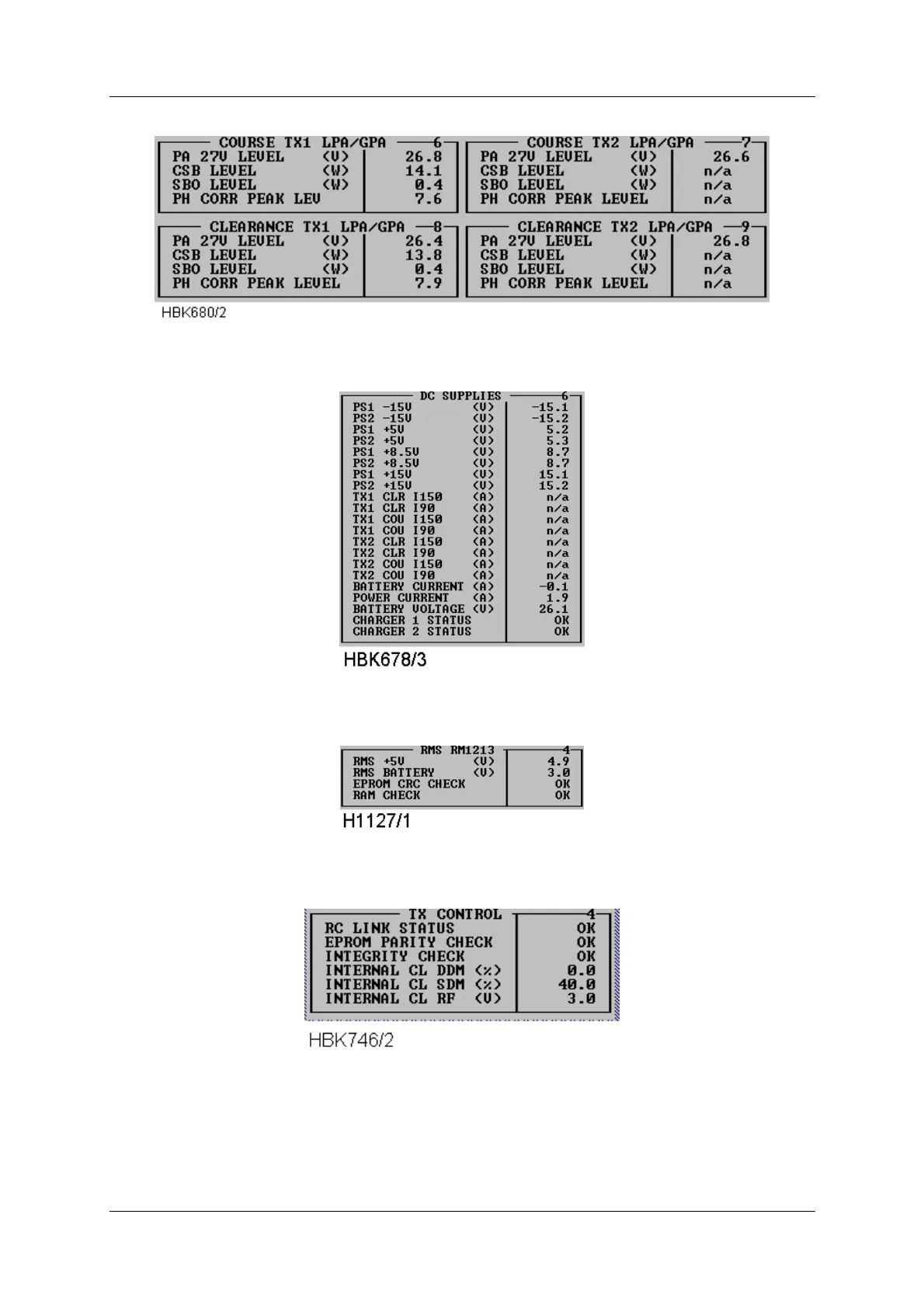

Figure 5-18 PA maintenance parameters
Figure 5-19 DC-Supplies maintenance parameters
Figure 5-20 RMS maintenance parameters
Figure 5-21 TX Control maintenance parameters
5.7.6 User parameters window
Selecting ILS|Measurements|User brings up the window shown below. This window shows
the user defined input/output states and measurements.
