Using the BayStack 350 Series 10/100 Autosense Switch
C-6 893-00992-E
100BASE-FX Fiber Optic Port Connectors
The Models 350F-HD and 350F have 100BASE-FX SC connectors for supporting
switched 100 Mb/s (100BASE-FX) connections over 50/125 and 62.5/125 micron
multimode fiber optic cable.
Figure C-5
shows a 100BASE-FX multimode fiber optic port connector and its
pin assignments.

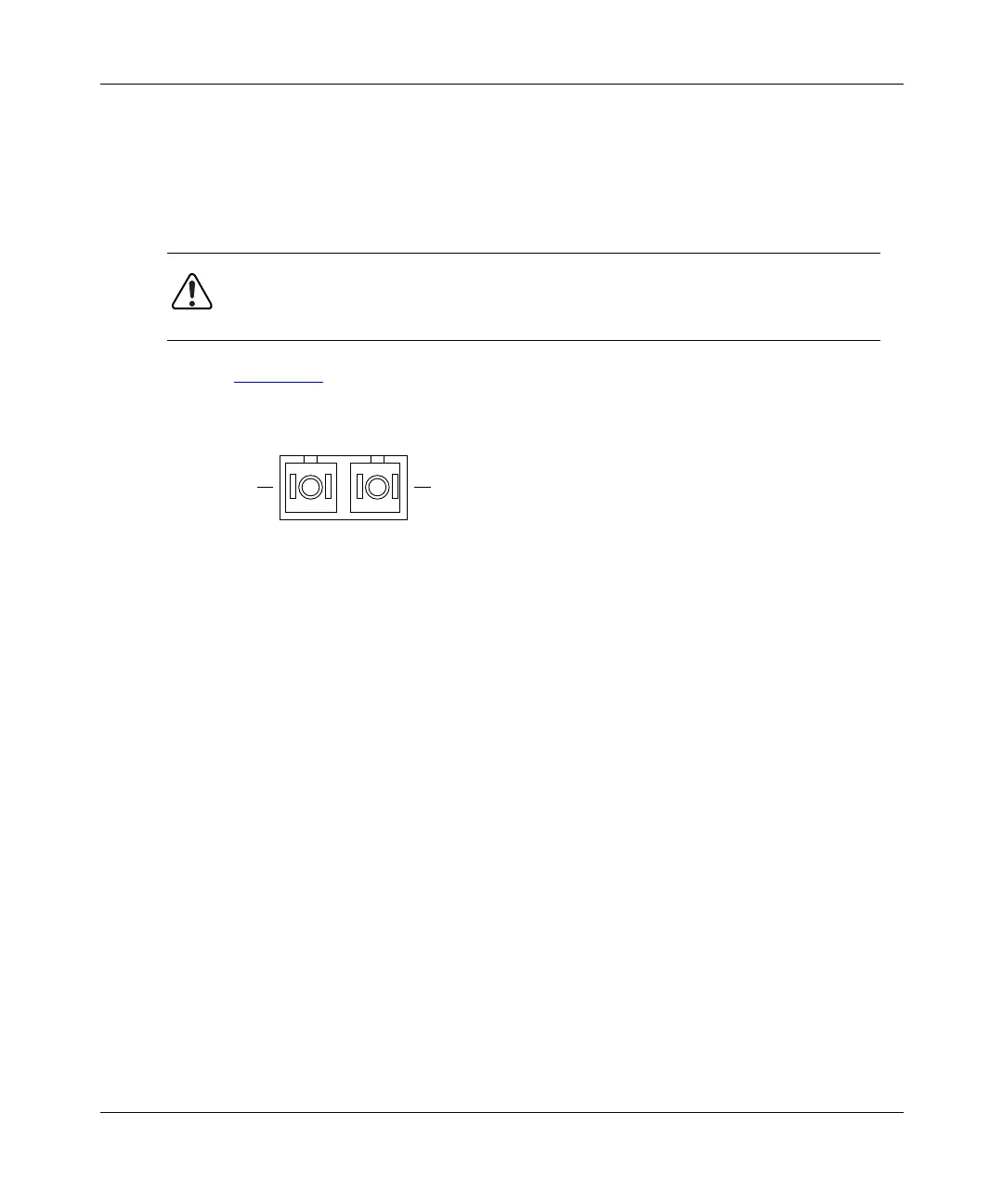

Figure C-5. 100BASE-FX multimode fiber optic port connector
Warning:
Fiber optic equipment can emit laser or infrared light that can injure
your eyes. Never look into an optical fiber or connector port. Always assume
that fiber optic cables are connected to a light source.
997EA
Tx Rx
