2. System Configuration
2-1. System configuration

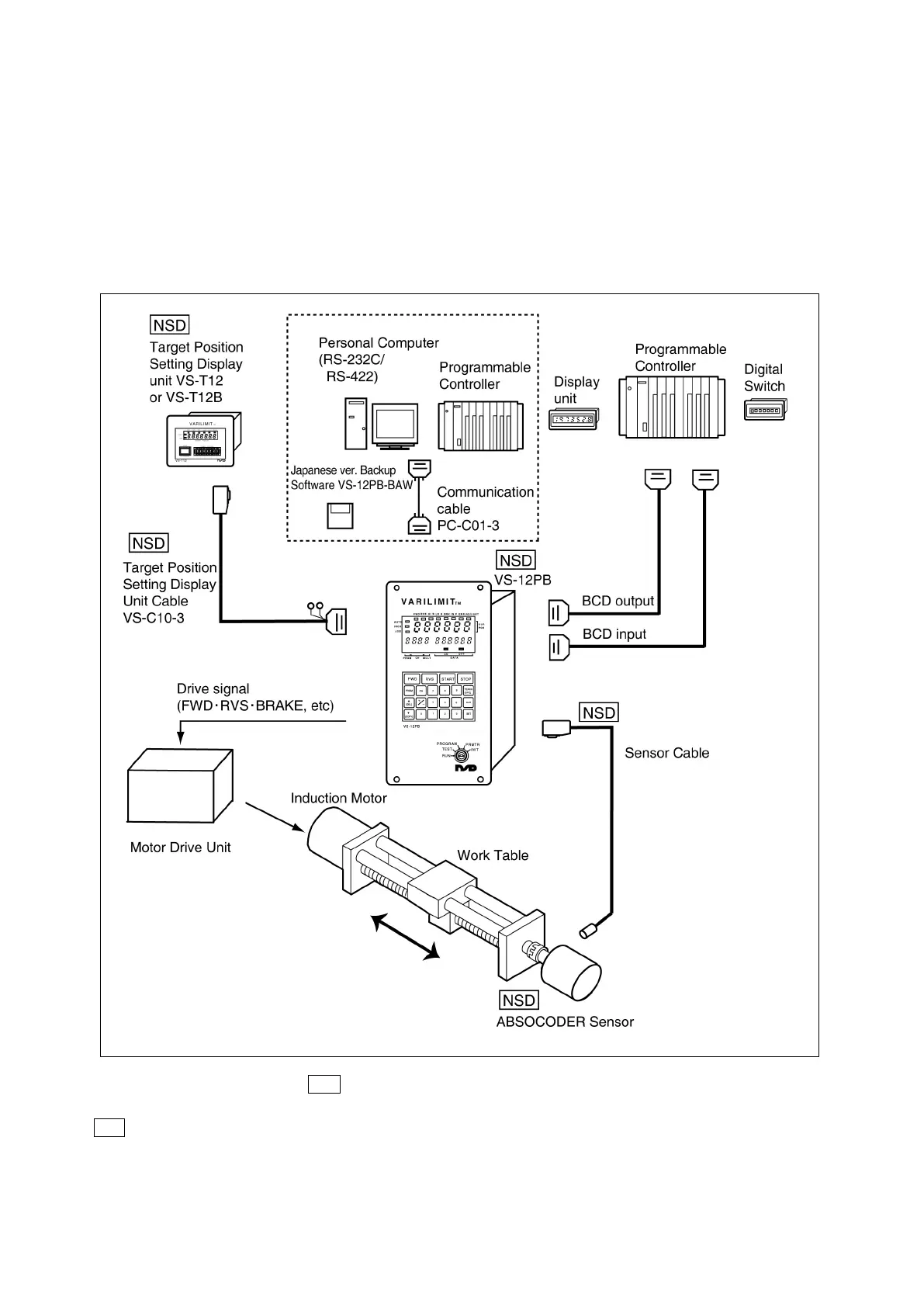

This basic VS-12PB system configuration is shown below.
●Basic System Configuration
NSD components are indicated by NSD mark. All other components must be supplied by the user.
Note
When the VS-T12 or VS-T12B setting display unit is used, settings cannot be specified by communications with a
personal computer or programmable controller because the VS-T12 or VS-T12B uses the controller’s communication
port.
