NSD VARILIMIT VS-12PB User Manual

● APPX-1 ●
APPENDIX

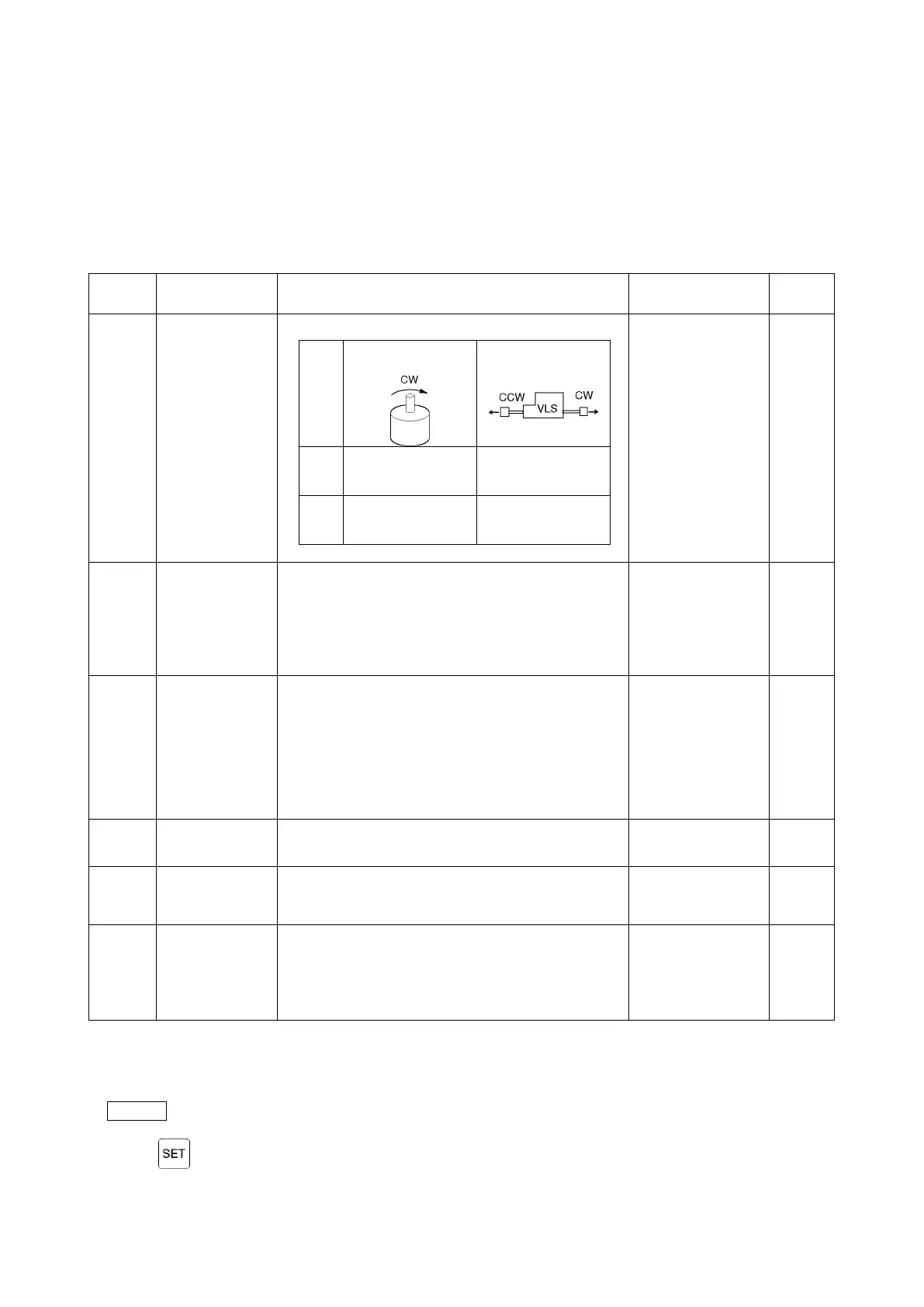

APPENDIX 1. Initial Setting Data Sheet
Be sure to specify the following initial settings (initial Nos. 90 to 95) before beginning VS-12PB operation. Failure to
do so will result in Error 51 when the TEST or RUN mode is selected.
Init. No. Item Description Setting Data
Setting
value
90
Sensor rotation
direction selection
Designates the sensor rotation (travel) direction.
CW: 0
CCW: 1
Multi-turn type
Linear type
CW
Current position value is
increased by CW
rotation.
Current position value is
increased by rightward
direction travel.
CC
W
Current position value is
increased by CCW
rotation.
Current position value is
decreased by leftward
direction travel.
91
Decimal point
setting
Designates the decimal point position.
000000. : 0
00000.0 : 1
0000.00 : 2
000.000 : 3
00.0000 : 4
0.00000 : 5
92
Sensor selection Designates the sensor which is to be used. MRE
VLS-256PWB
VLS-512PWB
VLS-1024PW
VLS-512PYB
VLS-1024PYB
VLS-2048PY
: 0
: 3
: 4
: 5
: 6
: 7
: 8
93
Scale length Designates the maximum distance over which position
detection is possible.
Setting range
[100 ~ 999999]
94
Minimum current
position value
Designates the minimum current position value which will be
displayed.
Setting range
[-99999 ~ 1000000
-scale length]
95
Current position
value
Designates the point within the actual detection range where
the machine is currently positioned.
Setting range
[Min. current pos.
value to (Min. current
pos. value + scale
length -1)]
Setting data designated at the Controller should be recorded at Setting Value section above.
Important
If Error 51 displays when the TEST or RUN mode is selected, key in the setting data using the ten-key pad
and the key, even if the entered setting data is the same as the displayed data.
