Oki MC770 - CU Board Cover

45584901TH Rev.1
6-3 /
Oki Data CONFIDENTIAL

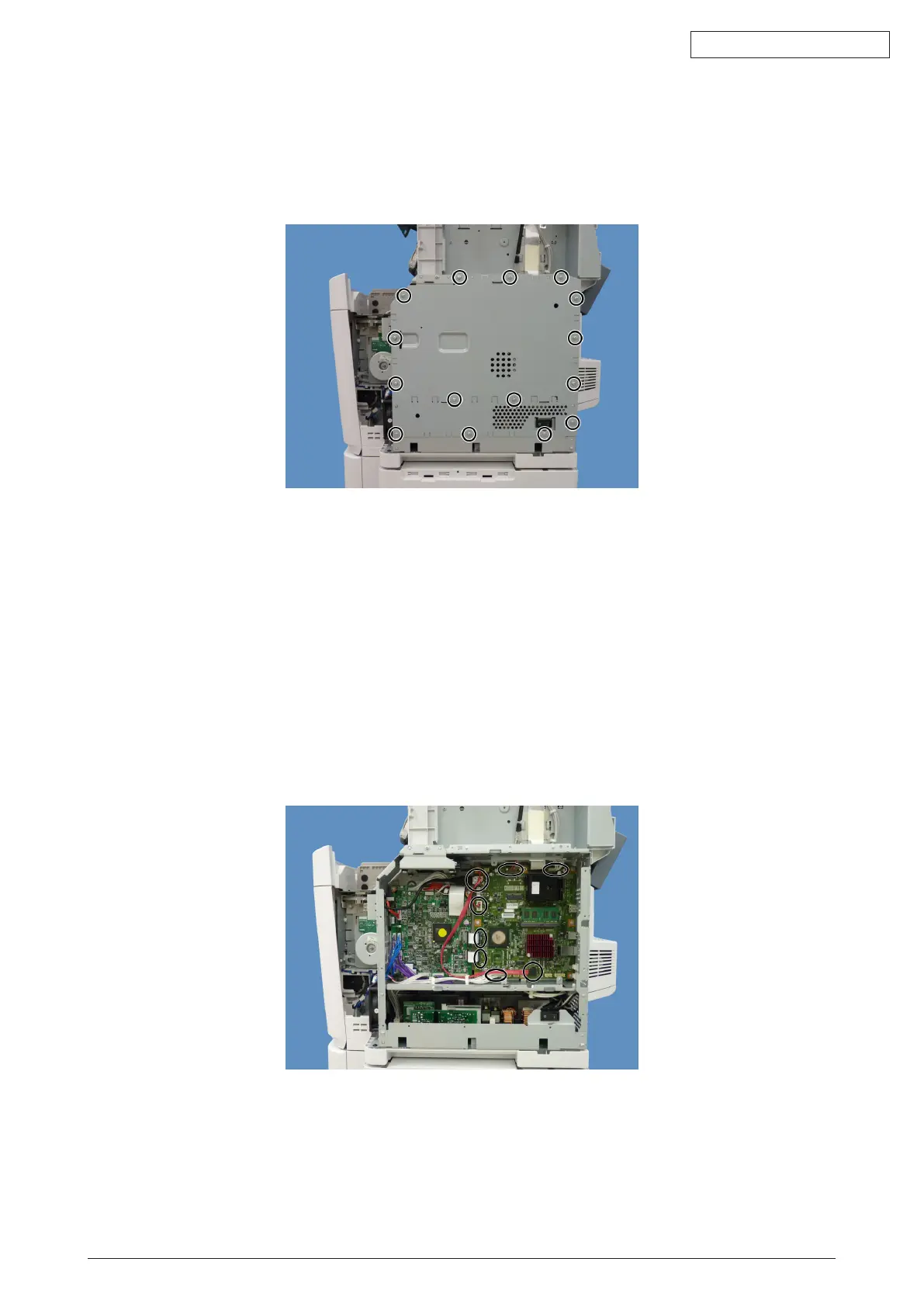

6.1.2 CU board cover
(1) Take off the right side cover.

P.6-1“6.1.1Rightsidecover”
(2) Remove15screws,andtakeofftheCUboardcover.
Fig.6-9
6.1.3 CU board
(1) Take off the right side cover.

P.6-1“6.1.1Rightsidecover”
(2) Take off the CU board cover.

P.6-3“6.1.2CUboardcover”
(3) Take off the fax unit if it’s installed.

P.6-7“6.1.6FAXunit”
(4) Unplug all the connectors and cable connected to the CU board.
Fig.6-10
