Oki MC770 - SRAM Board <For CU Board>

45584901TH Rev.1
6-6 /
Oki Data CONFIDENTIAL
6.1.5 SRAM board <for CU board>
(1) Take off the right side cover.

P.6-1“6.1.1Rightsidecover”
(2) Take off the CU board cover.

P.6-3“6.1.2CUboardcover”
(3) Take off the fax unit if it’s installed.

P.6-7“6.1.6FAXunit”

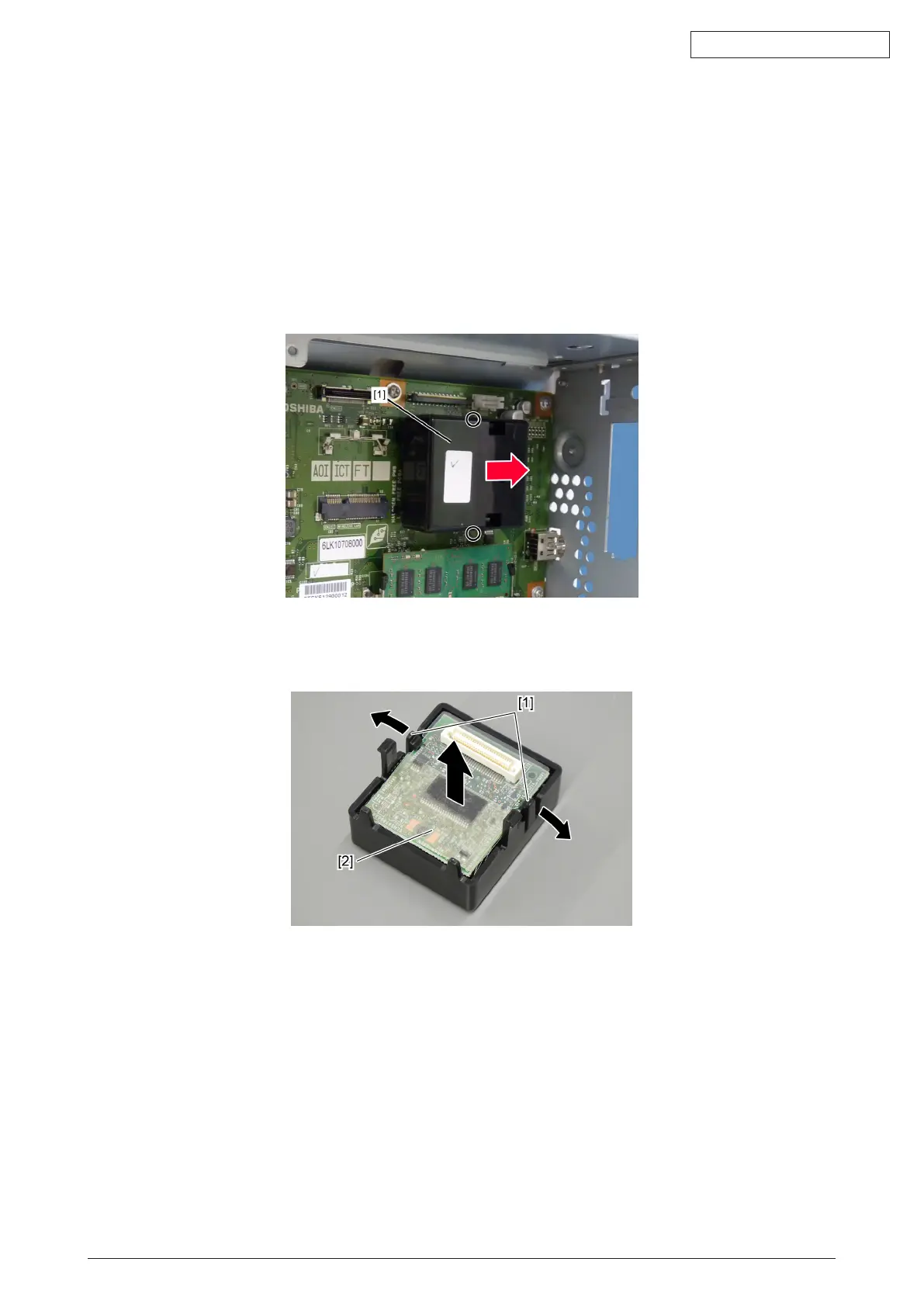

(4) Release 2 latches and take off the SRAM board for the CU board[1] with the case.
Fig.6-17
(5) Release 2 latches[1] and take off the SRAM board for CU board[2] from the case.
Fig.6-18
