45584901TH Re
v
.1
6-7 /
Oki Data CONFIDENTIAL

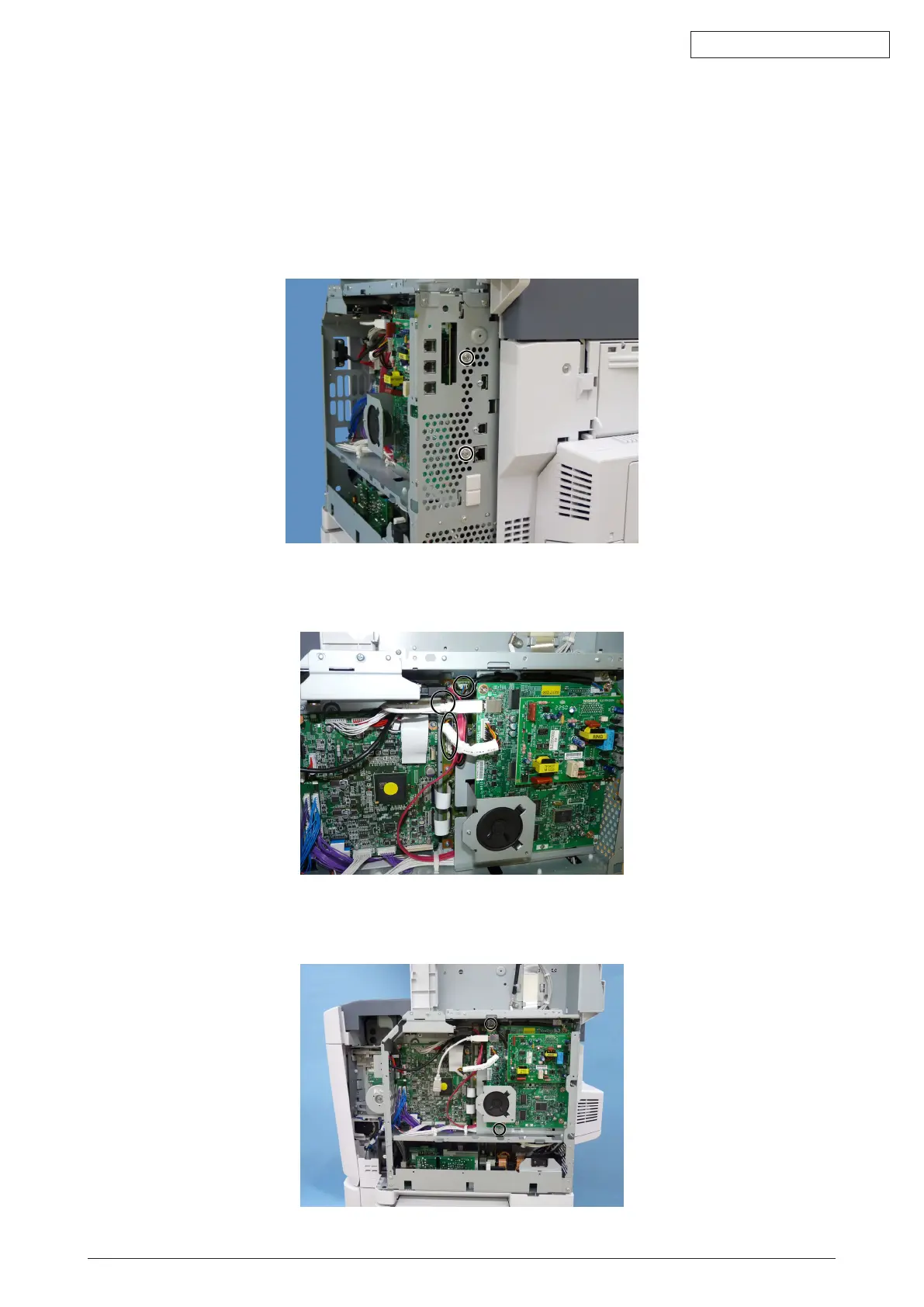

6.1.6
F
AXunit
(1)
T
ak
e off the right side cover
.
P
.
6-1
“6.1.1Rightsidecov
er”
(2)
T
ak
e off the CU board cov
er
.
P
.
6-3
“6.1.2CUboardcov
er”
(3)
Remo
v
e 2 screws
.
Fig.6-19
(4)
Unplug the connectors and cab
le connected to the CU board.
Fig.6-20
(5)
Remo
v
e2screws
,andthentakeoffthef
axunit.
Fig.6-21
