45584901TH Re
v
.1
2-6 /
Oki Data CONFIDENTIAL
2.1.6
OfineStapler
(1)
Press the [P
ow
er] button on the control panel to shut it do
wn.
(2)
T
urnthemainpowers
witchoftheequipmentoff
.
(3)
Disconnect the po
wer cab
le.
(4)
T
ak
e off the right side cover
.
P
.
6-1
“6.1.1Rightsidecov
er”
(5)
T
ak
e off the CU board cov
er
.
P
.
6-3
“6.1.2CUboardcov
er”
(6)
Disconnect the connector
.

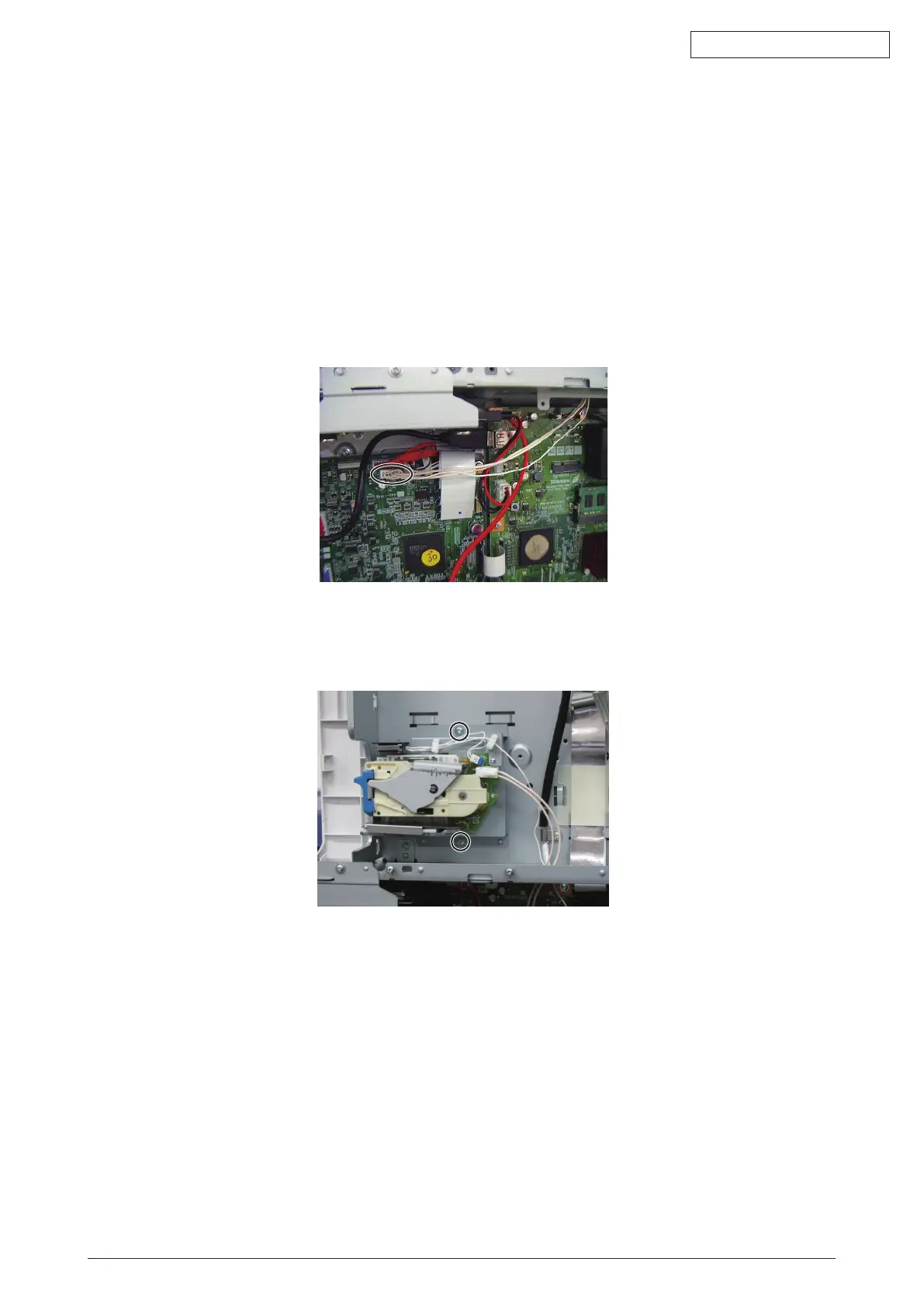

Fig.
2-13
(7)
Remo
v
e2screwsandtak
eofftheofinestapler
.
Fig.
2-14
23
25
